Left Front of Engine Compartment Components

Left Front of Engine Compartment Components

Items
1. B19B Brake Booster Vacuum Sensor (LFX) B19B Brake Booster Vacuum Sensor
2. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
4. B5LF Wheel Speed Sensor - Left Front B5LF Wheel Speed Sensor - Left Front

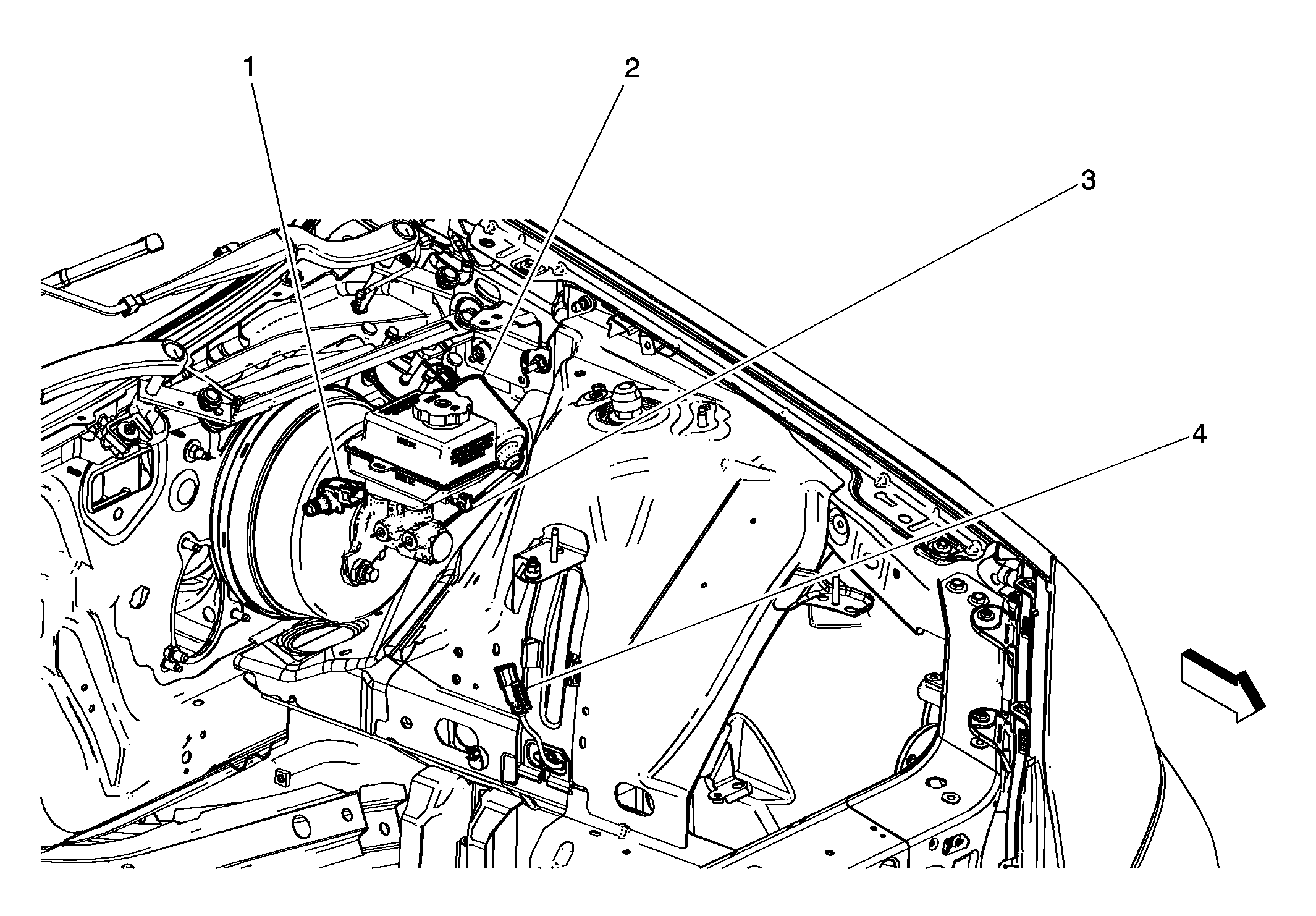

Fig 1: Left Front of Engine Compartment Components
GM3462808Courtesy of GENERAL MOTORS COMPANY
