Theft Deterrent Module Replacement

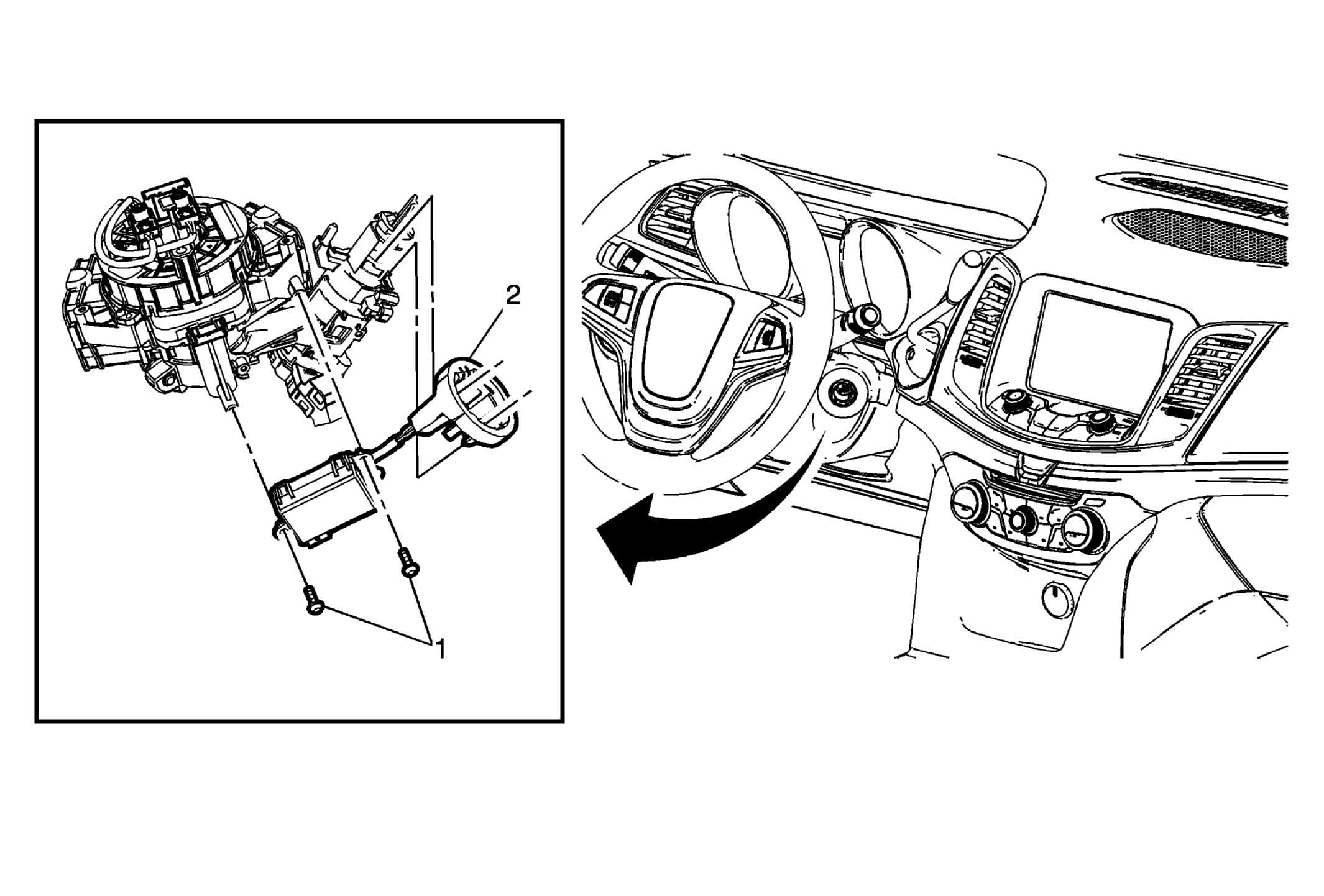

Fig 1: Theft Deterrent Module & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement
1	Theft Deterrent Module Fastener (Qty: 2)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Program the theft deterrent control module. Refer to Control Module References

Callout

Component Name

Preliminary Procedure
Remove Steering Column Lower Trim Cover. Refer to Steering Column Lower Trim Cover Replacement

Theft Deterrent Module Fastener (Qty: 2)

Theft Deterrent Module

Procedure
