Component Locator - Electrical Center Identification Views
>>
Electrical Center Identification Views
>>
X53A Fuse Block - Rear Body Bottom View
X53A Fuse Block - Rear Body Bottom View

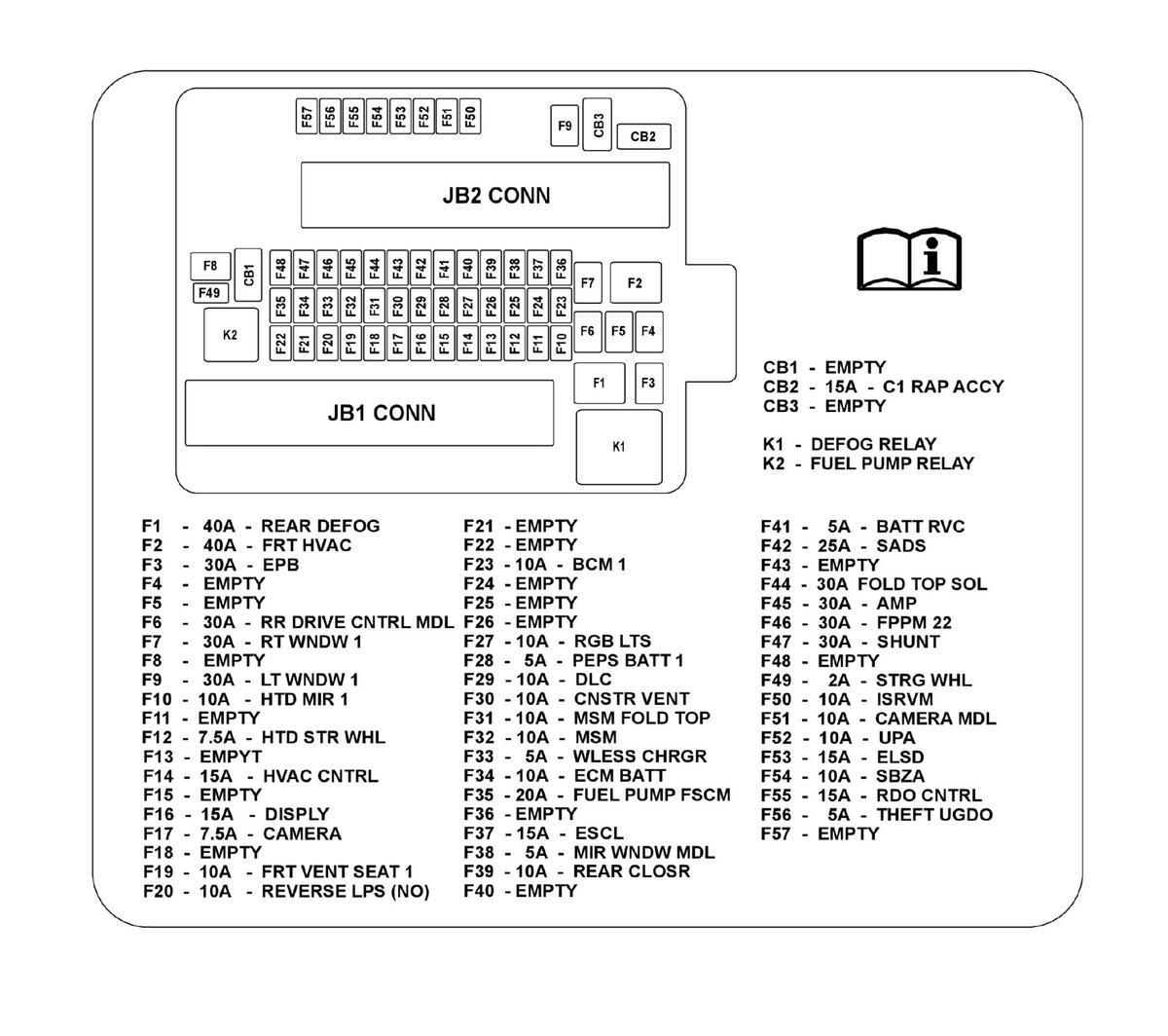

Fig 1: X53A Fuse Block - Rear Body Bottom View
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
