Installation Procedure

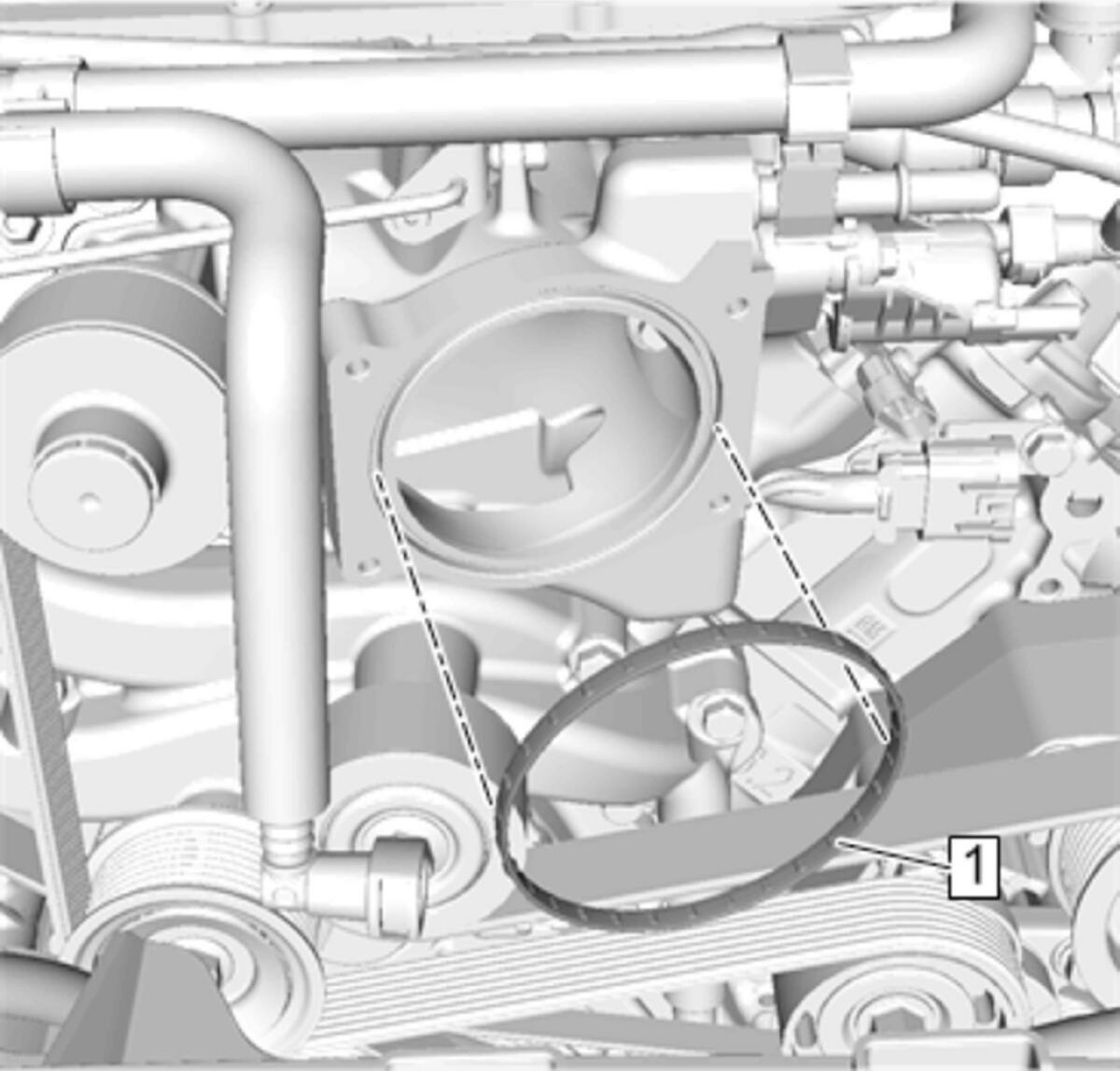

    Fig 1: Throttle Body Seal
    GM4562757Courtesy of GENERAL MOTORS COMPANY
  1. Install a NEW Throttle Body Seal (1).
  2. If re-installing the throttle body and cleaning is required. Refer to Throttle Body Cleaning

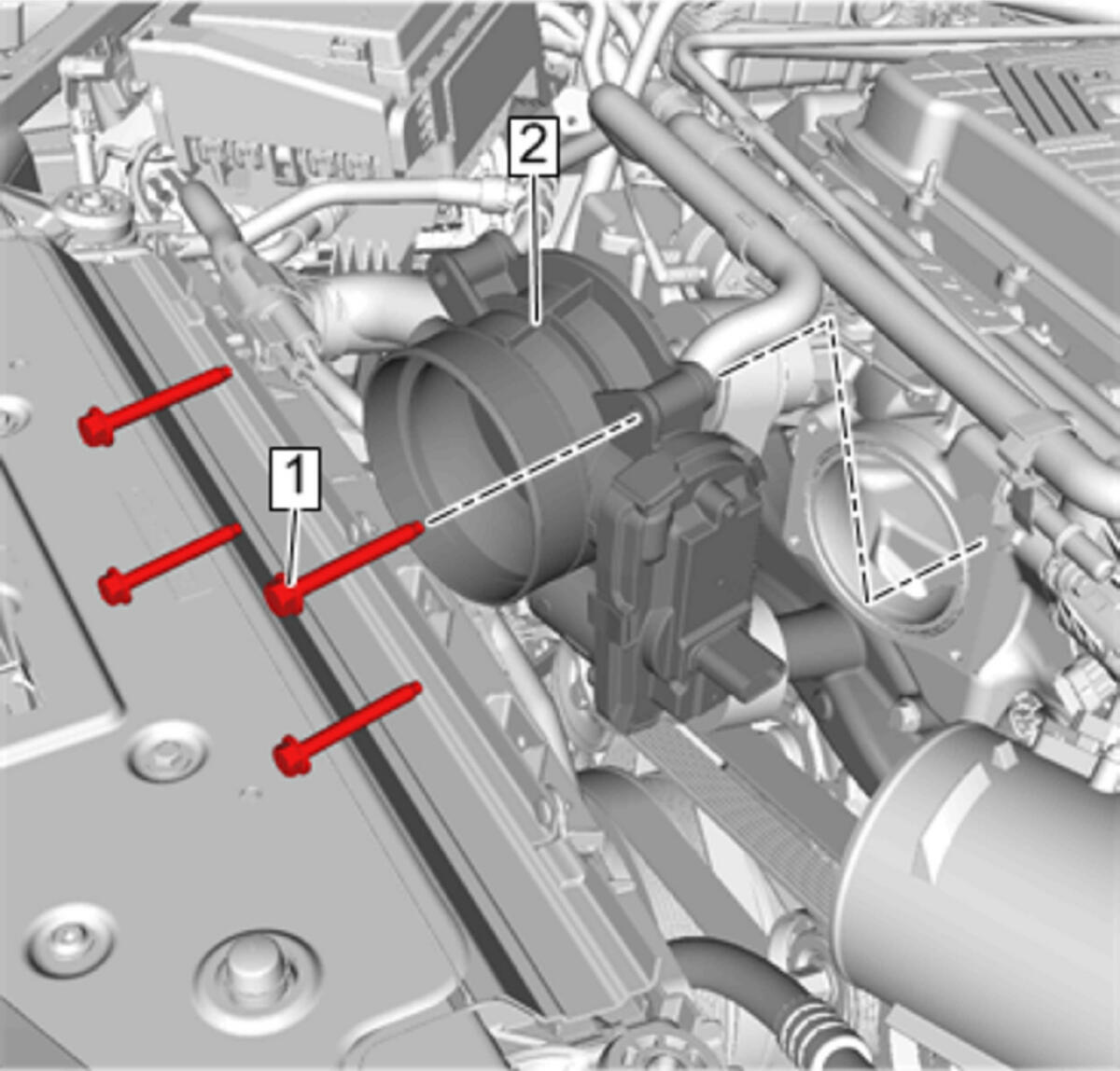

    3. Fig 2: Throttle Body And Bolts
    GM4562747Courtesy of GENERAL MOTORS COMPANY
  3. Install Throttle Body (2)
    4. CAUTION:

    Refer to Fastener Caution .

  4. Install and tighten Throttle Body Bolts (1) (Qty: 4) to 10 N.m (89 lb in)

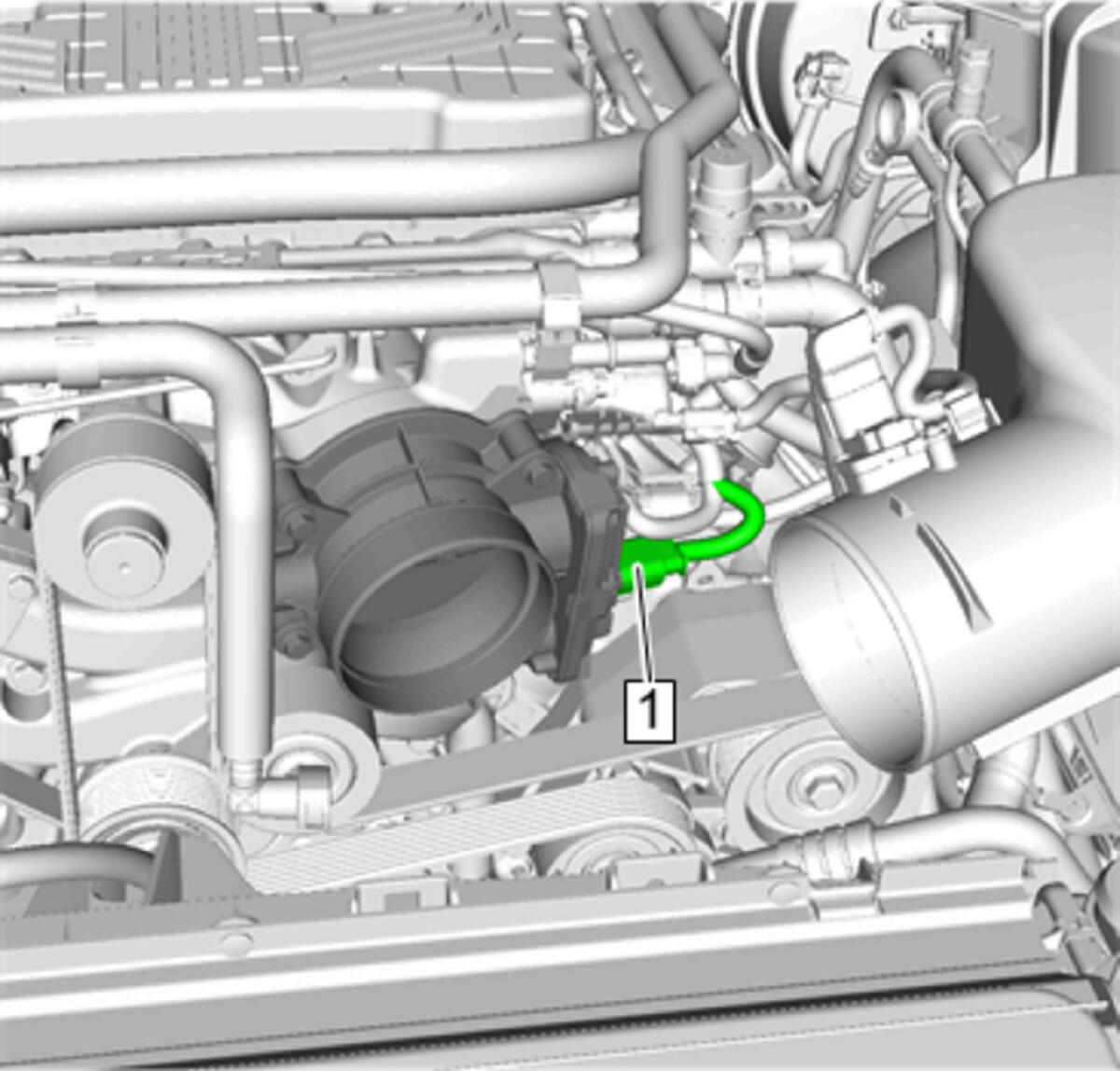

    5. Fig 3: Electrical Connector
    GM4562723Courtesy of GENERAL MOTORS COMPANY
  5. Connect Electrical Connector (1)

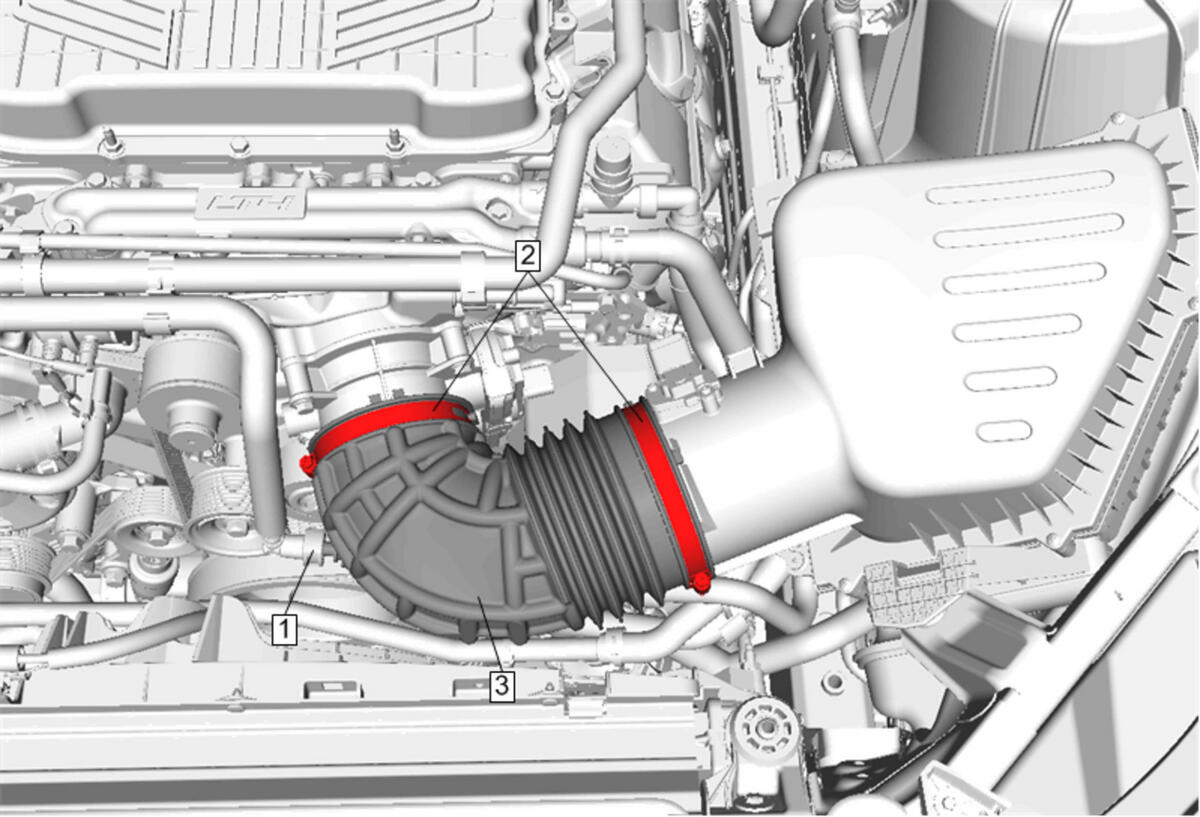

    6. Fig 4: Air Cleaner Outlet Duct
    GM4559870Courtesy of GENERAL MOTORS COMPANY
  6. Install Air Cleaner Outlet Duct (3). Refer to Air Cleaner Outlet Duct Replacement (LT4)
  7. Perform the throttle learn procedure. Refer to Throttle Body Idle Air Flow Compensation Reset
