Intake Air Splash Shield Replacement (LT4)

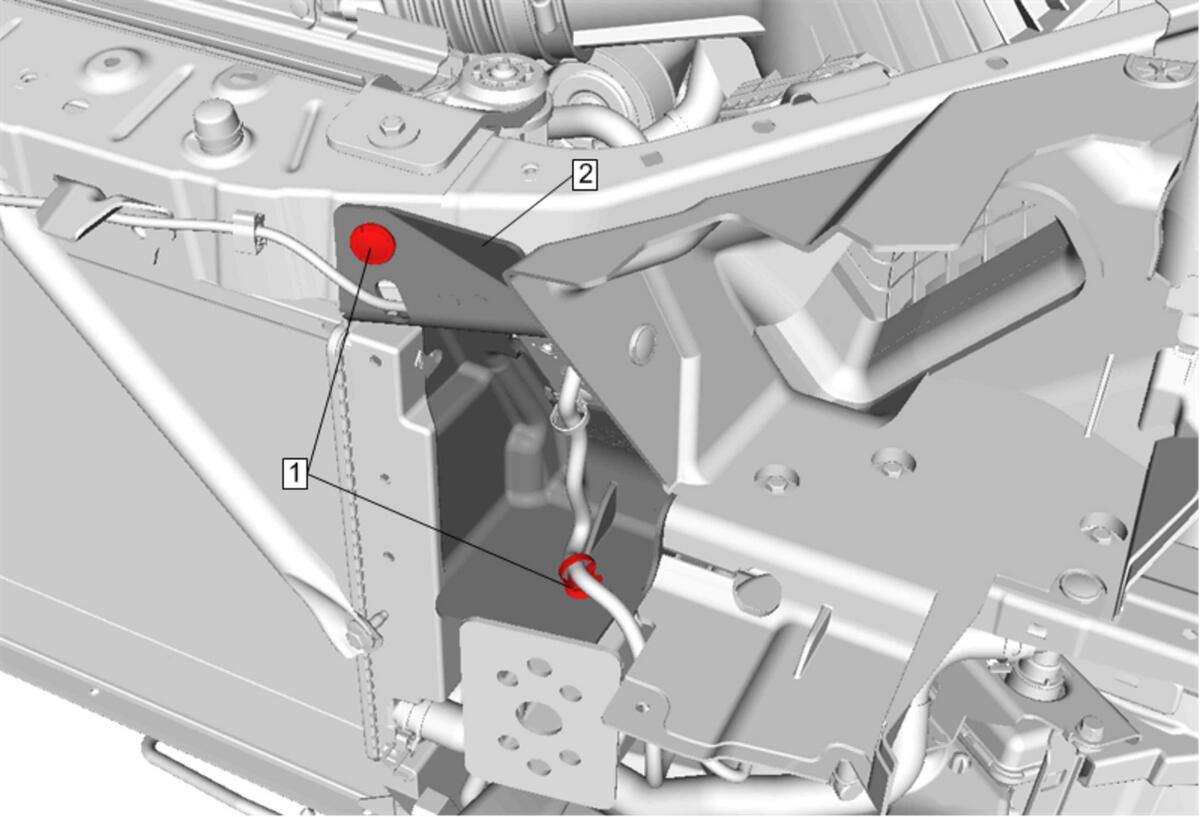

Fig 1: Intake Air Splash Shield (LT4)
GM4563015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Headlamp. Refer to Headlamp Replacement (HID)Headlamp Replacement (Halogen)
1 Intake Air Splash Shield Retainer (Qty: 2)
CAUTION:

Refer to Fastener Caution .
2 Intake Air Splash Shield
