Fuel Feed Front Hose Replacement

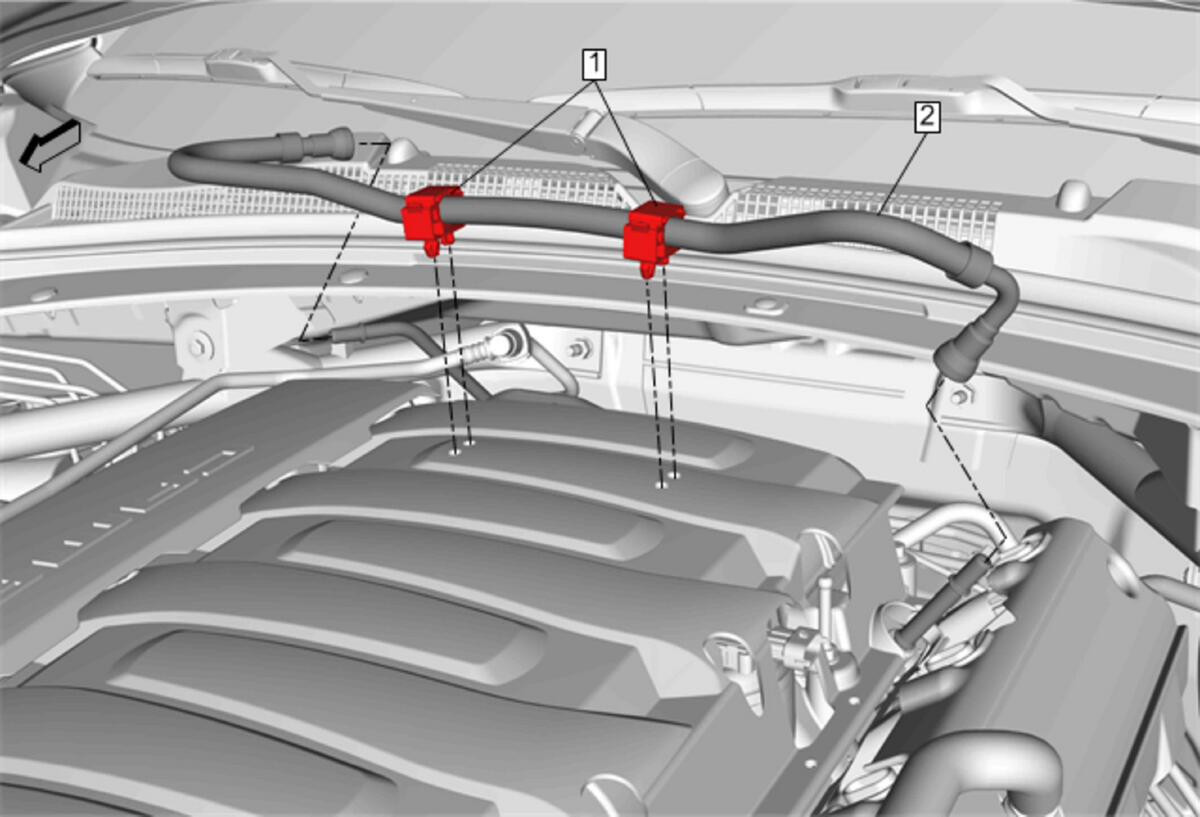

Fig 1: Fuel Feed Front Hose

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Gasoline/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedures Relieve the fuel system pressure. Refer to Fuel Pressure Relief Remove the left intake manifold cover. Refer to Intake Manifold Cover Replacement (Left)
1	Fuel Feed Hose Clip (Qty: 2) Procedure Remove the fuel feed hose clips from the upper intake manifold cover.
2	Fuel Feed Front Hose Procedure Disconnect Fuel Feed Front Hose @ Fuel Feed Pipe. Refer to Metal Collar Quick Connect Fitting Service

Callout

Component Name

WARNING:

WARNING:

Preliminary Procedures

Relieve the fuel system pressure. Refer to Fuel Pressure Relief
Remove the left intake manifold cover. Refer to Intake Manifold Cover Replacement (Left)

Fuel Feed Hose Clip (Qty: 2)
Procedure
Remove the fuel feed hose clips from the upper intake manifold cover.

Fuel Feed Front Hose
Procedure
Disconnect Fuel Feed Front Hose @ Fuel Feed Pipe. Refer to Metal Collar Quick Connect Fitting Service
