Head Up Display Switch Replacement

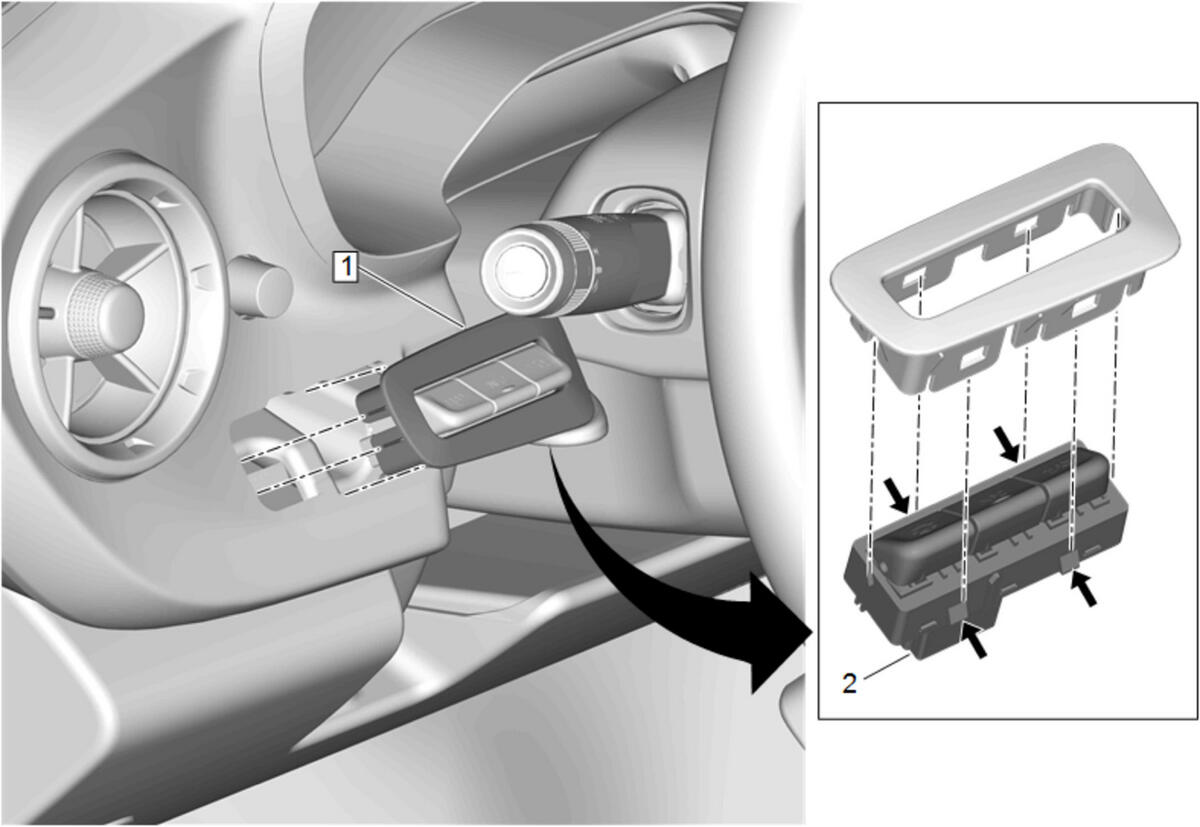

Fig 1: Head Up Display Switch
GM4178713Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Instrument Panel Cluster Trim Plate. Refer to Instrument Panel Cluster Trim Plate Replacement
1 Head-Up Display Switch
Procedure
Release the tabs and remove the switch.
