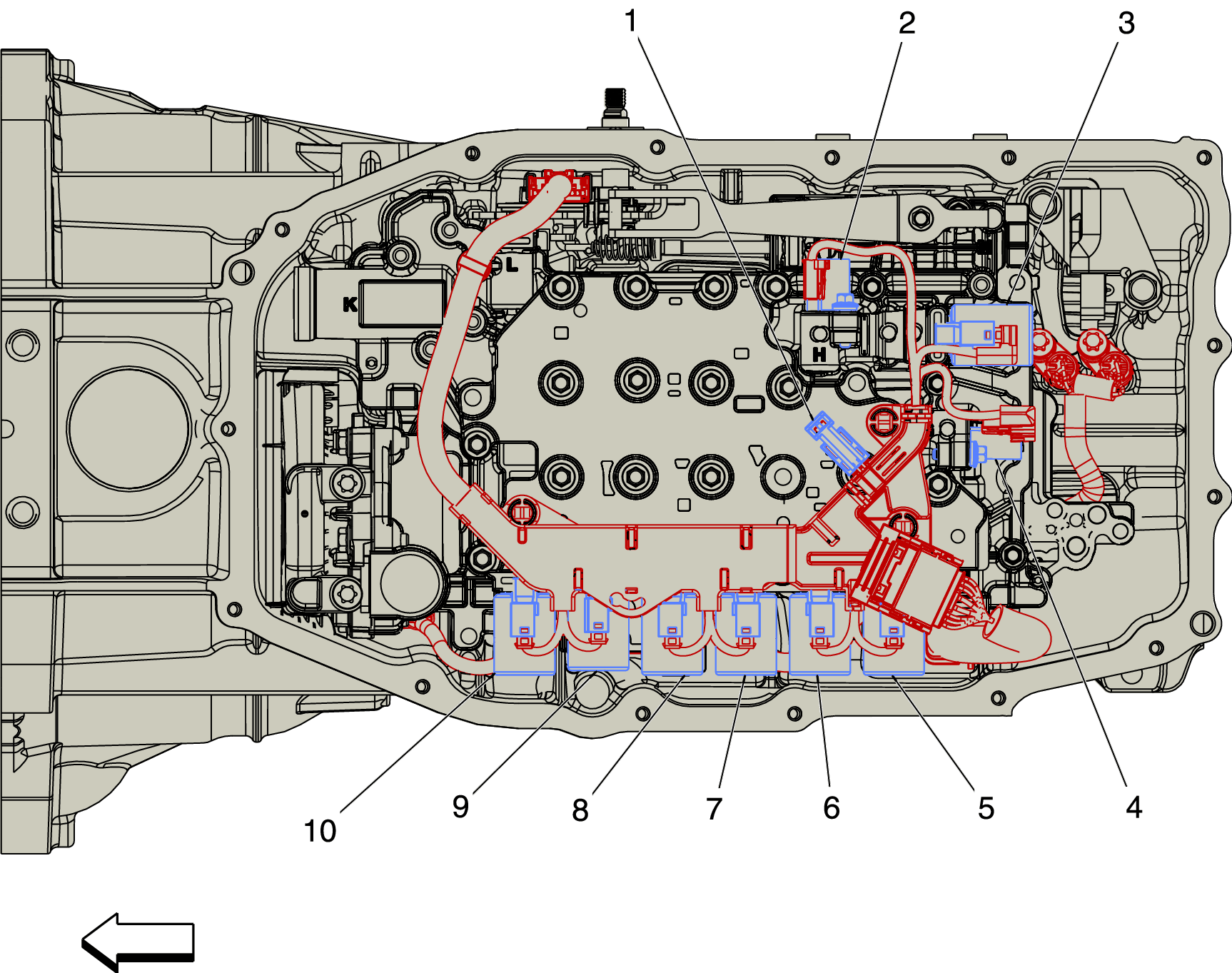

Automatic Transmission Valve Body Components (M5T or M5U)
Automatic Transmission Valve Body Components (M5T or M5U)
| Items |
|---|
| 1: B13 Transmission Fluid Temperature Sensor (MX0) |
| 2: Q77H Transmission Control Solenoid Valve 8 (MX0 or MGL) Q77H Transmission Control Solenoid Valve 8 |
| 3: Q77F Transmission Control Solenoid Valve 6 (MX0 or MGL) Q77F Transmission Control Solenoid Valve 6 |
| 4: Q77J Transmission Control Solenoid Valve 9 (MX0) Q77J Transmission Control Solenoid Valve 9 |
| 5: Q77B Transmission Control Solenoid Valve 2 (MX0 or MGL) Q77B Transmission Control Solenoid Valve 2 |
| 6: Q77A Transmission Control Solenoid Valve 1 (MX0 or MGL) Q77A Transmission Control Solenoid Valve 1 |
| 7: Q77E Transmission Control Solenoid Valve 5 (MX0 or MGL) Q77E Transmission Control Solenoid Valve 5 |
| 8: Q77C Transmission Control Solenoid Valve 3 (MX0 or MGL) Q77C Transmission Control Solenoid Valve 3 |
| 9: Q77D Transmission Control Solenoid Valve 4 (MX0 or MGL) Q77D Transmission Control Solenoid Valve 4 |
| 10: Q77G Transmission Control Solenoid Valve 7 (MX0 or MGL) Q77G Transmission Control Solenoid Valve 7 |
