Remote Control Door Lock Receiver Replacement (Convertible)
Remote Control Door Lock Receiver Replacement (Convertible)

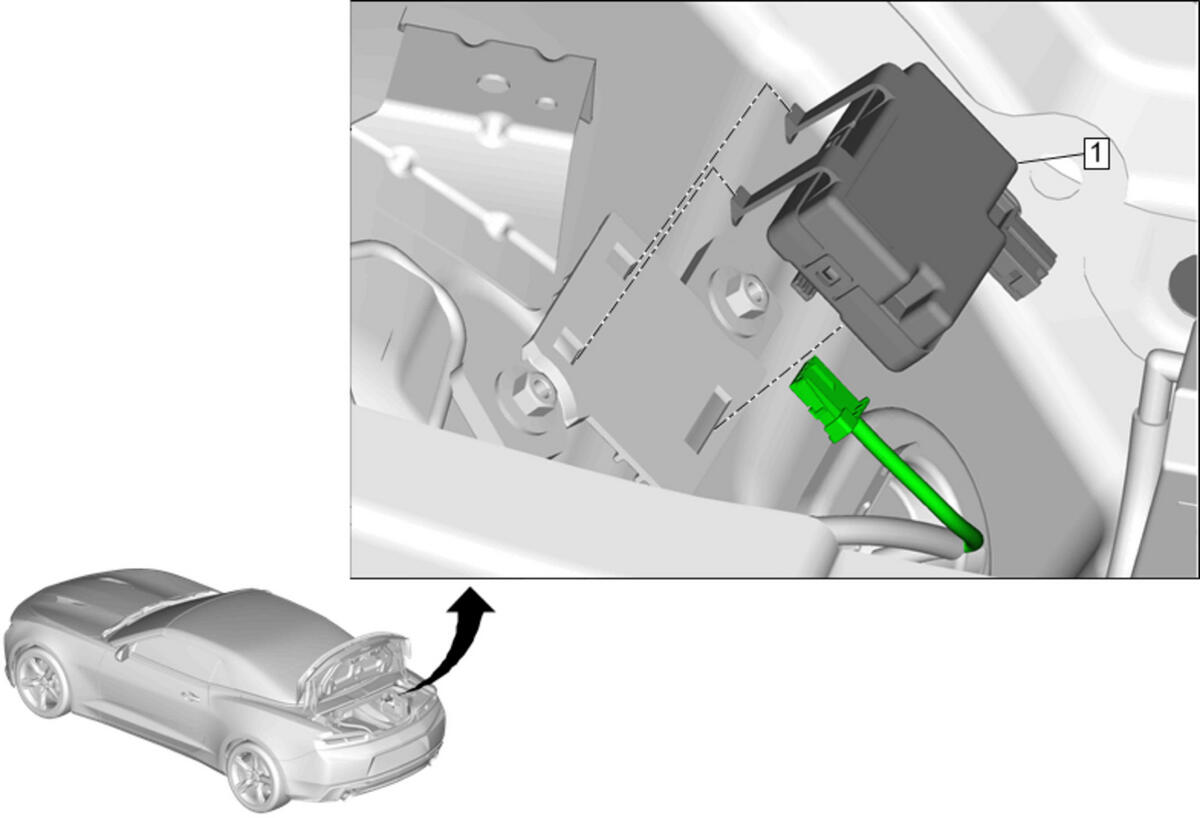

Fig 1: Remote Control Door Lock Receiver (Convertible)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Place the folding top in the full closed position.
1
Remote Control Door Lock Receiver
Procedure
Disconnect the electrical connector.
Release the retaining tabs.
