Rear Seat Belt Buckle Replacement

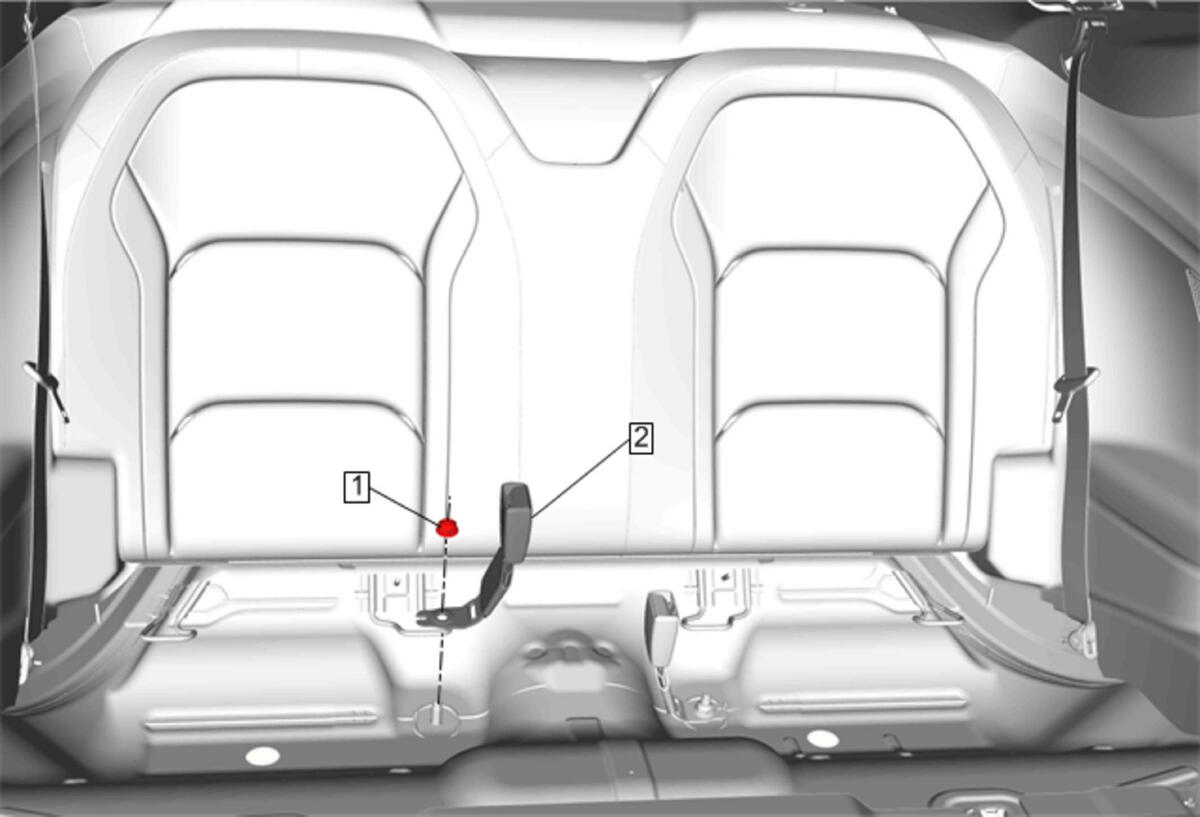

Fig 1: Rear Seat Belt Buckle
GM4140502Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Rear Seat Cushion Removal and Installation
1 Rear Seat Belt Buckle Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
45 N.m (33 lb ft)
2 Rear Seat Belt Buckle
