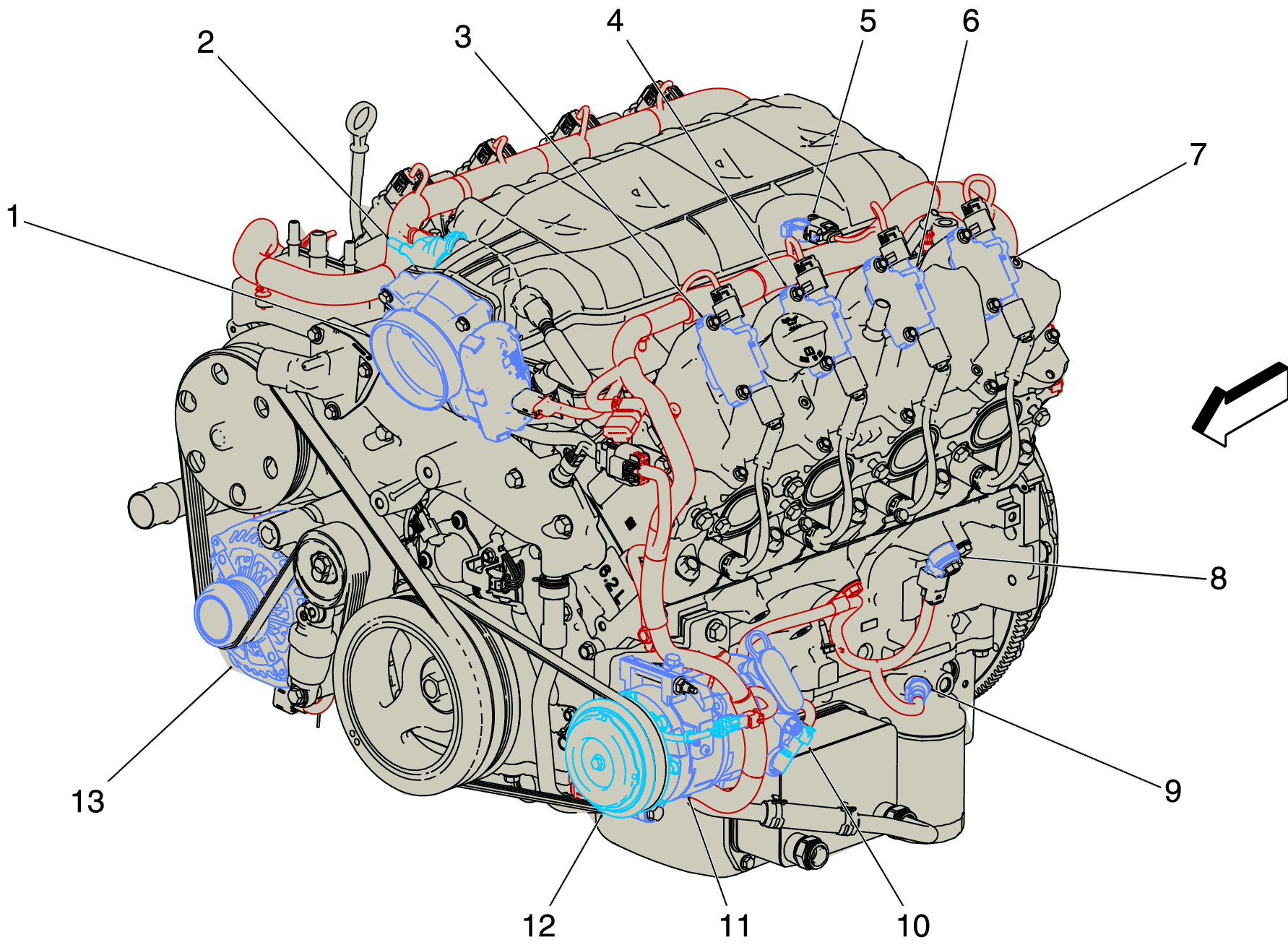

Engine Components - Left Front (LT1, LT4)
Engine Components - Left Front (LT1, LT4)
| Items |
|---|
| 1: Q38 Throttle Body Q38 Throttle Body (LT1)Q38 Throttle Body (LT4) |
| 2: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve |
| 3: T8A Ignition Coil 1 T8A Ignition Coil 1 (LT1)T8A Ignition Coil 1 (LT4) |
| 4: T8C Ignition Coil 3 T8C Ignition Coil 3 (LT1)T8C Ignition Coil 3 (LT4) |
| 5: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LT1) |
| 6: T8E Ignition Coil 5 (LGX or LT1 or LT4) T8E Ignition Coil 5 (LT1)T8E Ignition Coil 5 (LT4) |
| 7: T8G Ignition Coil 7 (LT1 or LT4) T8G Ignition Coil 7 (LT1)T8G Ignition Coil 7 (LT4) |
| 8: B68A Knock Sensor 1 B68A Knock Sensor 1 |
| 9: B36 Engine Oil Temperature Sensor (LT1/LT4) B36 Engine Oil Temperature Sensor |
| 10: Q46 A/C Compressor Solenoid Valve Q46 A/C Compressor Solenoid Valve |
| 11: G1 A/C Compressor |
| 12: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch (LT1)Q2 A/C Compressor Clutch (LT4) |
| 13: G13 Generator G13 Generator X1G13 Generator X2 |
