X53A Fuse Block - Rear Body Top View

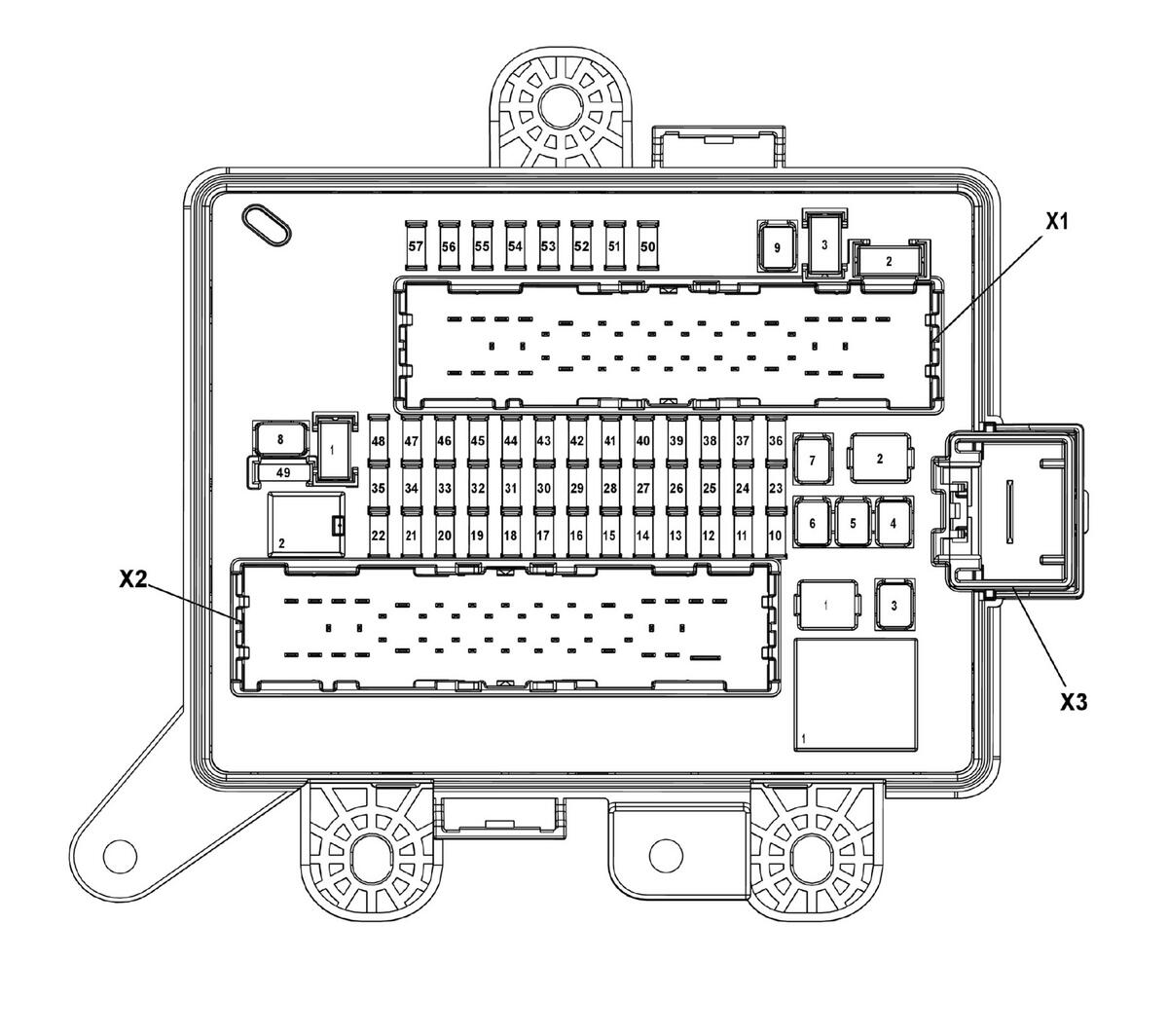

Fig 1: X53A Fuse Block - Rear Body Top View
GM4162880Courtesy of GENERAL MOTORS COMPANY
X53A FUSE BLOCK - REAR BODY FUSE AND RELAY IDENTIFICATION LEGEND

No. Device Label Name Device Assigned Name Rating Description
1 REAR DEFOG F1RA 40A
  • E18 Rear Defogger Grid (-CM8)
  • R14L Rear Window Defogger Noise Filter - Left (CM8)
2 FT HVAC F2RA 40A
  • M8 Blower Motor
3 EPB F3RA 30A
  • K83 Park Brake Control Module
4 EMPTY F4RA -
  • Not Used
5 EMPTY F5RA -
  • Not Used
6 RR DRIVE CNTRL MDL F6RA 30A
  • Not Used
7 RT WNDW 1 F7RA 30A
  • M74P Window Motor - Passenger
  • M74RR Window Motor - Right Rear (CM8)
8 EMPTY F8RA -
  • Not Used
9 LT WNDW 1 F9RA 30A
  • M74D Window Motor - Driver
  • M74LR Window Motor - Left Rear (CM8)
10 HTD MIR 1 F10RA 10A
  • E17D Outside Rearview Mirror Glass - Driver
  • E17P Outside Rearview Mirror Glass - Passenger
11 EMPTY F11RA -
  • Not Used
12 HTD STR WHL F12RA 7.5A
  • K32 Steering Wheel Heating Control Module
13 EMPTY F13RA -
  • Not Used
14 HVAC CNTRL F14RA 15A
  • K33 HVAC Control Module
15 EMPTY F15RA -
  • Not Used
16 DISPLY F16RA 15A
  • P16 Instrument Cluster
  • P17 Info Display Module
  • P29 Head-Up Display
  • F49RA Fuse
17 CAMERA F17RA 7.5A
  • B87 Rearview Camera (UVC)
18 EMPTY F18RA -
  • Not Used
19 FRT VENT SEAT 1 F19RA 10A
  • M73A Seat Blower Motor - Driver Back (KQV)
  • M73B Seat Blower Motor - Passenger Back (KQV)
  • M73C Seat Blower Motor - Driver Cushion (KQV)
  • M73D Seat Blower Motor - Passenger Cushion (KQV)
20 REVERSE LPS (NO) F20RA 10A
  • A10 Inside Rearview Mirror
  • E83 Backup/Rear Fog Lamp (T90)
21 EMPTY F21RA -
  • Not Used
22 EMPTY F22RA -
  • Not Used
23 BCM 1 F23RA 10A
  • K9 Body Control Module
24 EMPTY F24RA -
  • Not Used
25 EMPTY F25RA -
  • Not Used
26 EMPTY F26RA -
  • Not Used
27 RGB LTS F27RA 10A
  • K126 Accent Lamp Control Module
28 PEPS BATT 1 F28RA 5A
  • K84 Keyless Entry Control Module
29 DLC F29RA 10A
  • X84 Data Link Connector
30 CNSTR VENT F30RA 10A
  • Q13 Evaporative Emission Vent Solenoid Valve
31 MSM FOLD TOP F31RA 10A
  • K23 Folding Top Control Module
32 MSM F32RA 10A
  • K40D Seat Memory Control Module - Driver
33 WLESS CHRGR F33RA 5A
  • T22 Mobile Device Wireless Charger Module (K4C)
34 ECM BATT F34RA 10A
  • K20 Engine Control Module
35 FUEL PUMP FSCM F35RA 20A
  • K38 Chassis Control Module (LTG/LGX+NPP/LT1)
  • K111 Fuel Pump Driver Control Module (LGX-NPP)
36 EMPTY F36RA -
  • Not Used
37 ESCL F37RA 15A
  • K60 Steering Column Lock Module
38 MIR WNDW MDL F38RA 5A
  • S79D Window Switch-Driver
39 REAR CLOSR F39RA 10A
  • KR95B Rear Compartment Lid Unlatch Relay
40 EMPTY F40RA -
  • Not Used
41 BATT RVC F41RA 5A
  • K9 Body Control Module
42 SADS F42RA 25A
  • K19 Suspension Control Module
43 EMPTY F43RA -
  • Not Used
44 FOLD TOP SOL F44RA 30A
  • K23 Folding Top Control Module
45 AMP F45RA 30A
  • T3 Audio Amplifier
46 FPPM 22 F46RA 30A
  • Not Used
47 SHUNT F47RA 30A
  • F14RA
  • F15RA
  • F16RA Fuses (-VPH)
  • KR104B Battery Saver Relay 2 (VPH)
48 EMPTY F48RA -
  • Not Used
49 STRG WHL F49RA 2A
  • S70R Steering Wheel Controls Switch - Right
50 ISRVM F50RA 10A
  • A10 Inside Rearview Mirror
51 CAMERA MDL F51RA 10A
  • Not Used
52 UPA F52RA 10A
  • K182 Parking Assist Control Module (UD7)
53 ELSD F53RA 15A
  • K38 Chassis Control Module
54 SBZA F54RA 10A
  • B218L Side Object Sensor Module - Left (UKC)
  • B218R Side Object Sensor Module - Right (UKC)
55 RADIO CNTRL F55RA 15A
  • A11 Radio
  • K74 Human Machine Interface Control Module
  • X83 Auxiliary Audio Input
56 THEFT UGDO F56RA 5A
  • S25 Garage Door Opener (UG1)
57 EMPTY F57RA -
  • Not Used
Circuit Breakers
1 EMPTY F1RB Circuit Breaker -
  • Not Used
2 C1 RAP ACCY F2RB Circuit Breaker 15A
  • KR76 Retained Accessory Power Relay
3 EMPTY F3RB Circuit Breaker -
  • Not Used
Relays
K1 REAR DEFOG KR5 Rear Defogger Relay -
  • F1RA
  • F10RA
K2 FUEL PUMP RELAY KR23A Fuel Pump Relay -
  • Not Used
Important: Relays listed below are non-serviceable Printed Circuit Board (PCB) relays and are internal to the block.
- - KR40 Backup Lamp Relay -
  • F20RA
- - KR76 Retained Accessory Power Relay -
  • F33RA
  • X80H Accessory Power Receptacle - Center Console
- - KR95B Rear Compartment Lid Unlatch Relay -
  • M40 Rear Compartment Lid Latch
- - KR104A Battery Saver Relay 1 -
  • F50RA
  • F51RA
  • F52RA
  • F53RA
  • F54RA
  • F55RA
  • F56RA F57RA
- - KR104B Battery Saver Relay 2 -
  • F14RA
  • F15RA
  • F16RA
- - KR132 Fuel Fill Door Lock Relay -
  • M97 Fuel Fill Door Lock Actuator (N08)
