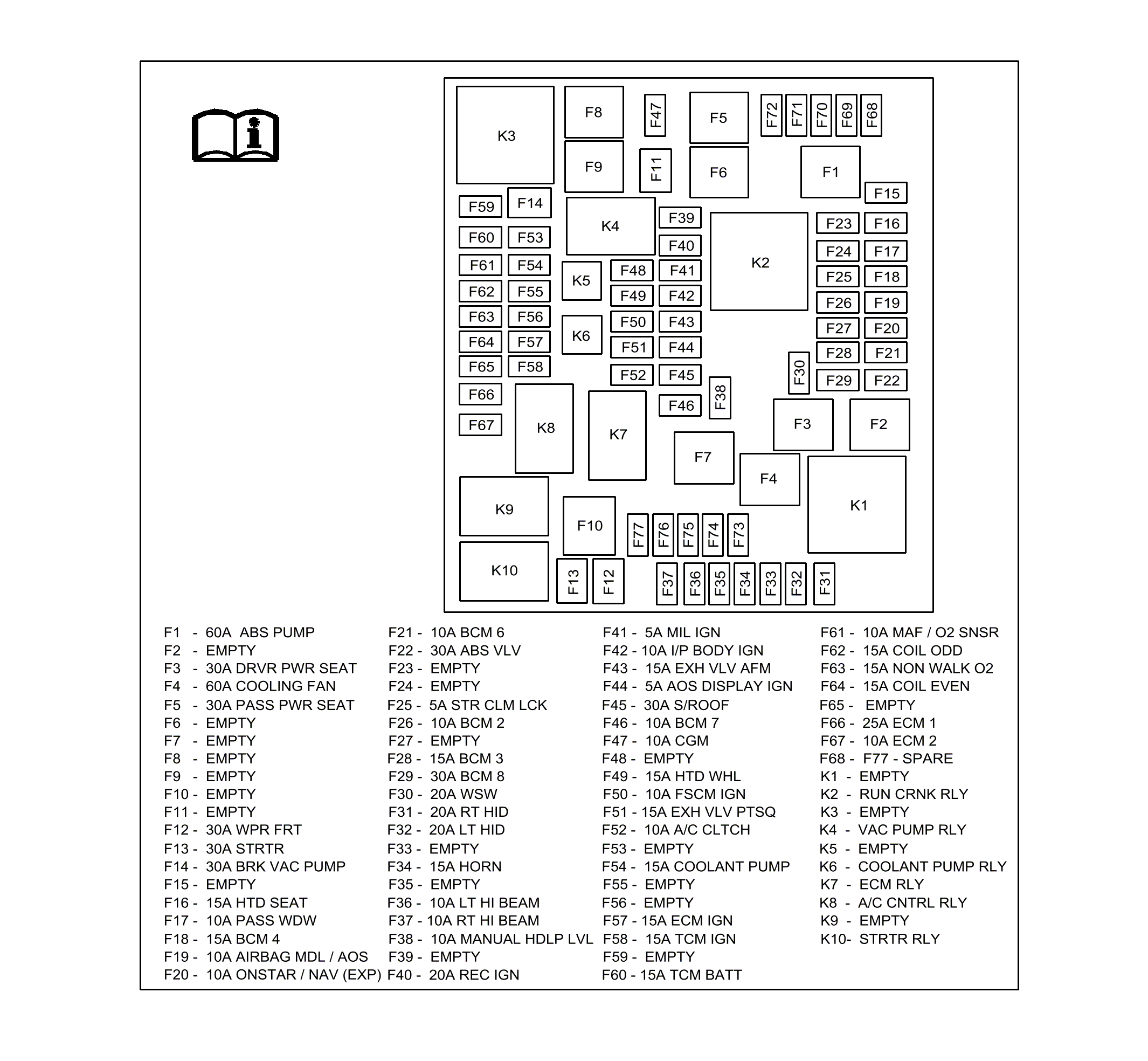

Home >> Chevrolet >> 2017 >> Camaro SS, 2D Convertible, Automatic Trans >> Repair and Diagnosis >> Quick Lookups >> Electrical Component Locations >> Component Locator - Electrical Center Identification Views >> Electrical Center Identification Views >> X50A Fuse Block - Underhood Label
