Installation Procedure

    Fig 1: Starter Solenoid Cable
    GM4282789Courtesy of GENERAL MOTORS COMPANY
  1. Install Starter Solenoid Cable (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Fastener (1) and tighten 15 N.m (11 lb ft)
  3. Connect Electrical Connector (3)
    4. Fig 2: Generator Bolt
    GM4282790Courtesy of GENERAL MOTORS COMPANY
  4. Install Generator (5)
  5. Install Engine Wiring Harness Bracket (4)
  6. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  7. Install Stud (3) and tighten 9 N.m (80 lb in)
  8. Install Generator Nut (2) and tighten 22 N.m (16 lb ft)

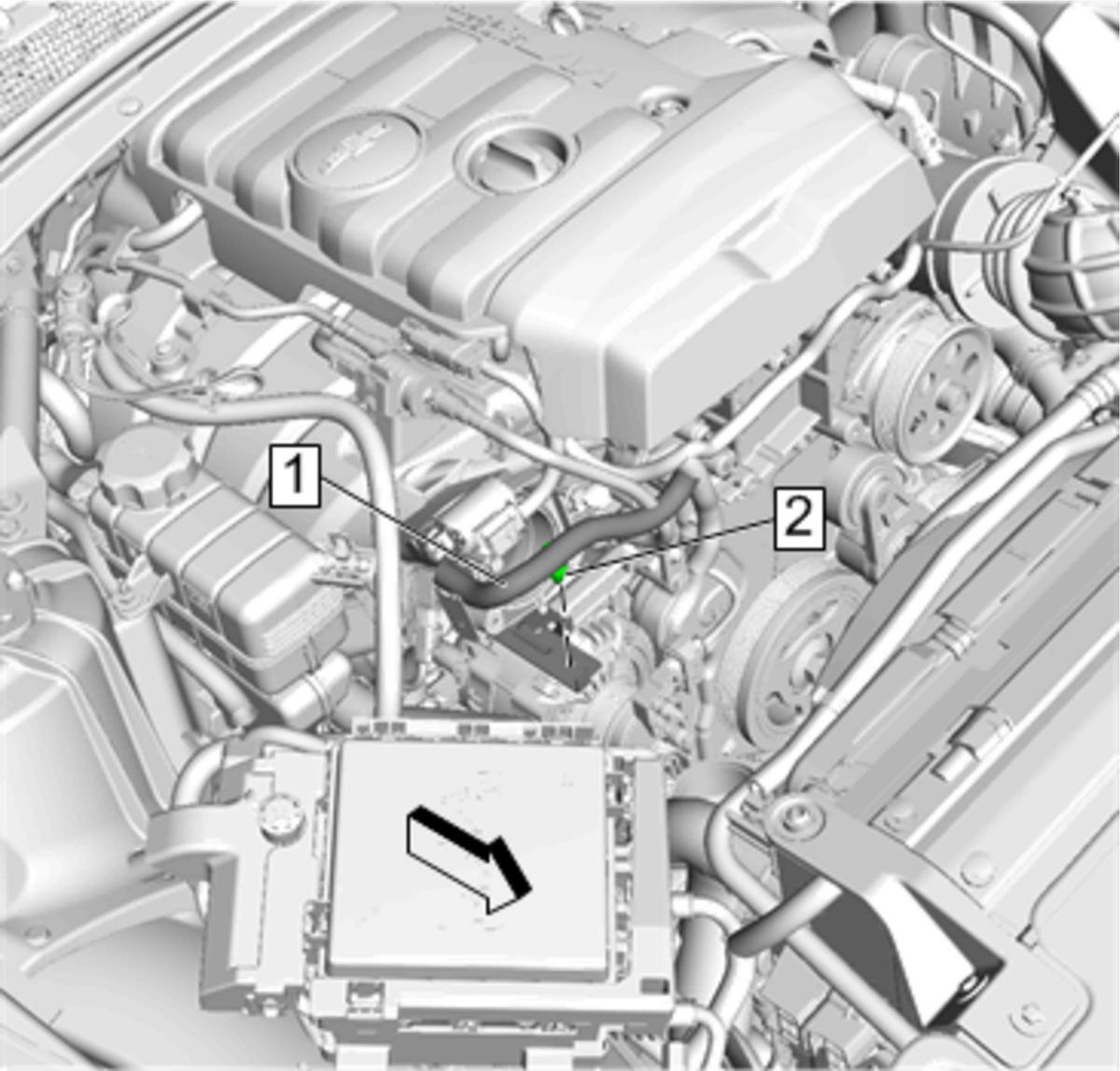

    9. Fig 3: Wiring Harness Retainer
    GM4282788Courtesy of GENERAL MOTORS COMPANY
  9. Engage Wiring Harness Retainer (2)

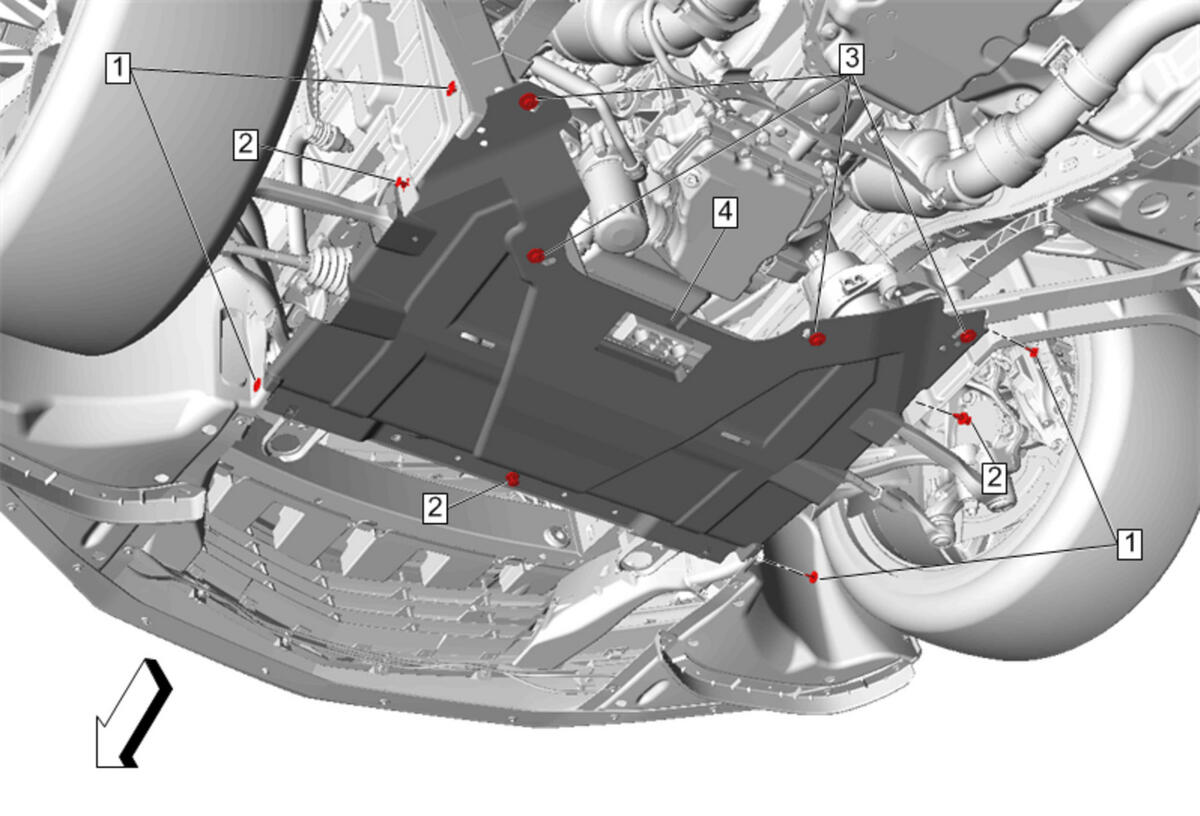

    10. Fig 4: Front Compartment Lower Noise Shield
    GM4181349Courtesy of GENERAL MOTORS COMPANY
  10. Install Front Compartment Lower Noise Shield (4)Front Compartment Lower Noise Shield Replacement (Coupe - LGX, LTG)

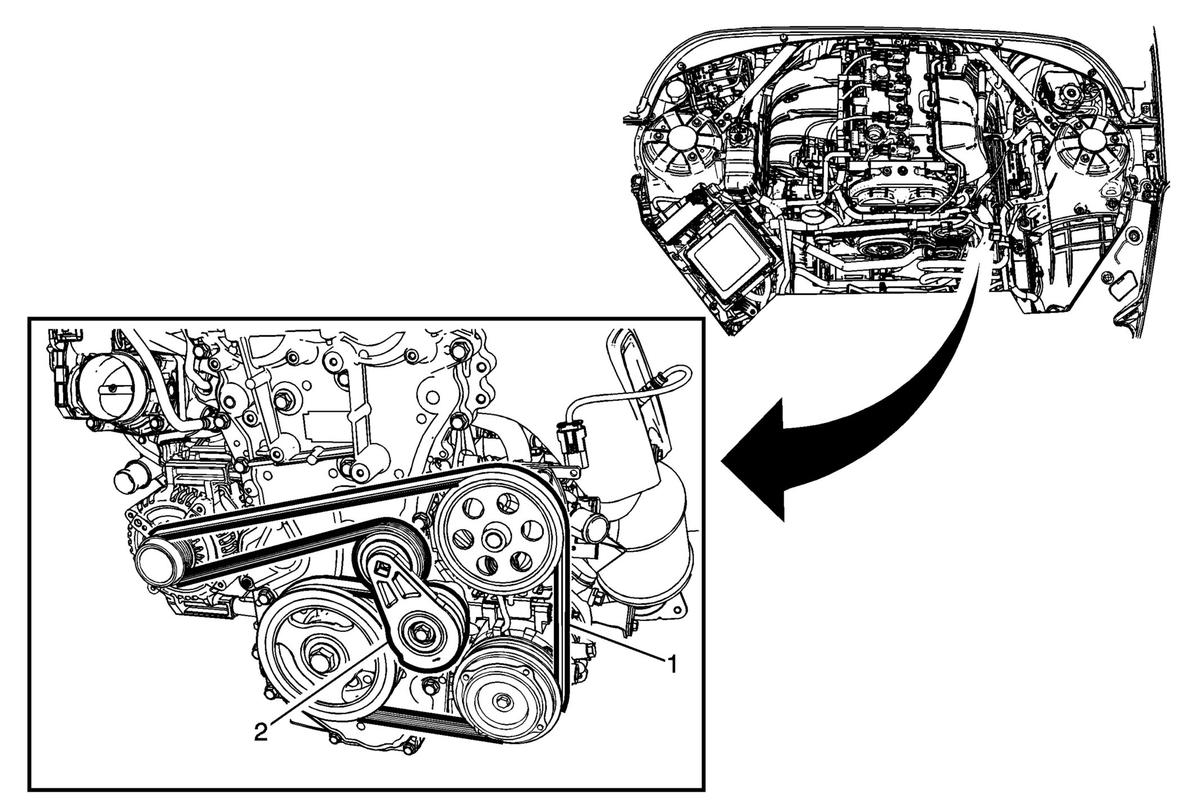

    11. Fig 5: Drive Belt
    GM2827498Courtesy of GENERAL MOTORS COMPANY
  11. Install the drive belt.(1)Drive Belt Replacement

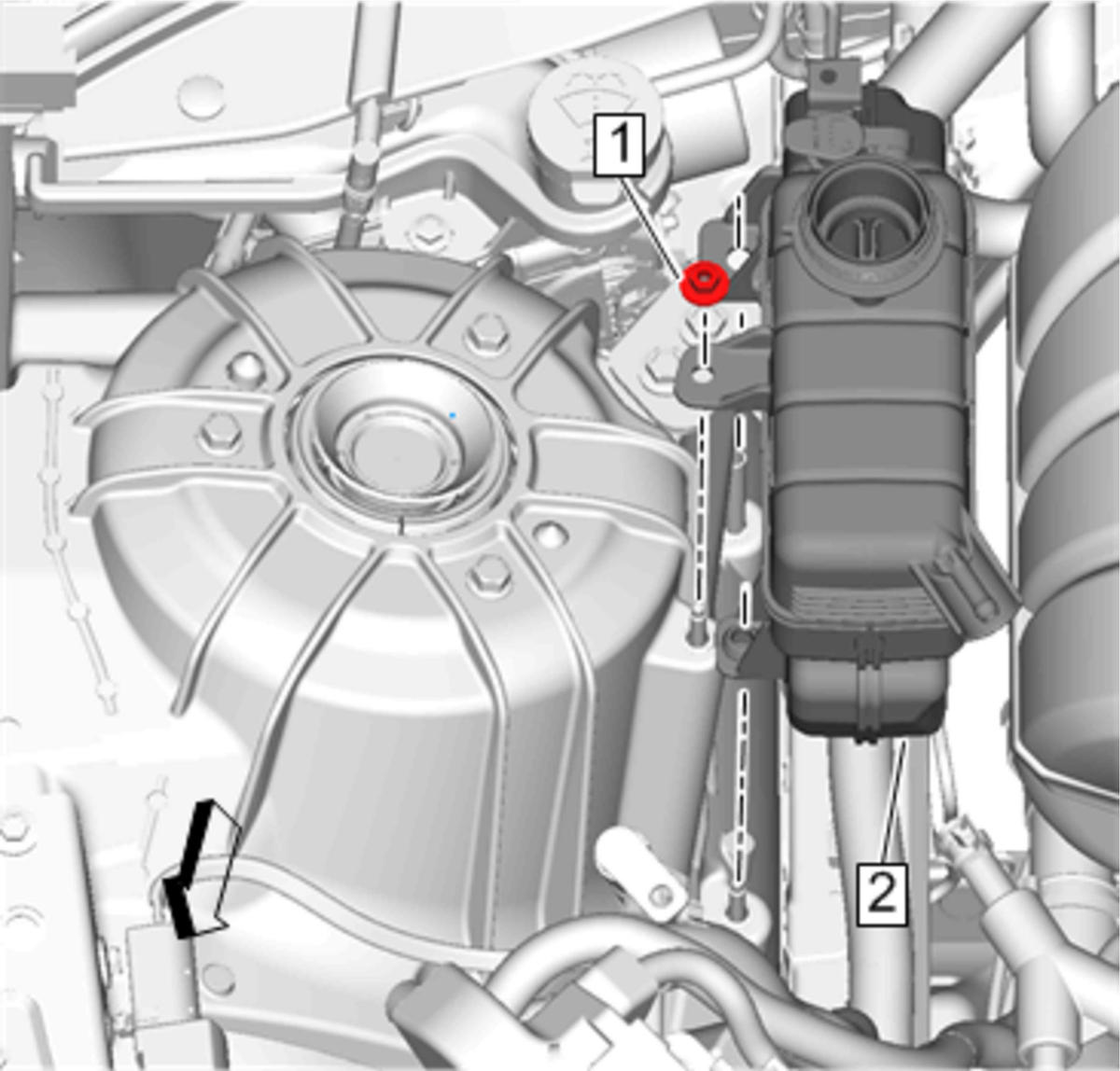

    12. Fig 6: Radiator Surge Tank
    GM4279699Courtesy of GENERAL MOTORS COMPANY
  12. Radiator Surge Tank (2)Radiator Surge Tank Replacement (LTG)

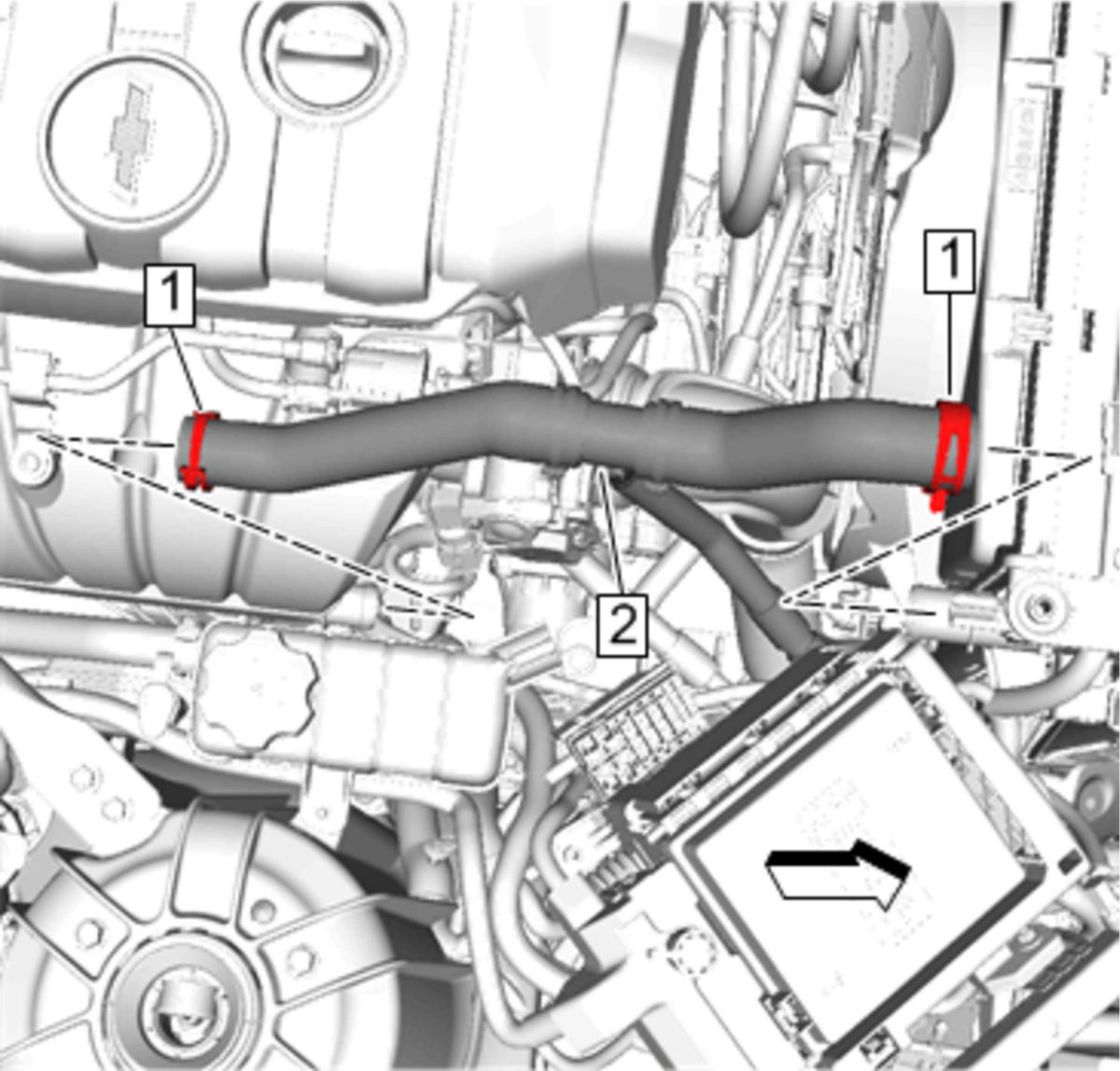

    13. Fig 7: Radiator Inlet Hose
    GM4282949Courtesy of GENERAL MOTORS COMPANY
  13. Install the radiator inlet hose (2) to the radiator and engine coolant pipe. Refer to Radiator Inlet Hose Replacement (LTG with V18)

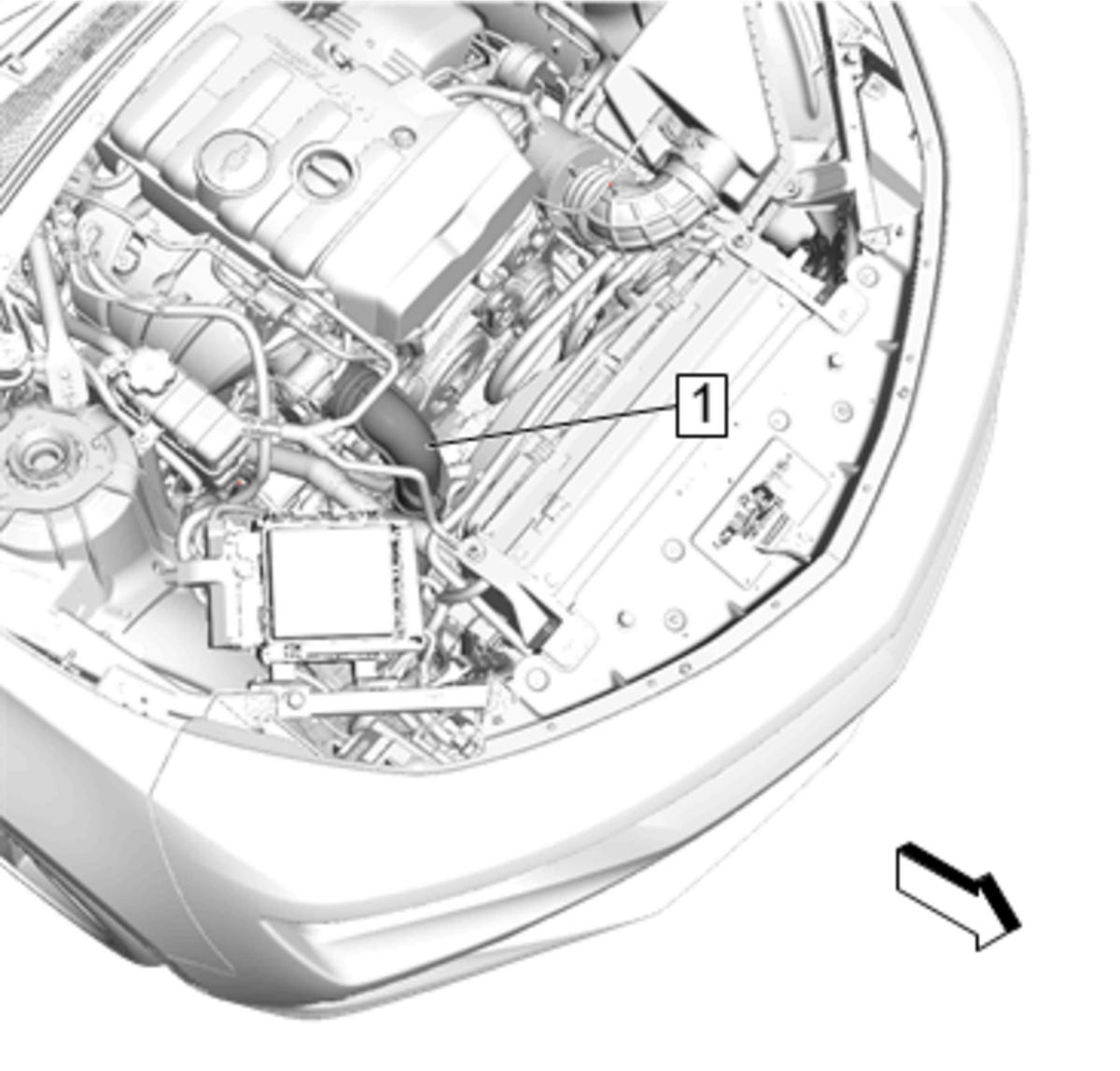

    14. Fig 8: Charge Air Cooler Outlet Air Tube
    GM4282810Courtesy of GENERAL MOTORS COMPANY
  14. Install Charge Air Cooler Outlet Air Tube (1)Charge Air Cooler Outlet Air Tube Replacement
  15. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection
