Installation Procedure

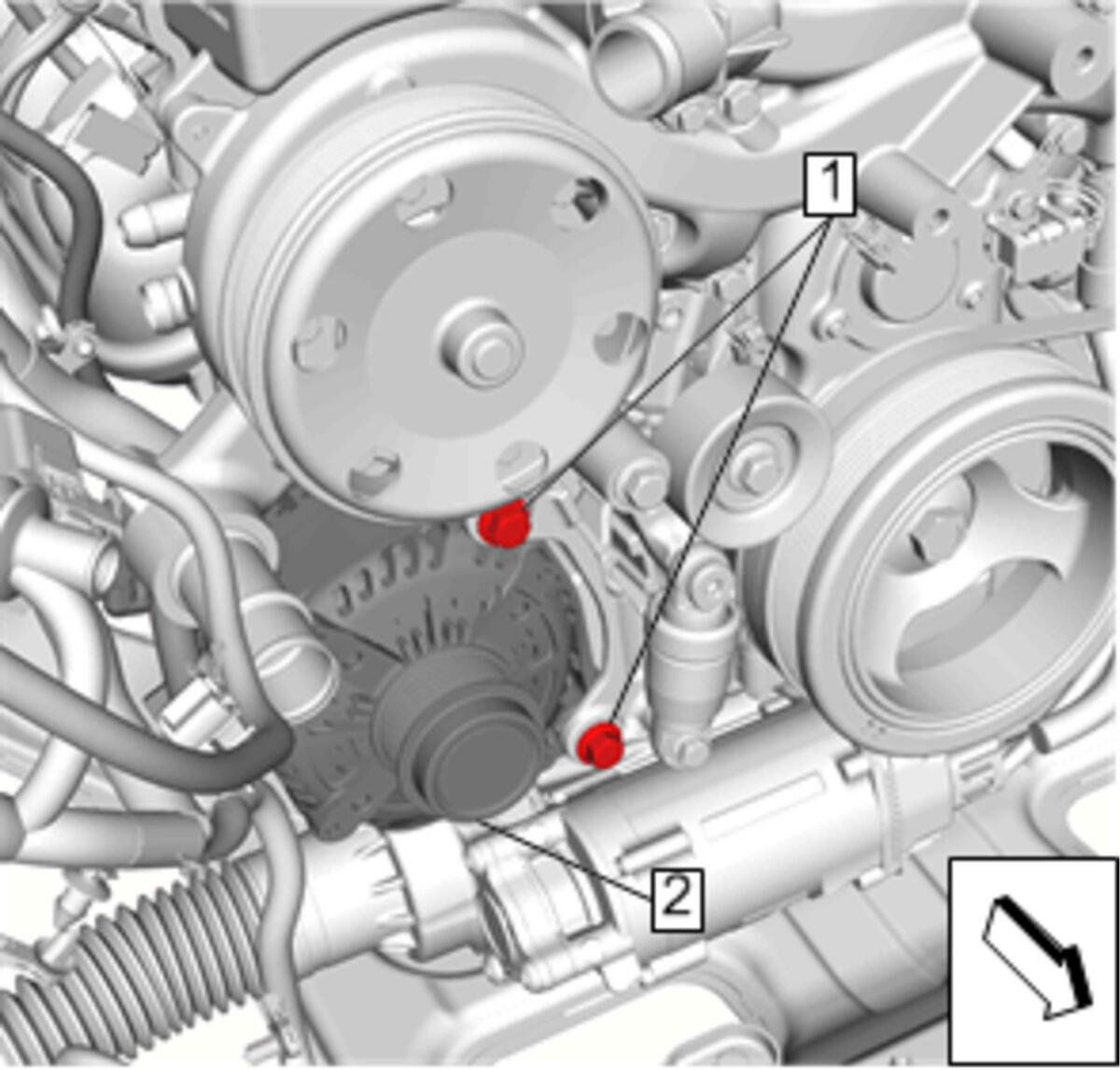

    Fig 1: Generator Bolt
    GM4210406Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator (2)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Bolt (1) and tighten 58 N.m (43 lb ft)

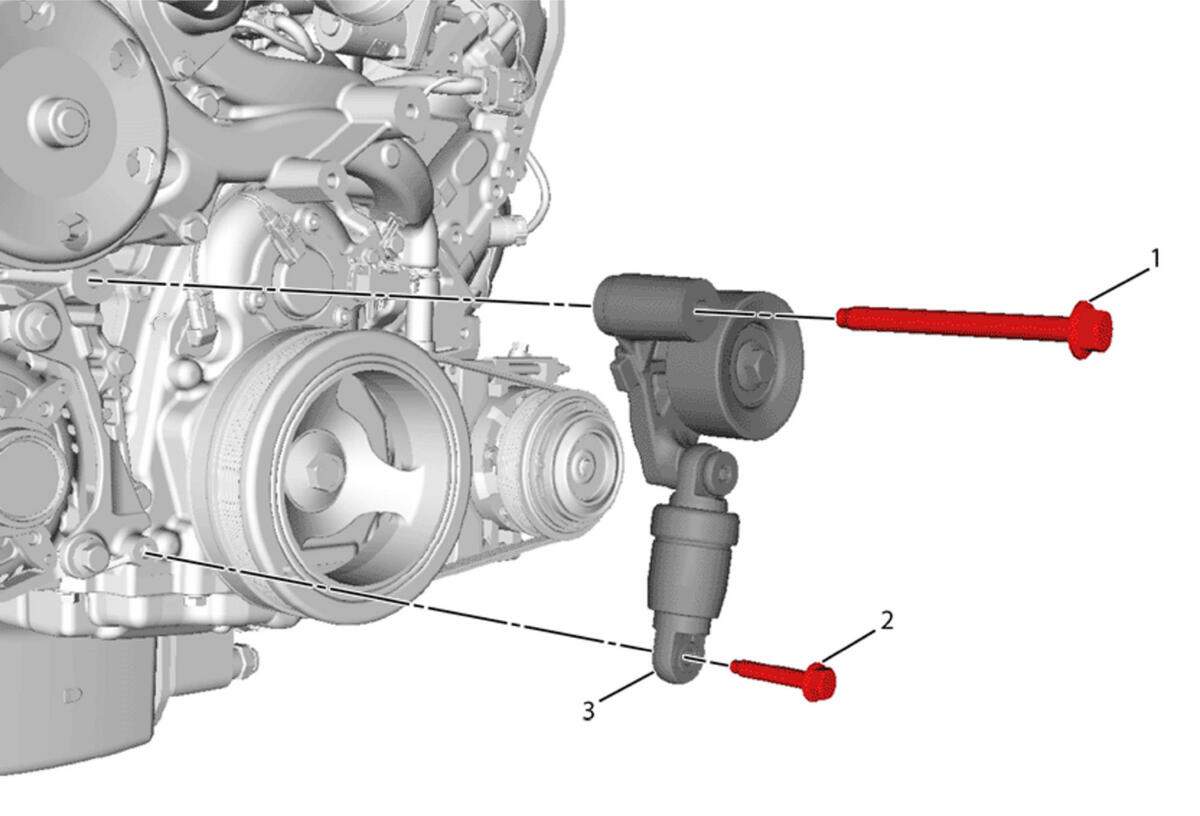

    3. Fig 2: Drive Belt Tensioner
    GM4204921Courtesy of GENERAL MOTORS COMPANY
  3. Install Drive Belt Tensioner (3) Drive Belt Tensioner Replacement - Accessory (LT4)

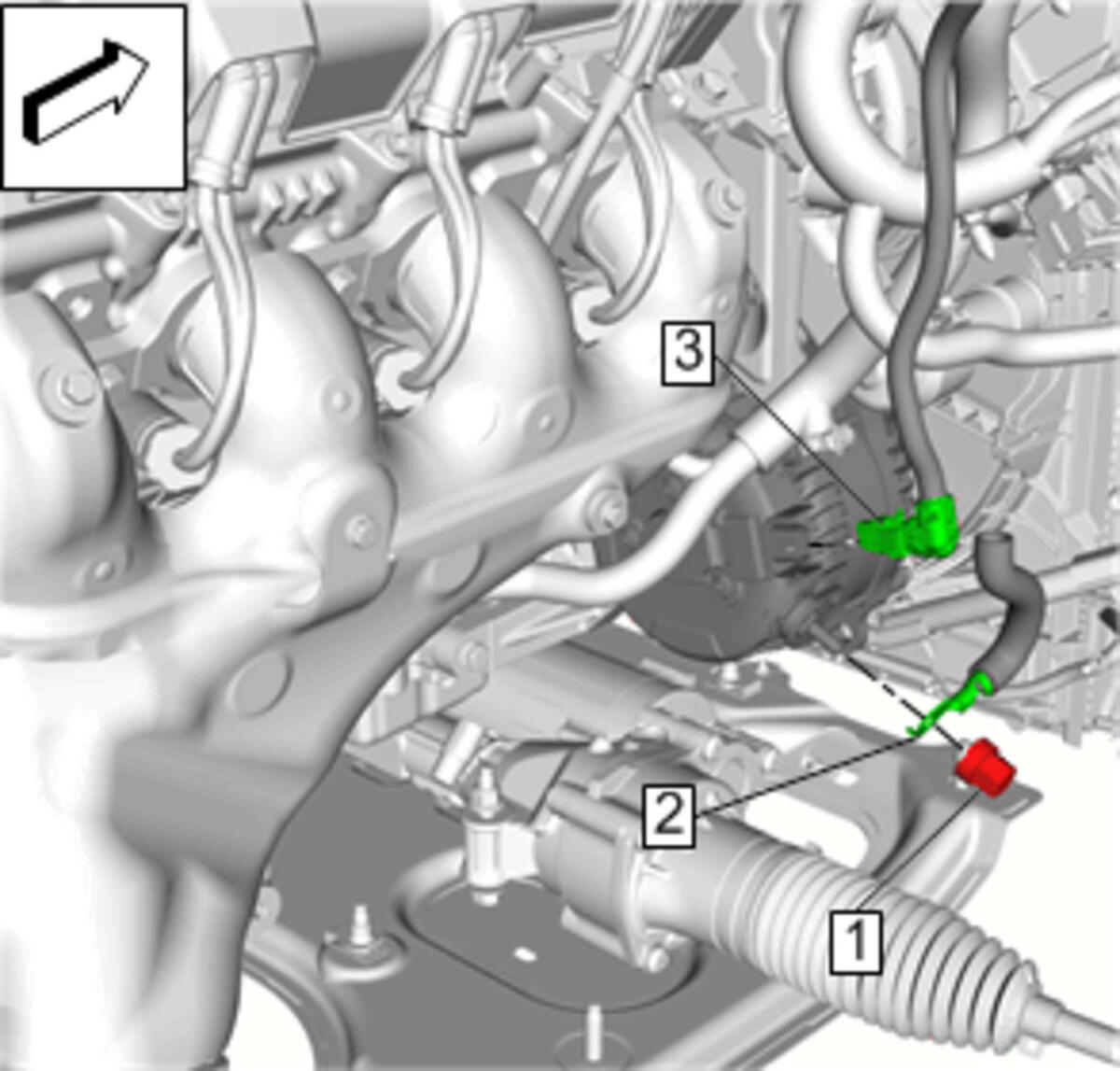

    4. Fig 3: Starter Solenoid Cable
    GM4210404Courtesy of GENERAL MOTORS COMPANY
  4. Install Starter Solenoid Cable (2)
  5. Install Generator Fastener (1) and tighten 15 N.m (11 lb ft)
  6. Install Electrical Connector (3)

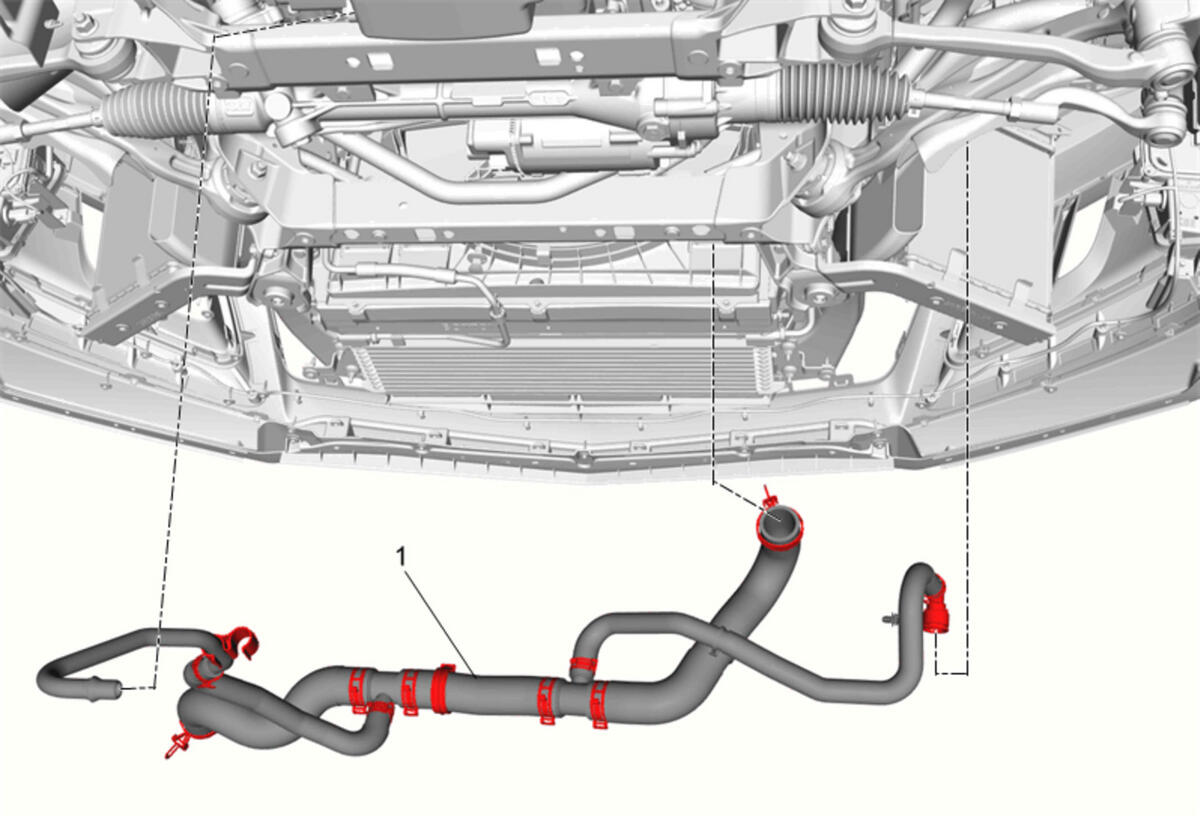

    7. Fig 4: Radiator Outlet Hose
    GM4551295Courtesy of GENERAL MOTORS COMPANY
  7. Install Radiator Outlet Hose (1) Radiator Outlet Hose Replacement (LT4)

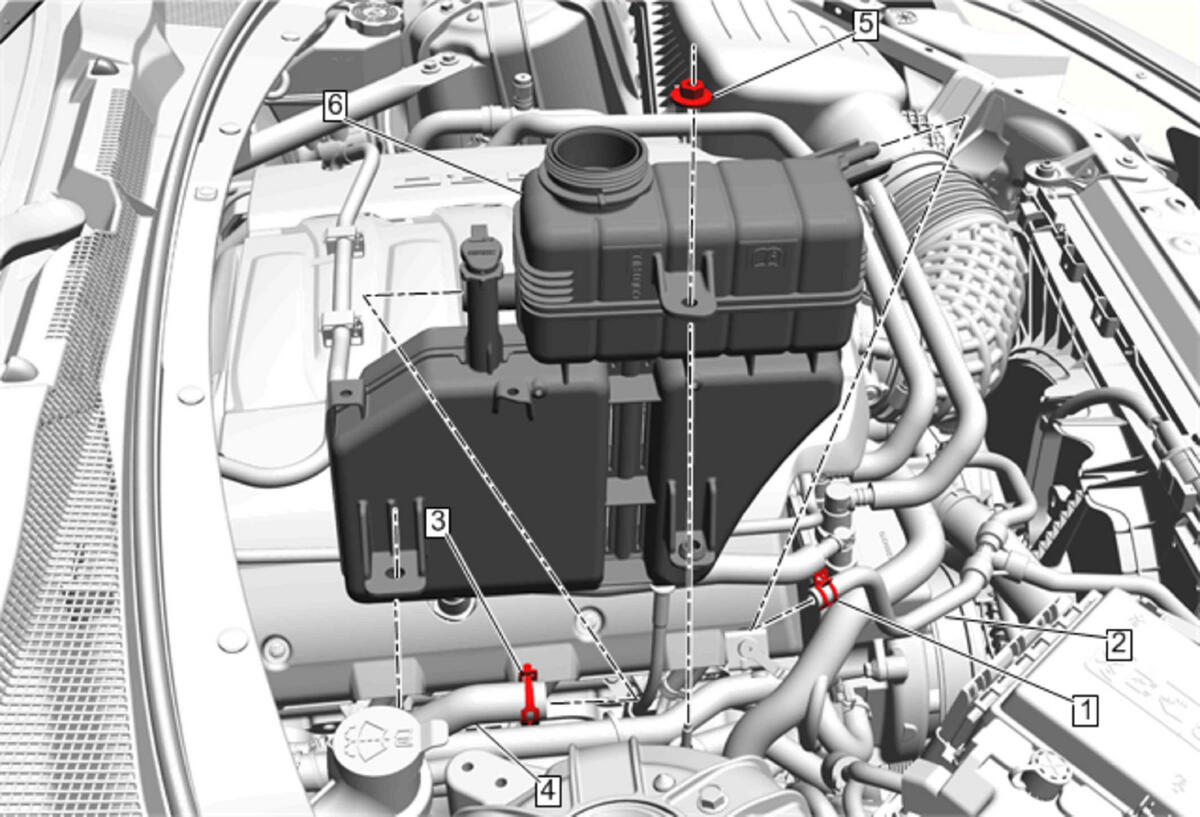

    8. Fig 5: Radiator Surge Tank
    GM4178662Courtesy of GENERAL MOTORS COMPANY
  8. Install Radiator Surge Tank (6) Radiator Surge Tank Replacement (LT1 LT4)
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
