Removal Procedure

  1. Remove Rear Compartment Side Trim.Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible)

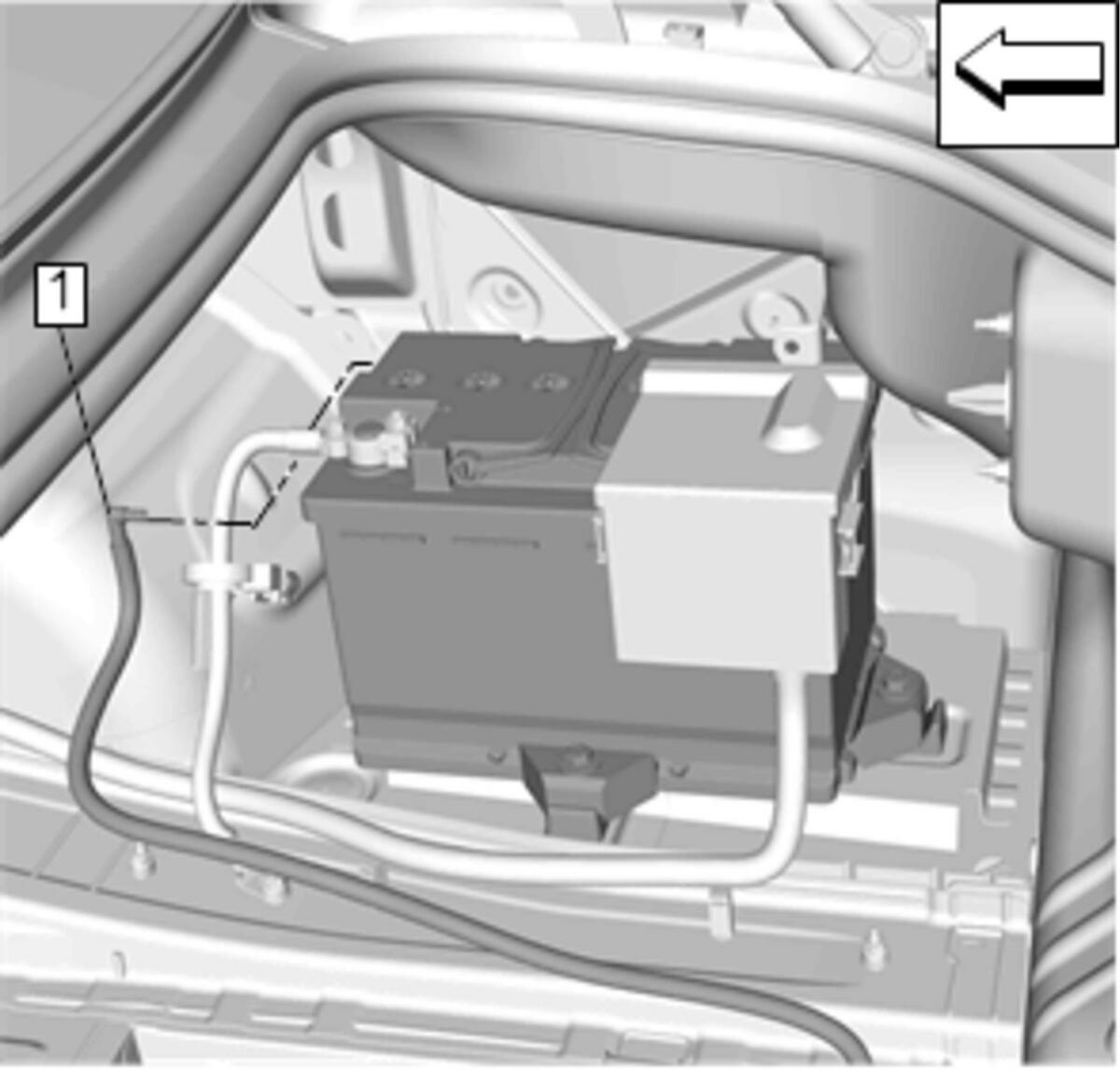

    2. Fig 1: Battery Vent Hose
    GM4205889Courtesy of GENERAL MOTORS COMPANY
  2. Remove Battery Vent Hose (1) @Battery

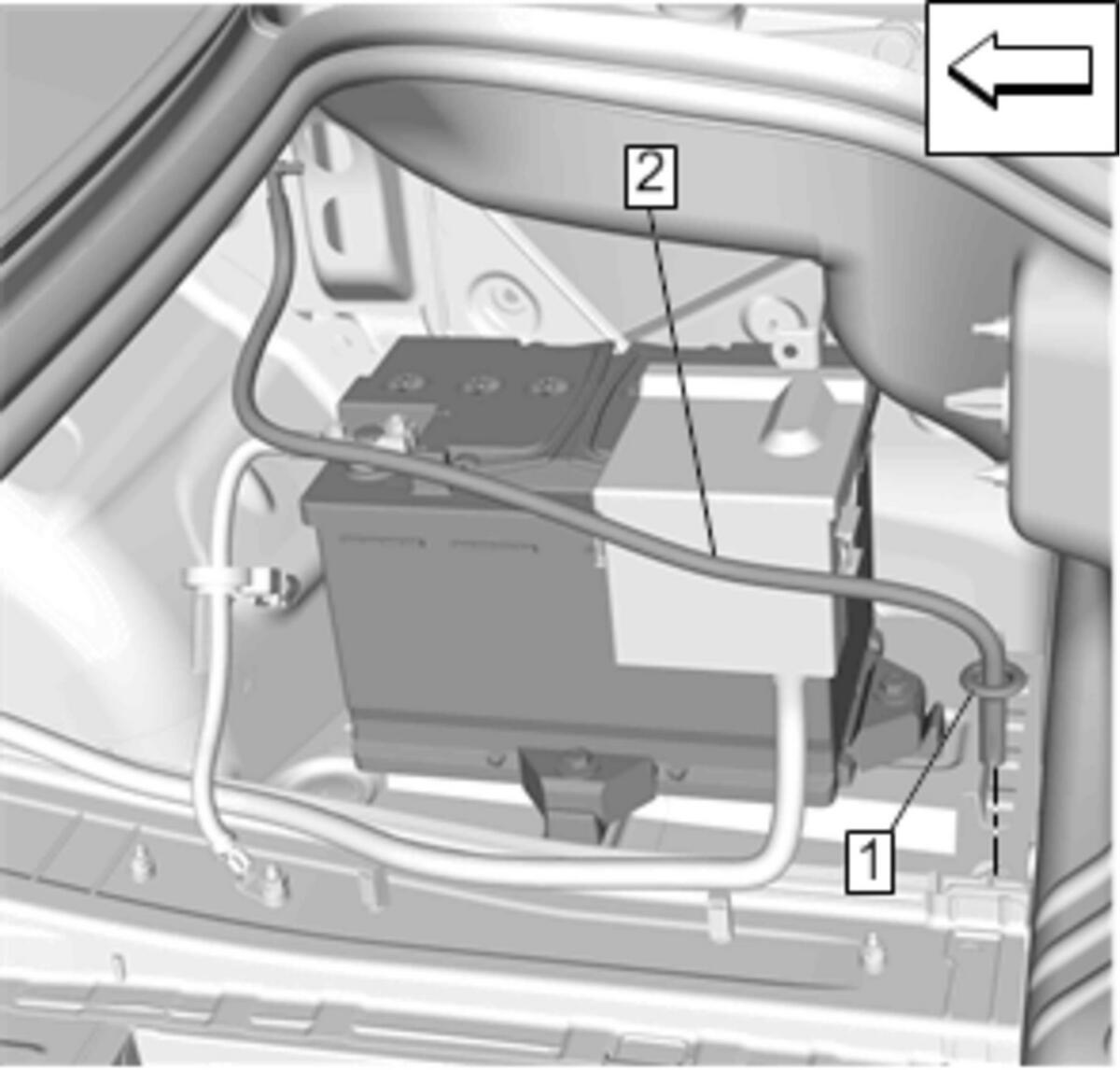

    3. Fig 2: Battery Vent Hose Pass-Through Grommet
    GM4205890Courtesy of GENERAL MOTORS COMPANY
  3. Remove the battery vent hose pass-through grommet.(1)
  4. Remove Battery Vent Hose (2)
