Installation Procedure

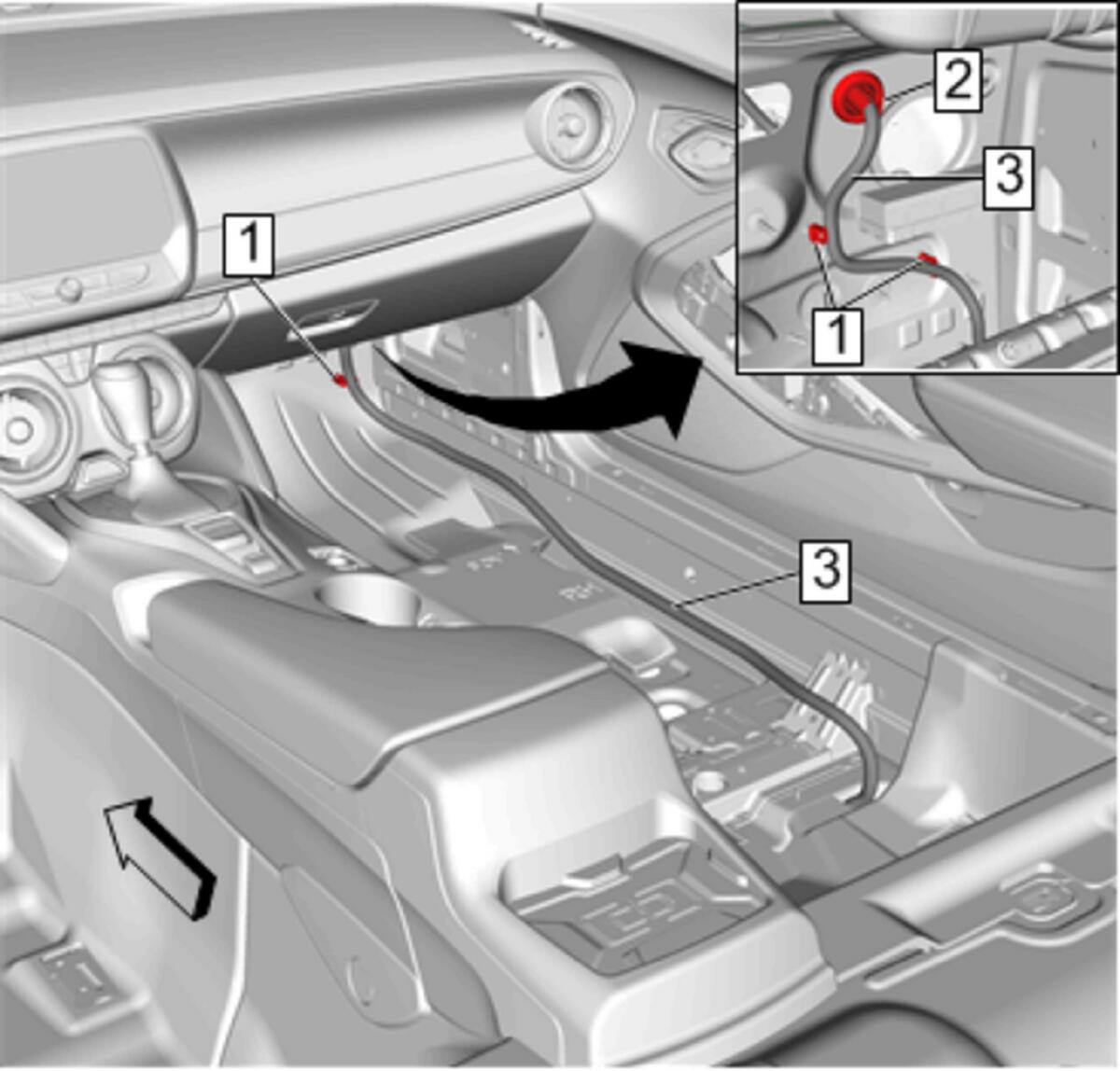

    Fig 1: Retainers And Battery Positive Cable Extension Cable
    GM4552213Courtesy of GENERAL MOTORS COMPANY
  1. With the aid of an assistant, feed the battery positive cable extension cable (3) through the opening in the plenum and into the engine compartment area.
  2. Install the pass-through grommet (2).
  3. Install the retainers.(1)

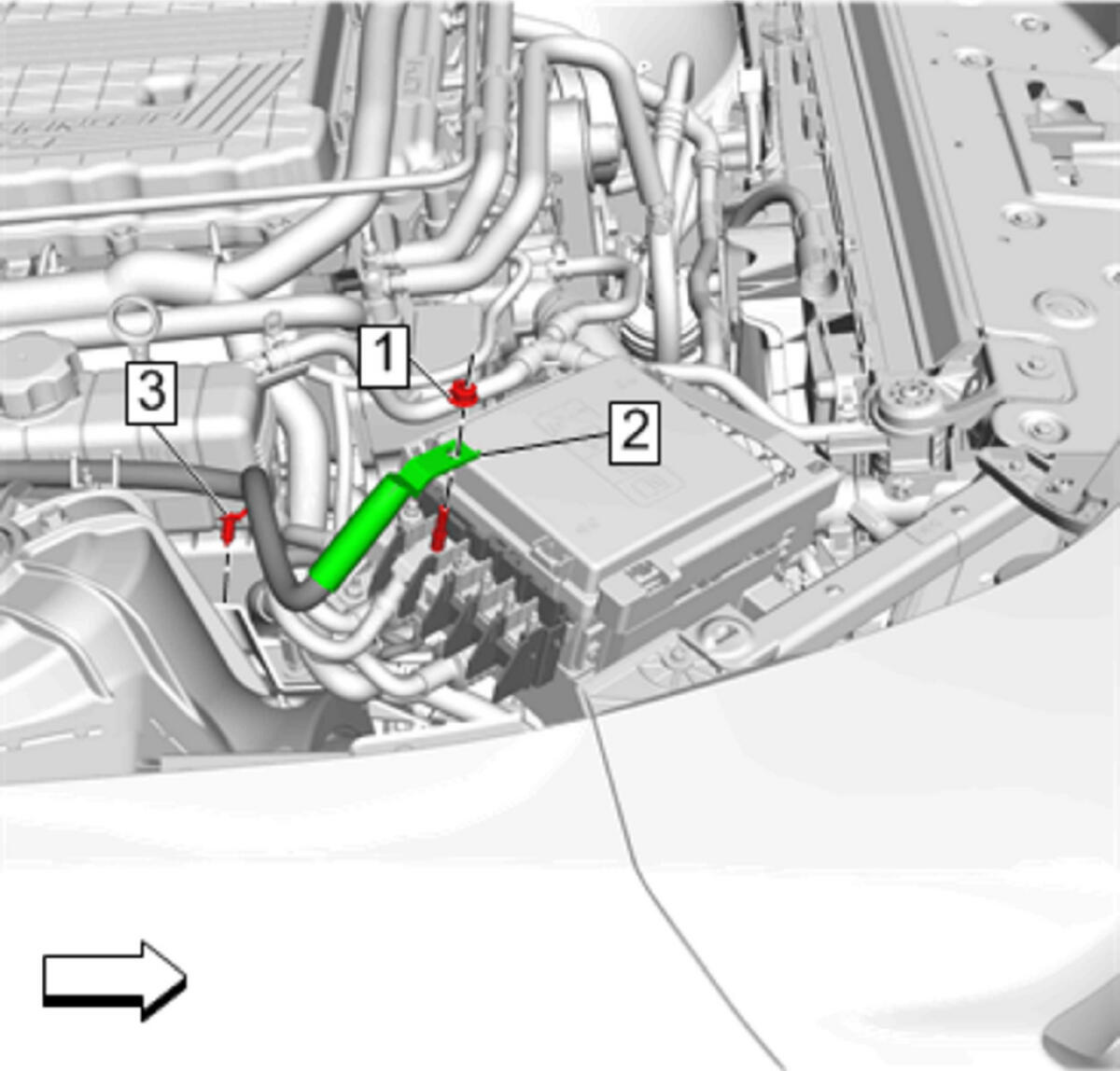

    4. Fig 2: Battery Positive Cable Extension Cable
    GM4552215Courtesy of GENERAL MOTORS COMPANY
  4. Install Battery Positive Cable Extension Cable (2)
    5. CAUTION:

    Refer to Fastener Caution

  5. Install Battery Positive Junction Block Cable Nut (1) and tighten 12 N.m (106 lb in)

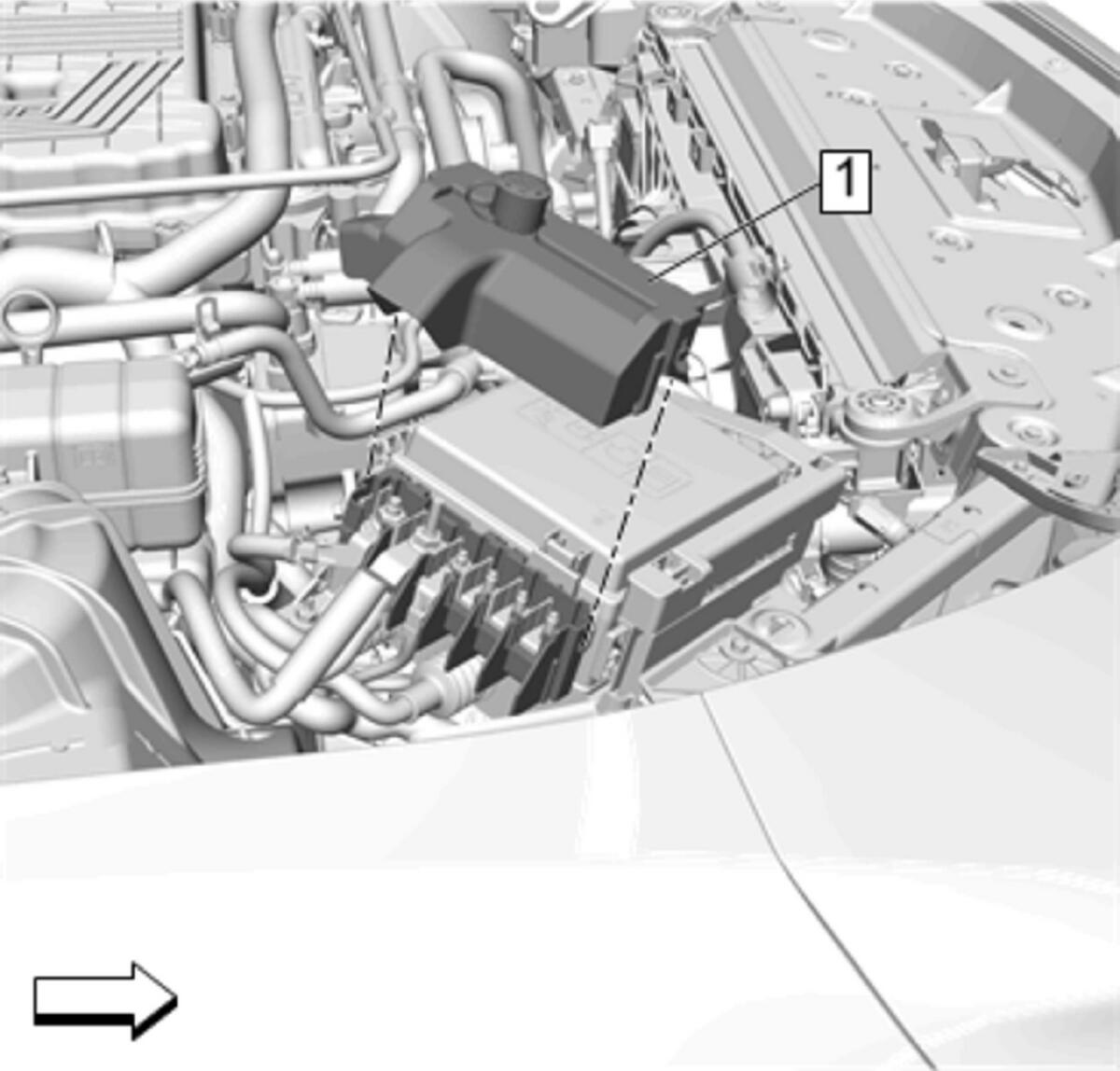

    6. Fig 3: Fuse Block Cover
    GM4552217Courtesy of GENERAL MOTORS COMPANY
  7. Install Fuse Block Cover (1)

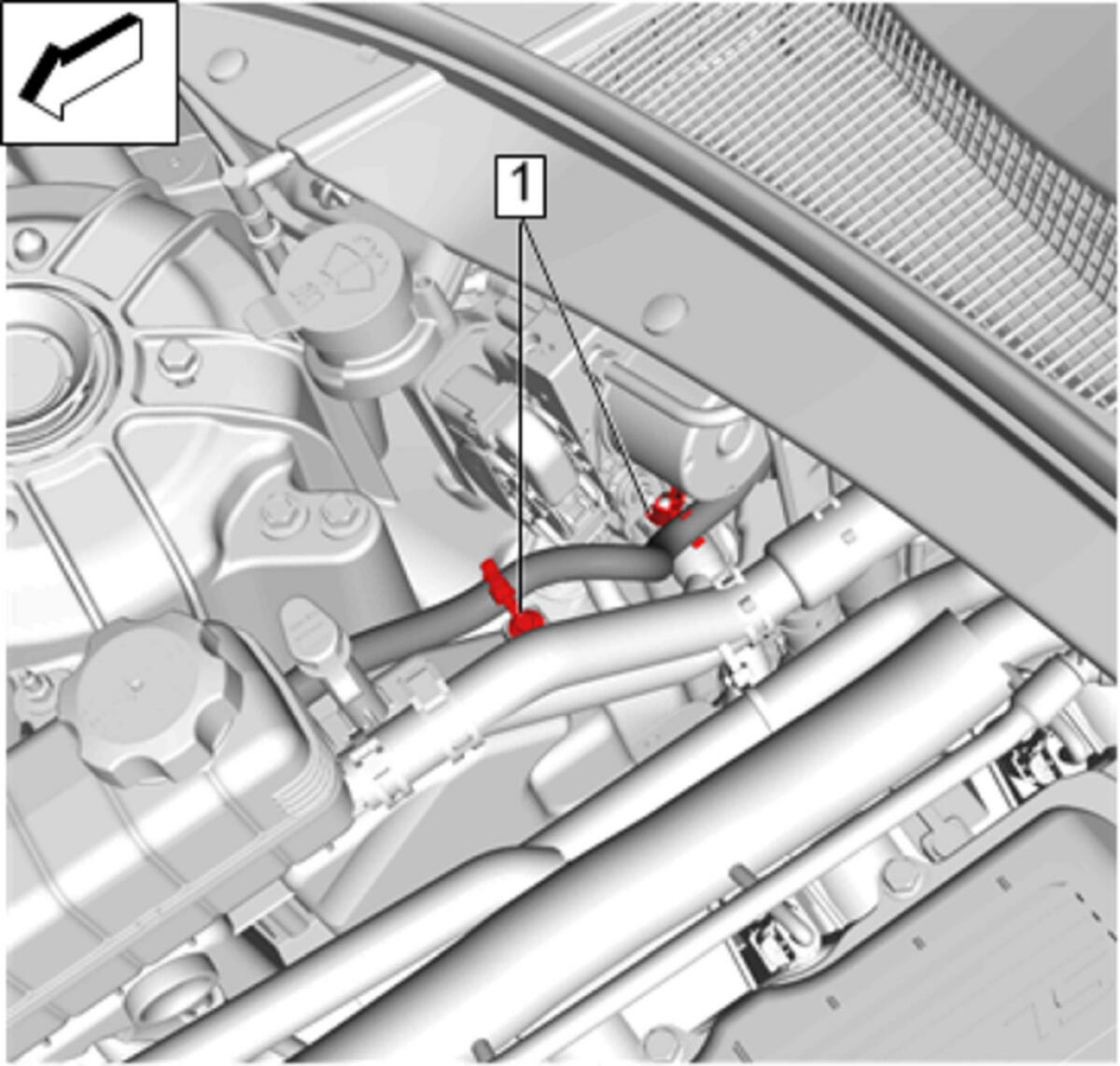

    8. Fig 4: Retainers
    GM4552214Courtesy of GENERAL MOTORS COMPANY
  8. Install the retainers.(1)

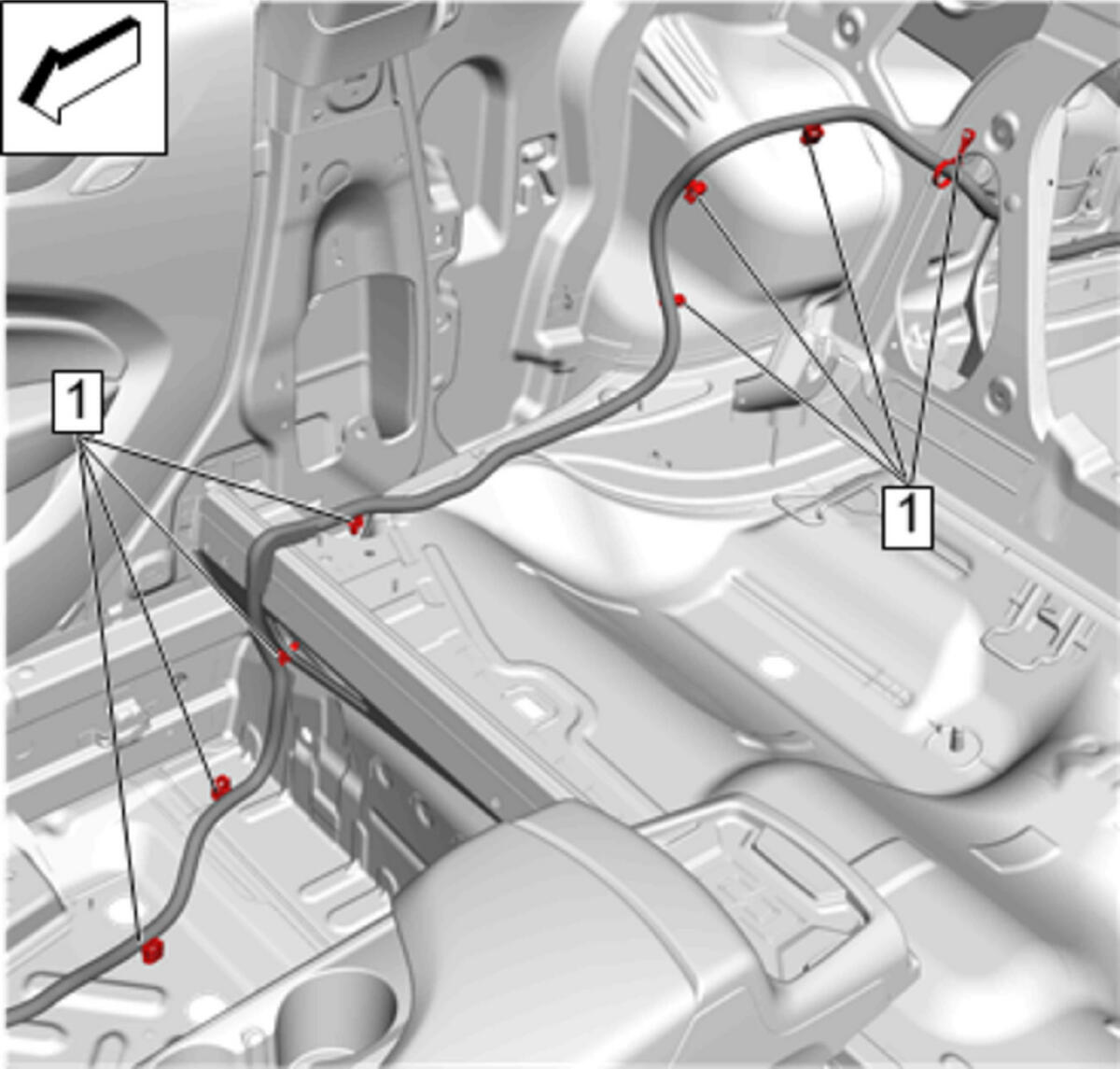

    9. Fig 5: Retainers
    GM4552211Courtesy of GENERAL MOTORS COMPANY
  9. Install the retainers.(1)
  10. Feed the battery positive cable extension cable into the rear compartment.

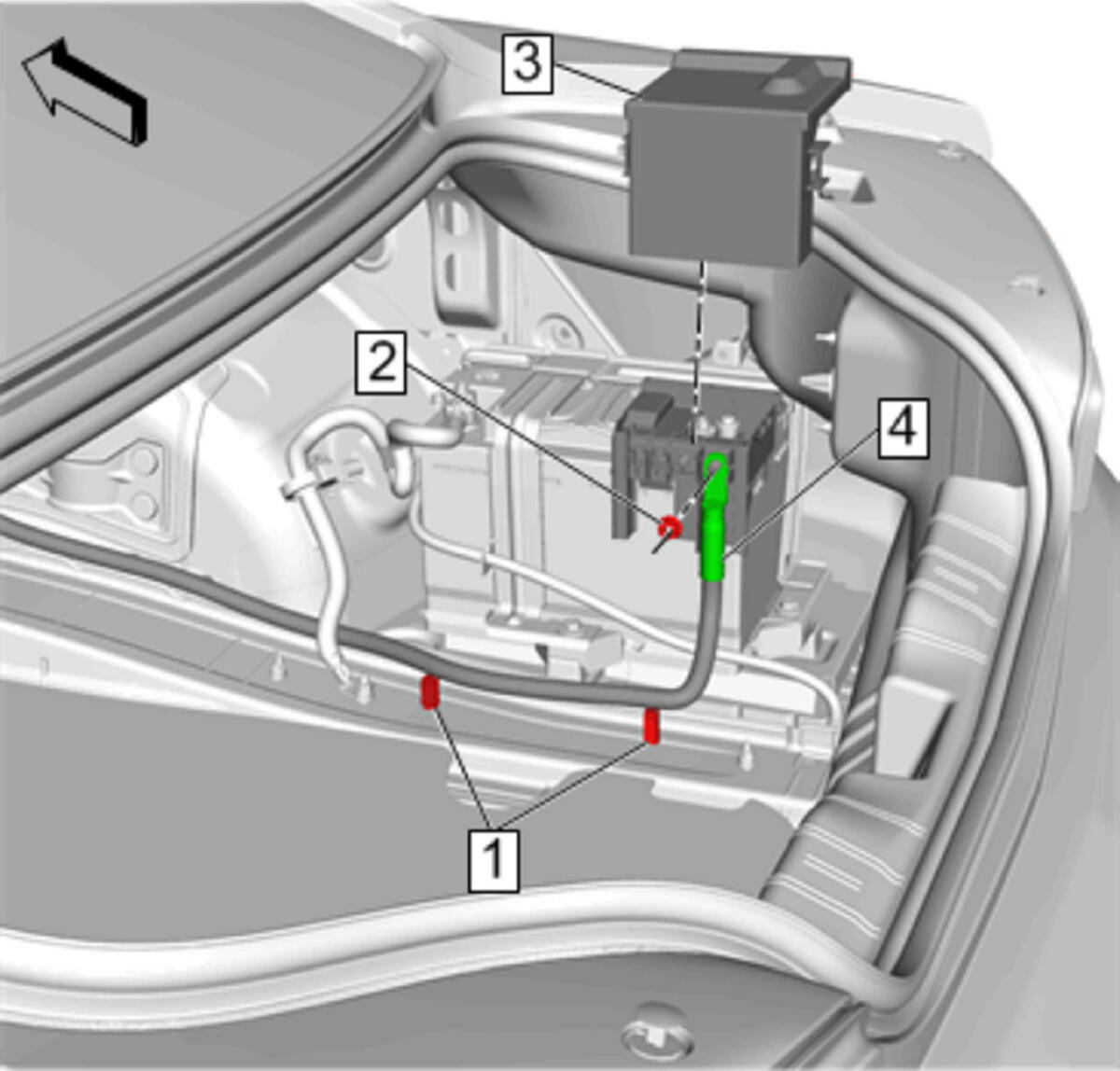

    11. Fig 6: Rear Body Fuse Block Cover, Battery Positive Cable Extension Cable And Fastener
    GM4552210Courtesy of GENERAL MOTORS COMPANY
  11. Install Battery Positive Cable Extension Cable (4)
  12. Install Battery Positive Cable Extension Cable Fastener (2) and tighten 12 N.m (106 lb in)
  13. Install Rear Body Fuse Block Cover (3)
  14. Install the retainers.(1)

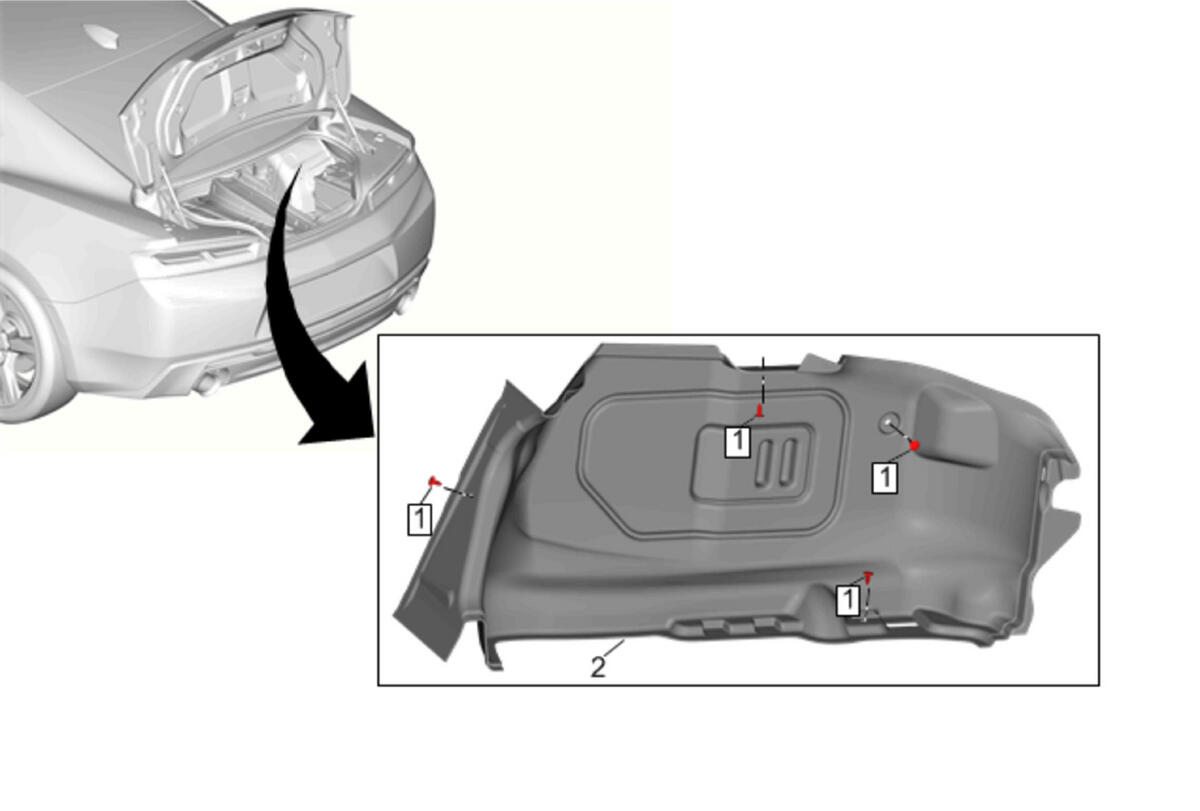

    15. Fig 7: Rear Compartment Side Trim - Right Side (Coupe)
    GM4210109Courtesy of GENERAL MOTORS COMPANY
  15. Install Rear Compartment Side Trim Panel-Right Side (2)Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible)

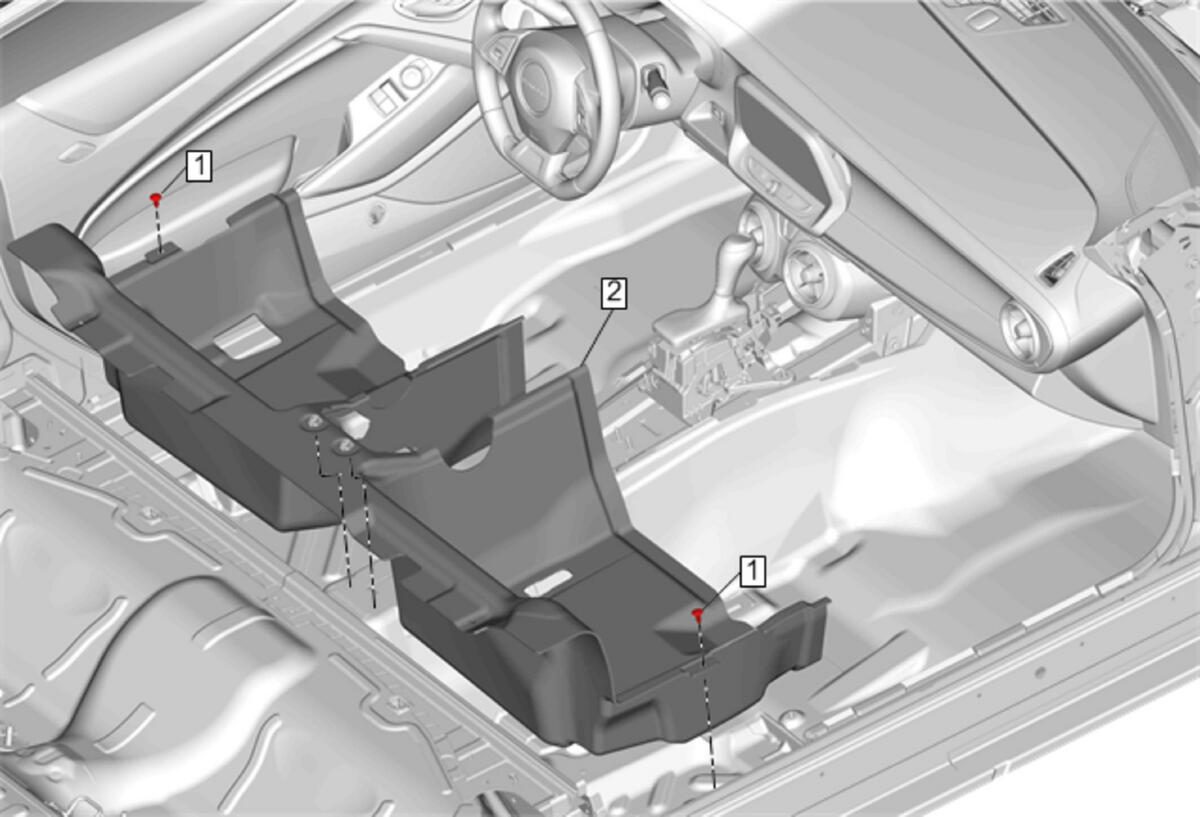

    16. Fig 8: Rear Floor Panel Carpet
    GM4211223Courtesy of GENERAL MOTORS COMPANY
  16. Install Rear Floor Panel Carpet (2)Rear Floor Panel Carpet Replacement

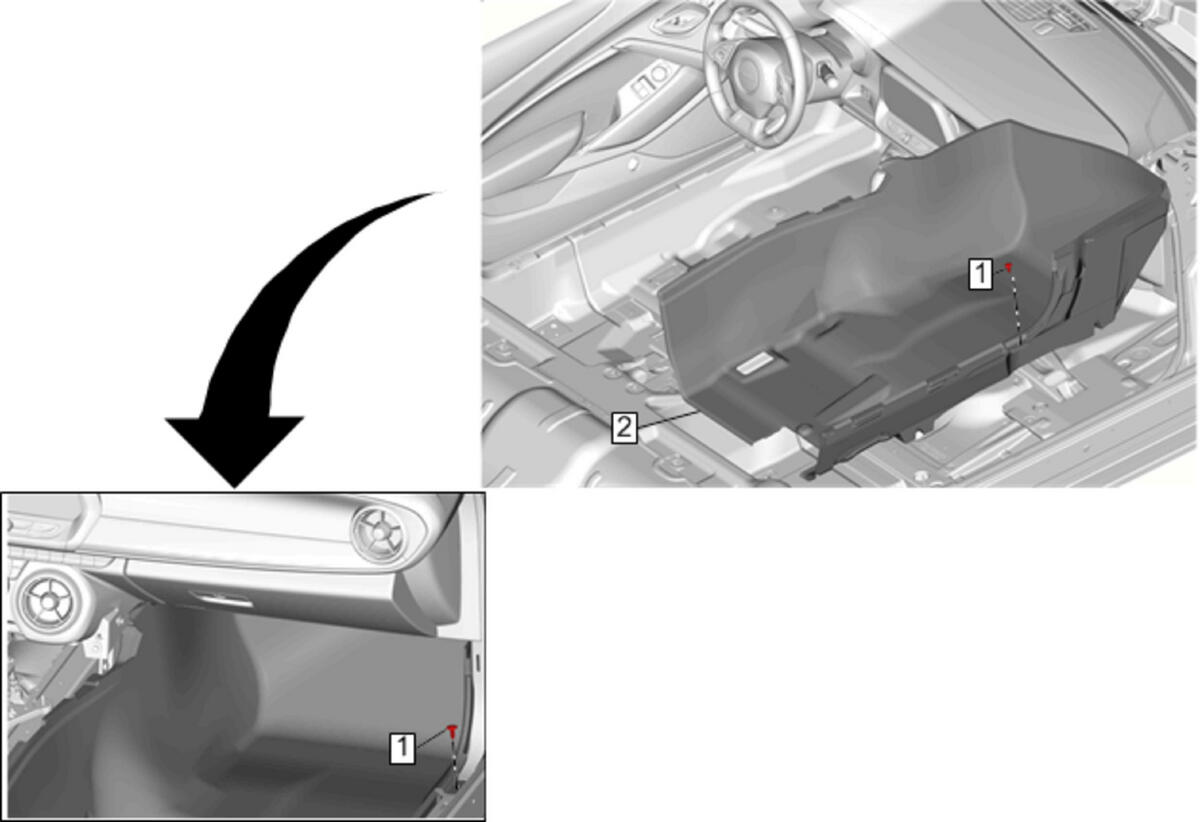

    17. Fig 9: Front Floor Panel Carpet - Right Side
    GM4211067Courtesy of GENERAL MOTORS COMPANY
  17. Install Front Floor Panel Carpet - Right Side (2)Front Floor Panel Carpet Replacement - Right Side
  18. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection .
