Battery Negative Cable Replacement

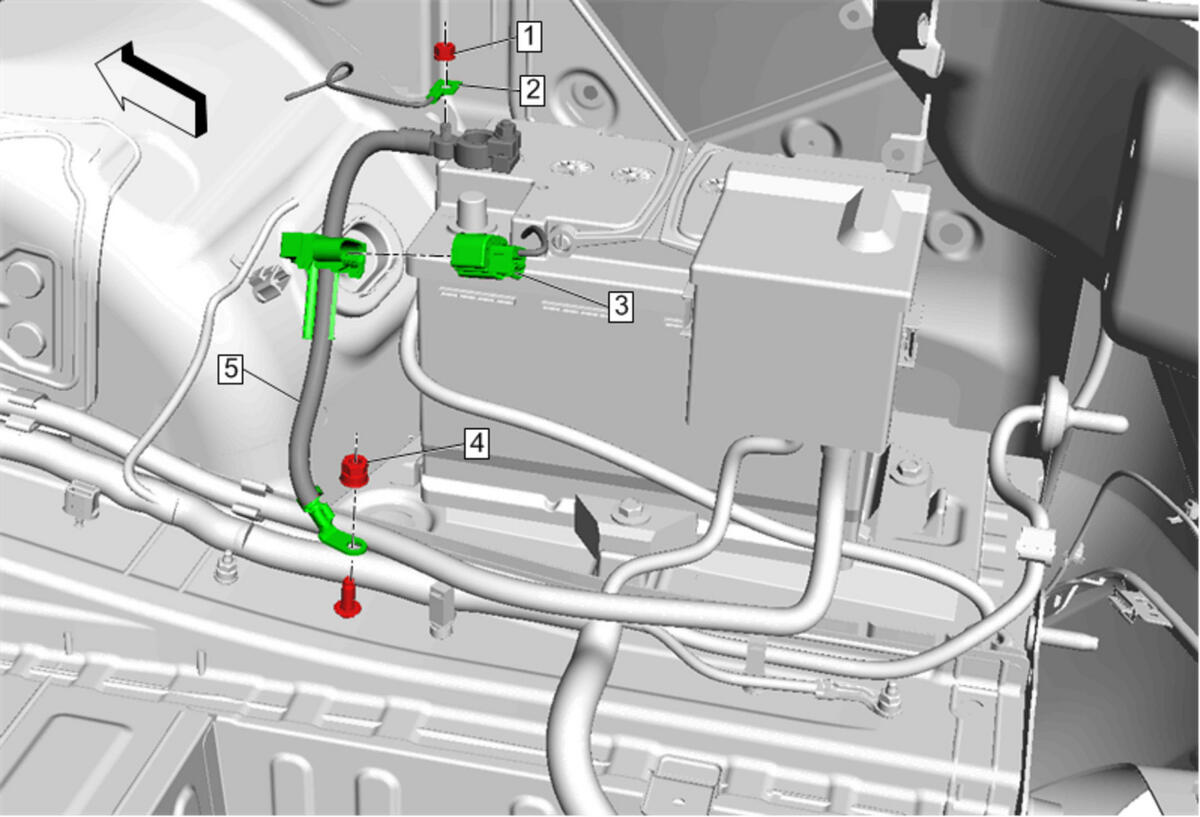

Fig 1: Battery Negative Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Rear Compartment Side Trim Replacement - Right Side (Coupe)Rear Compartment Side Trim Replacement - Right Side (Convertible) Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection
1	Body Harness Ground Fastener CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Body Harness Terminal
3	Battery Current Sensor Connector
4	Battery Negative Cable Frame Ground Fastener Tighten 22 N.m (16 lb ft)
5	Battery Negative Cable
