Removal Procedure

Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection

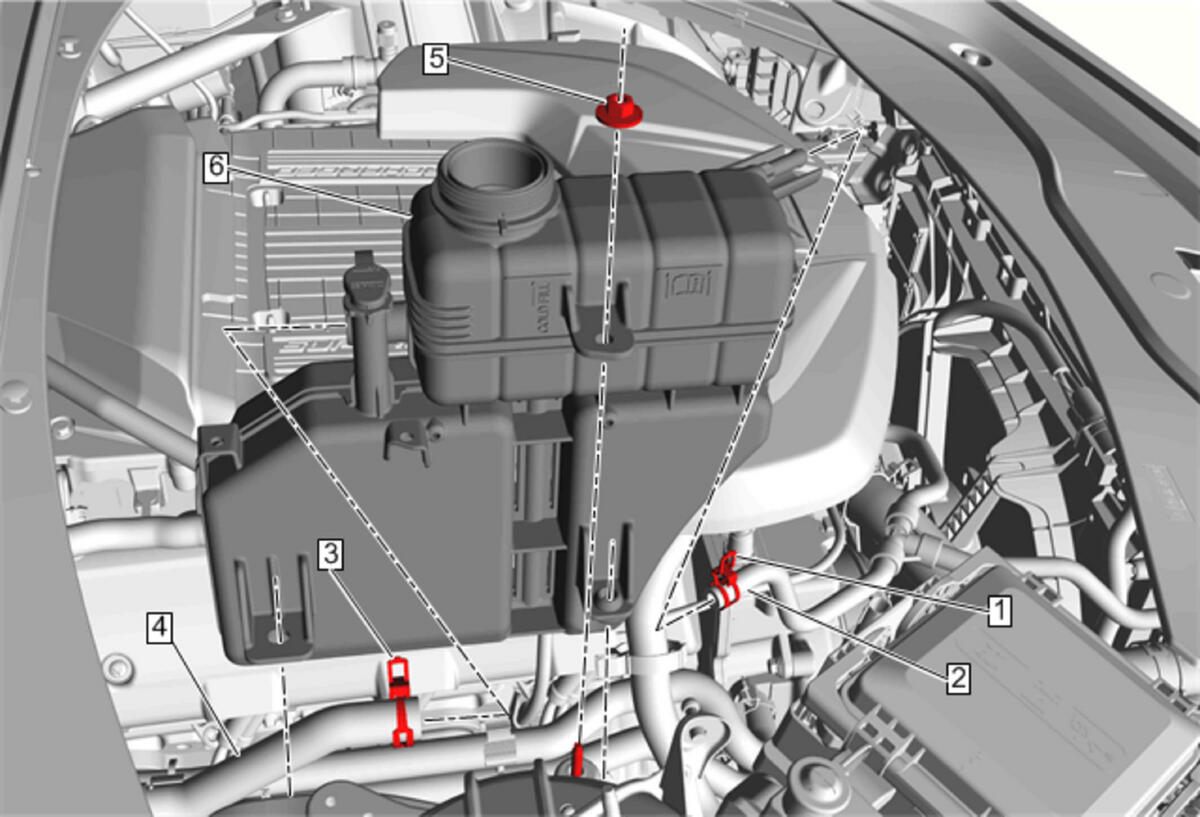

Fig 1: Radiator Surge Tank

GM4086709

Courtesy of GENERAL MOTORS COMPANY

Remove Radiator Surge Tank (6). Radiator Surge Tank Replacement (LGX)

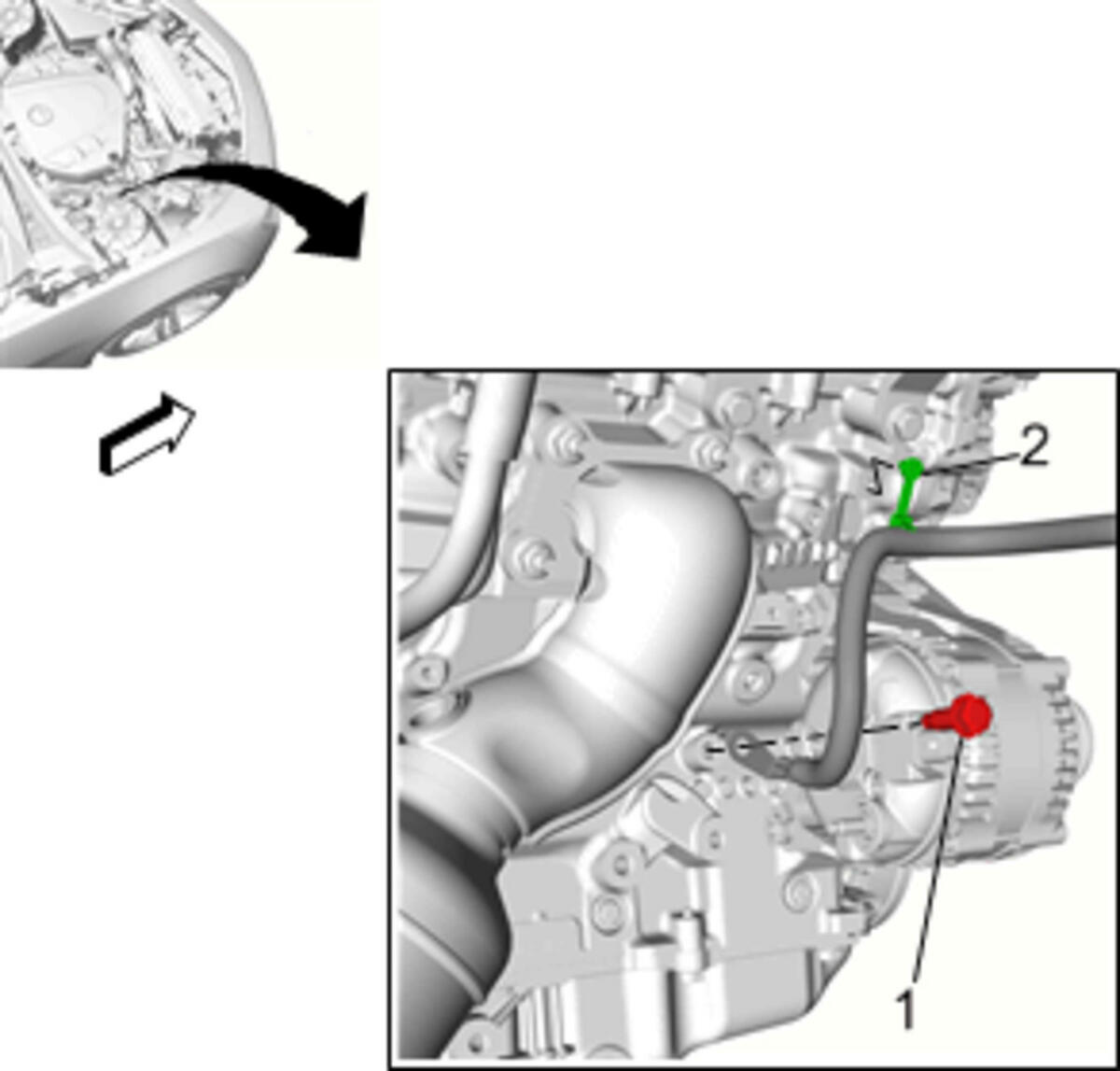

Fig 2: Battery Negative Cable Extension Cable Fastener

GM4205994

Courtesy of GENERAL MOTORS COMPANY

Remove Battery Negative Cable Extension Cable Fastener (1)
Disengage Battery Negative Cable Extension Cable Retainer (2)

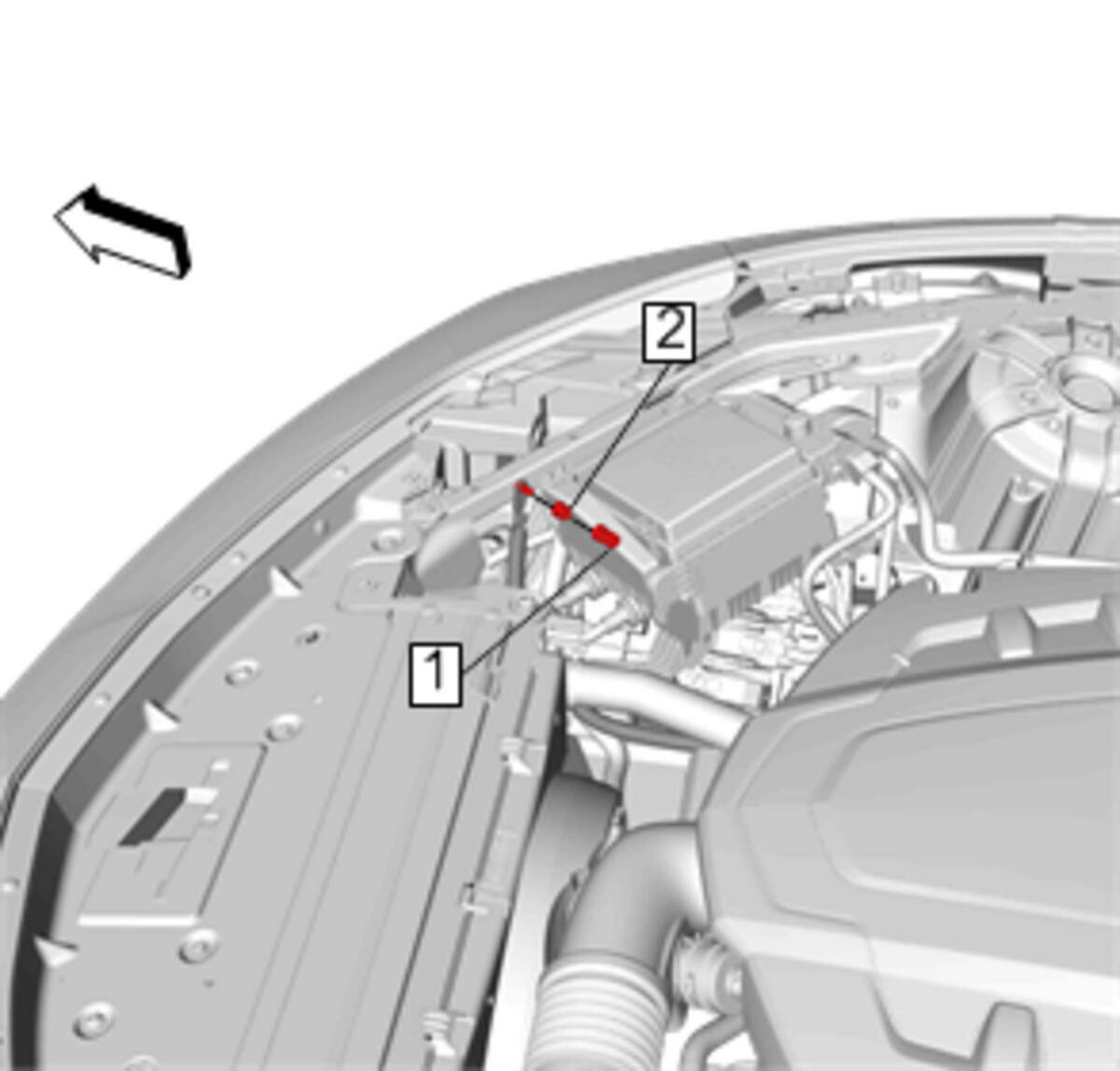

Fig 3: Protective Cap

GM4205995

Courtesy of GENERAL MOTORS COMPANY

Remove Protective Cap (1)
Remove Battery Negative Cable Extension Cable Fastener (2)

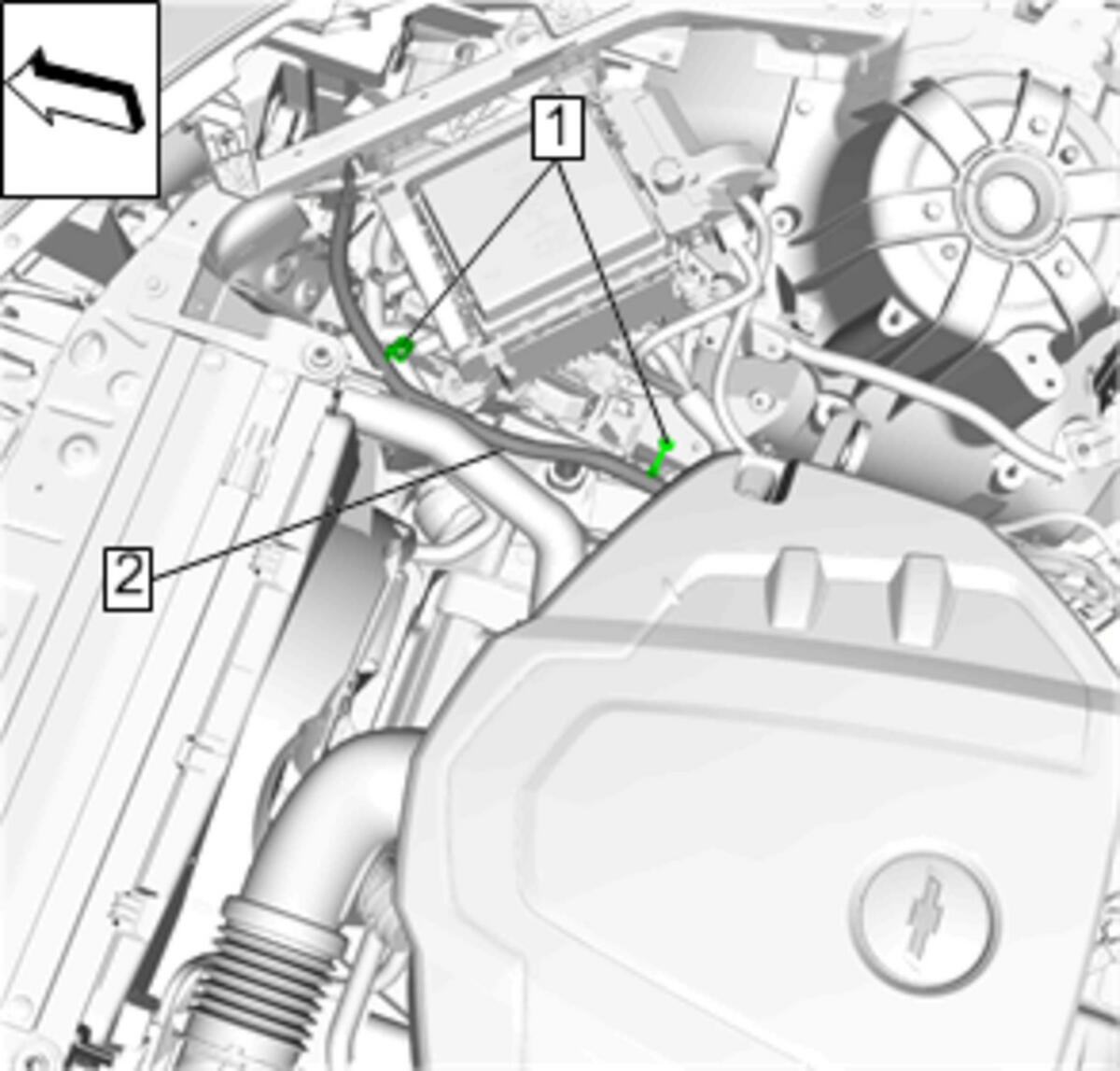

Fig 4: Battery Negative Cable Extension Cable Retainer

GM4205997

Courtesy of GENERAL MOTORS COMPANY

Disengage Battery Negative Cable Extension Cable Retainer (1)
Remove Battery Negative Cable Extension Cable (2)
