Moveable Window Wiring Schematics: Passenger

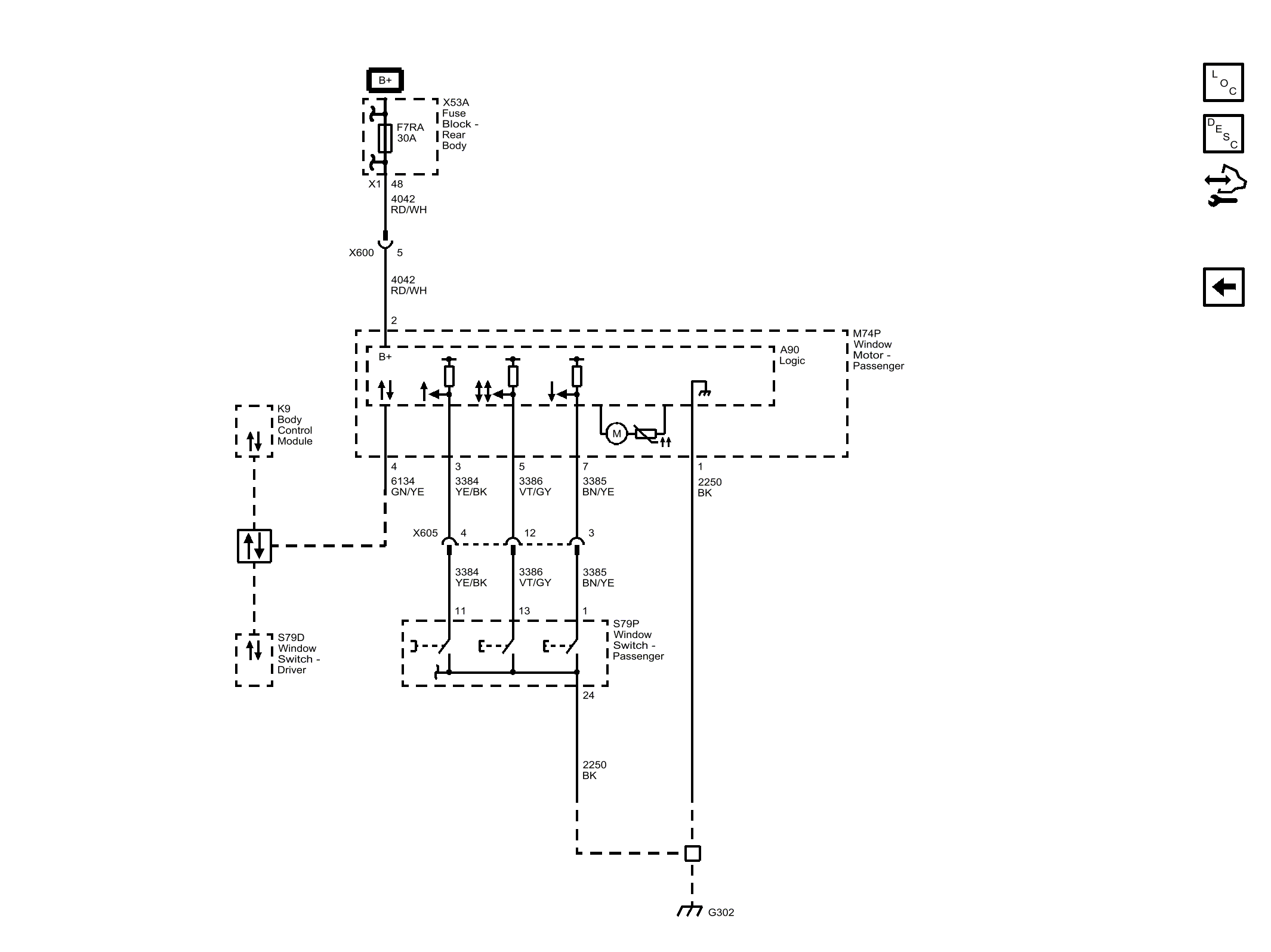

Fig 1: Passenger

GM4446933

Courtesy of GENERAL MOTORS COMPANY
