Quarter Window Regulator Replacement

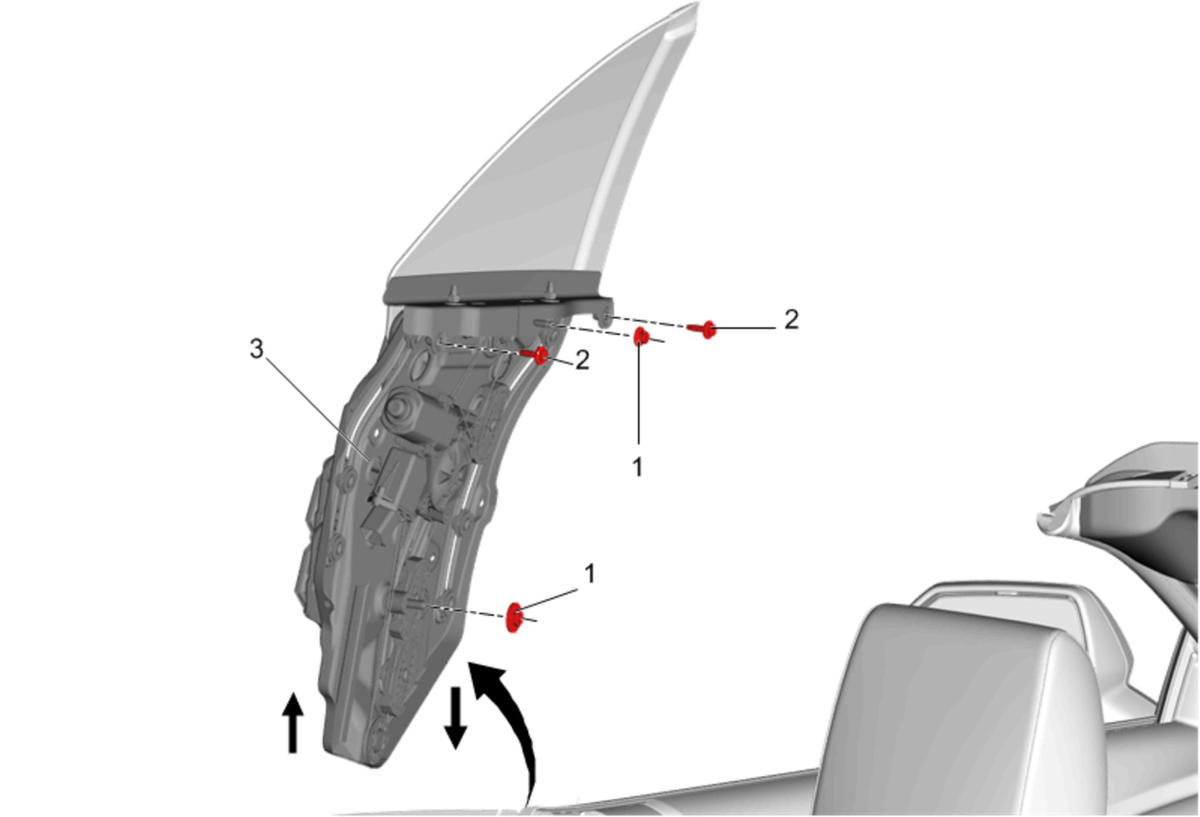

Fig 1: Quarter Window Regulator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Quarter Lower Rear Trim Panel Replacement (Coupe)Quarter Lower Rear Trim Panel Replacement (Convertible) Front Side Door Weatherstrip Replacement - Body Side (Coupe)Front Side Door Weatherstrip Replacement - Body Side (Convertible) Quarter Window Outer Belt Sealing Strip Replacement Folding Top Stowage Compartment Lid Weatherstrip Replacement Leave the window attached to the regulator when removing. Mark the window fore/aft and up and down to the regulator clamps prior to transferring window.
1	Quarter Window Regulator Nut (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Loosen both window regulator nuts. Tighten 10 N.m (89 lb in)
2	Quarter Window Regulator Upper Side Bracket Screw (Qty: 2) Tighten 10 N.m (89 lb in)
3	Quarter Window Regulator Procedure Disconnect the electrical connector. Transfer components as necessary.
