Vehicle Performance Global Positioning System Antenna Replacement

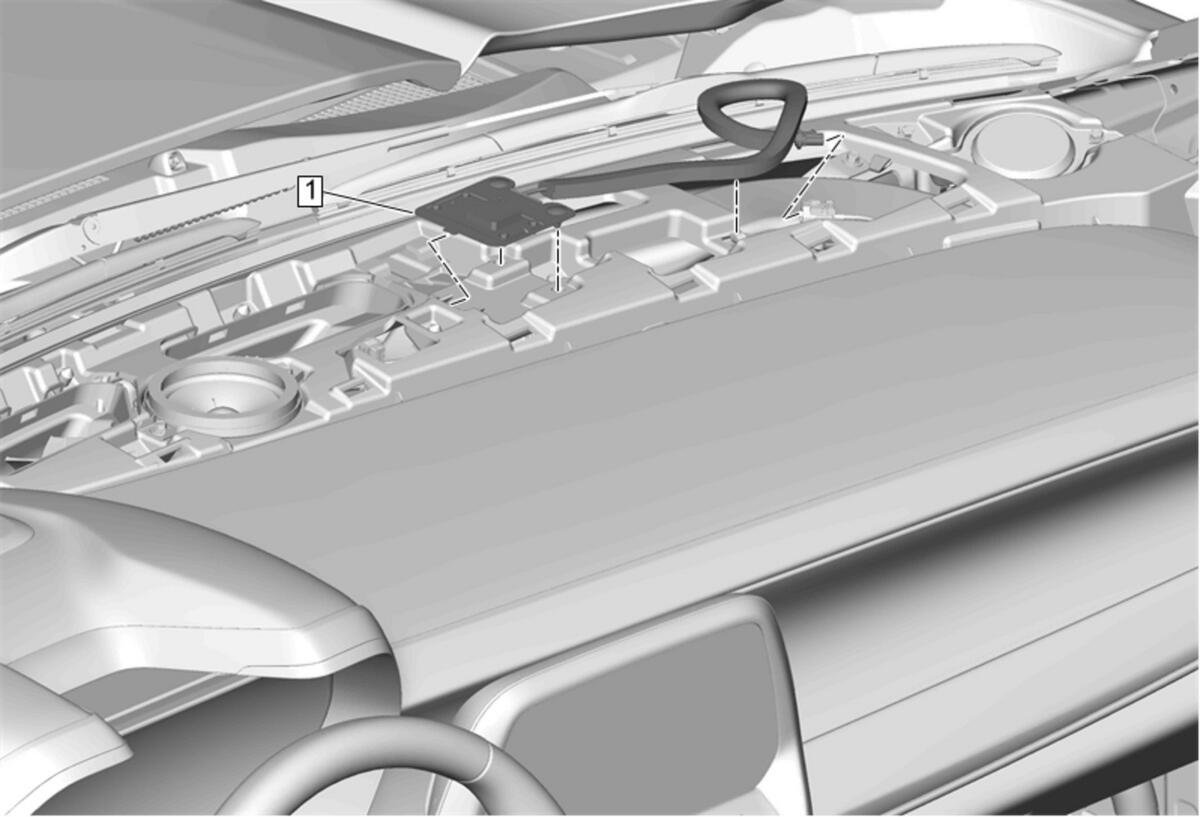

Fig 1: Vehicle Performance Global Positioning System Antenna
GM4743572Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Instrument Panel Extension Replacement
<p01> Vehicle Performance Global Positioning System Antenna
Procedure
Release the two integral retainers and release the vehicle performance global positioning system antenna from the instrument panel upper trim panel cover.
