Radio Replacement

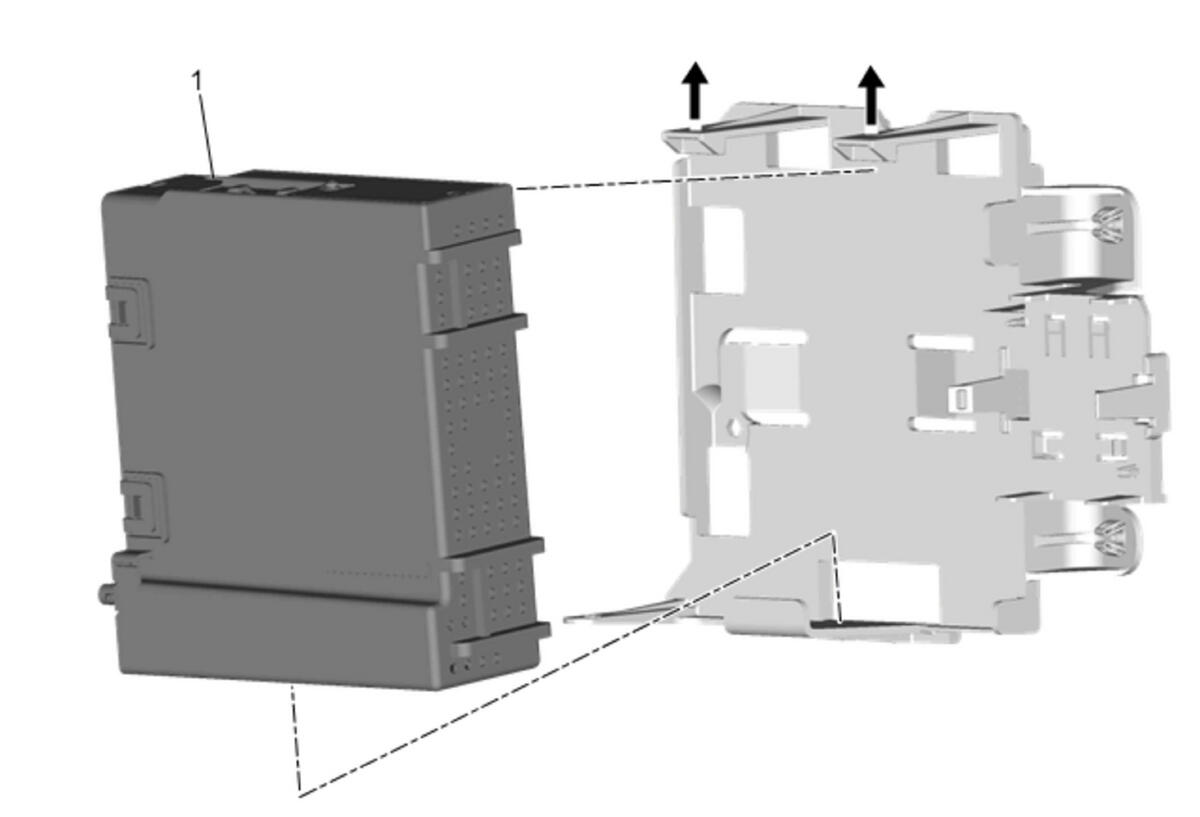

Fig 1: Radio

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Radio Bracket Replacement
1	Radio Procedure Disconnect the electrical connectors. Using an appropriate tool, release the radio bracket tabs and slide radio out of the bracket. Control Module References for programming and set-up information, if required.

Callout

Component Name

Preliminary Procedure
Radio Bracket Replacement

Radio

Procedure

Disconnect the electrical connectors.
Using an appropriate tool, release the radio bracket tabs and slide radio out of the bracket.
Control Module References for programming and set-up information, if required.
