Radio Front Speaker Replacement

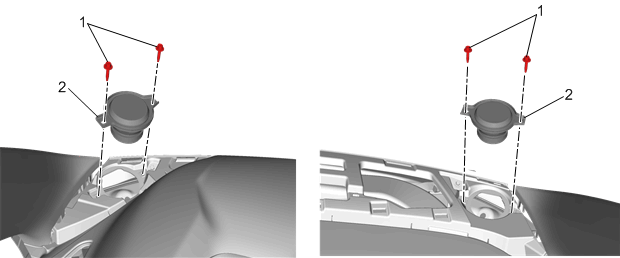

Fig 1: Radio Front Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Extension Replacement Instrument Panel Trim Pad Radio Speaker Opening Cover Replacement
1	Radio Front Speaker Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Front Speaker (Qty: 2) Procedure Disconnect the electrical connector.

Callout

Component Name

Preliminary Procedure

Radio Front Speaker Bolt (Qty: 4)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Front Speaker (Qty: 2)
Procedure
Disconnect the electrical connector.
