Radio Bracket Replacement

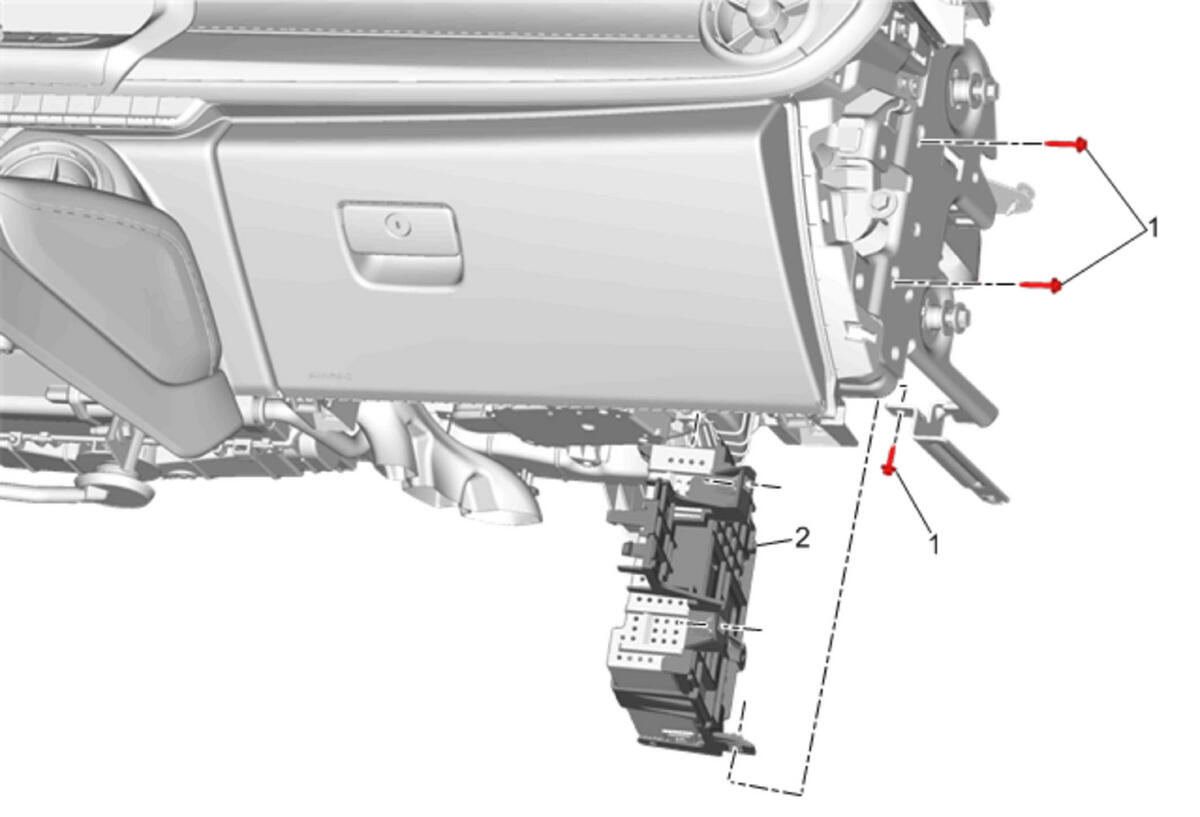

Fig 1: Radio Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Instrument Panel Outer Trim Cover Replacement Multiuse Module Bracket Replacement - Instrument Panel
1	Radio Bracket Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Bracket Procedure Disconnect the electrical connectors. Control Module References for programming and set-up information, if required.

Callout

Component Name

Preliminary Procedure

Radio Bracket Bolt (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Bracket

Procedure
