Navigation Signal Splitter Replacement

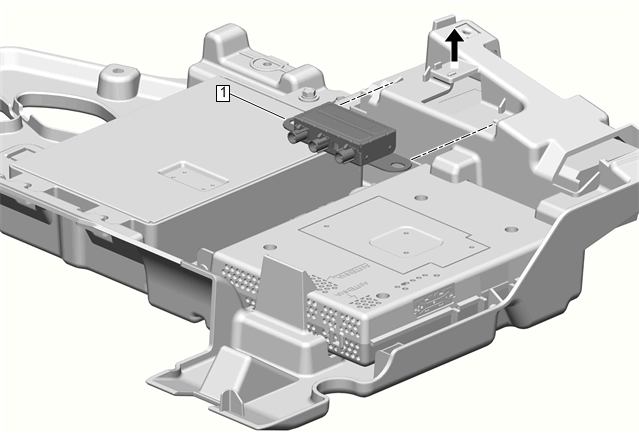

Fig 1: Navigation Signal Splitter
GM4180860Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Multiuse Module Bracket Replacement - Instrument Panel
1 Navigation Signal Splitter
Procedure
Release the retaining tabs.
