Communication Interface Module Battery Replacement

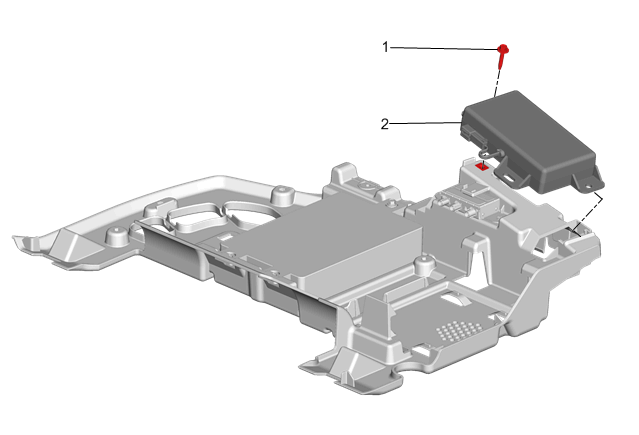

Fig 1: Communication Interface Module Battery
GM4251737Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Multiuse Module Bracket Replacement - Instrument Panel
1 Communication Interface Module Battery Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Communication Interface Module Battery
Procedure
Disconnect the electrical connector.
