Park Assist - Power, Ground, Serial Data and Rear Sensors

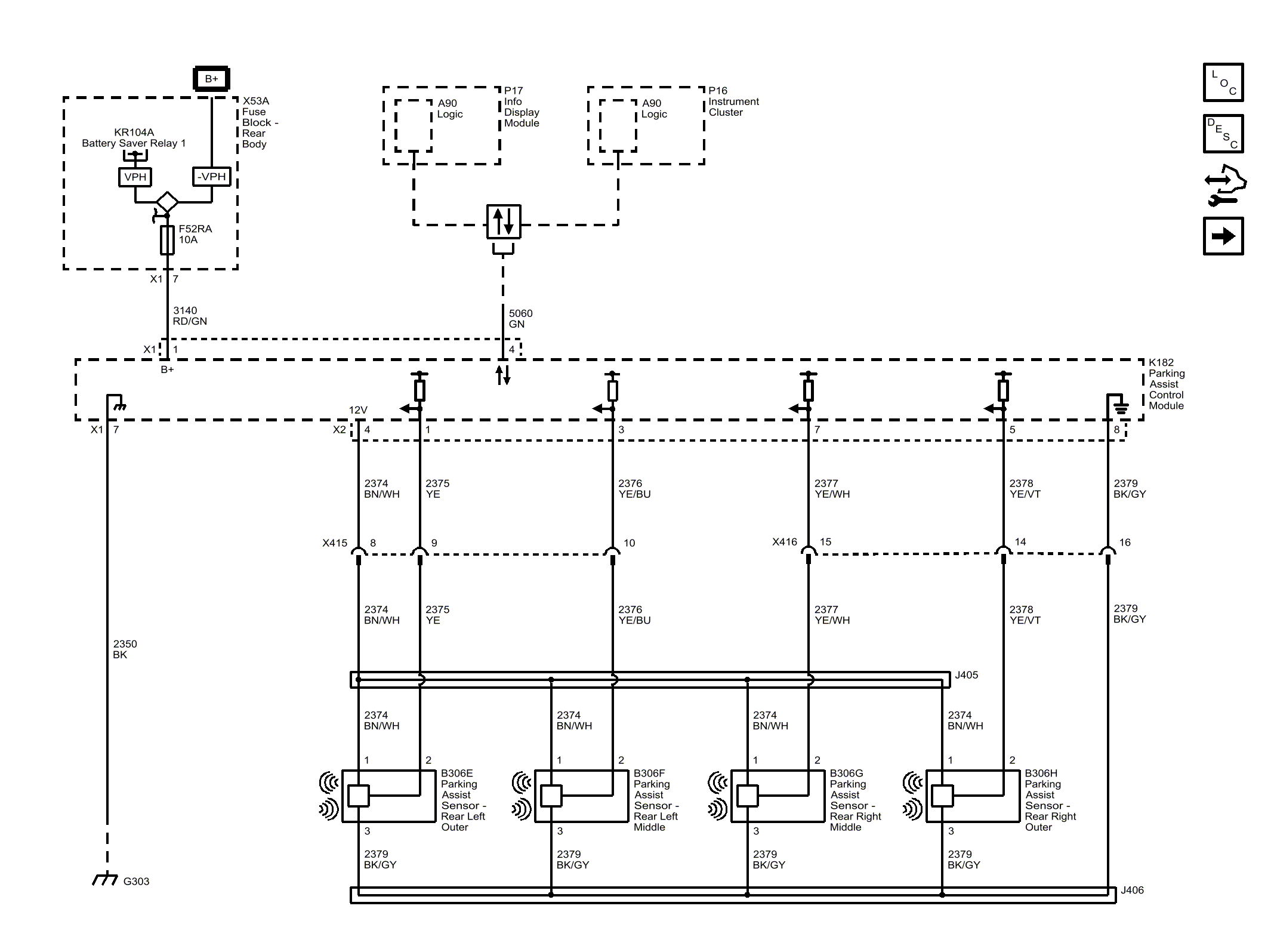

Fig 1: Park Assist - Power, Ground, Serial Data and Rear Sensors

GM4447416

Courtesy of GENERAL MOTORS COMPANY
