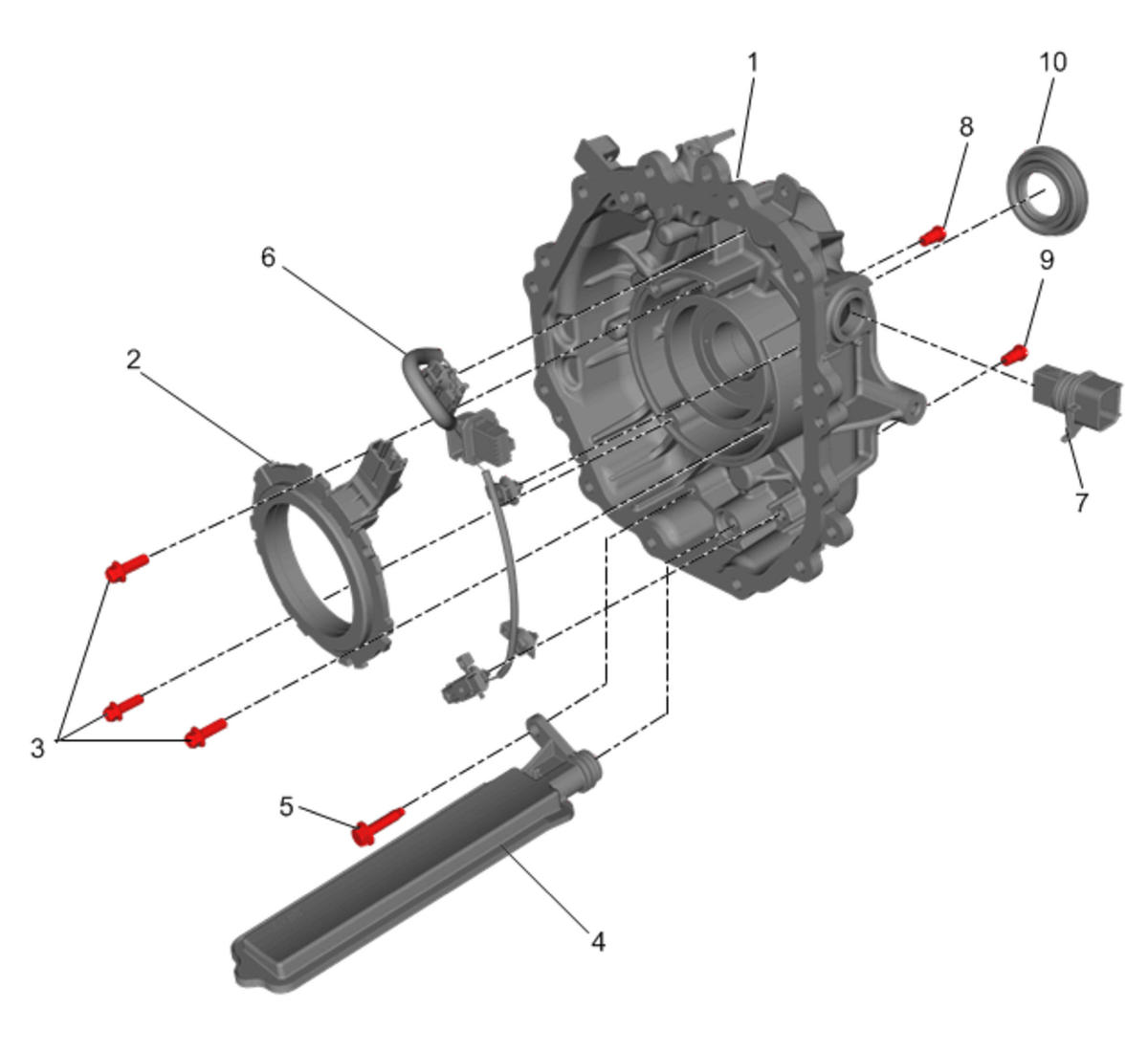

Transmission Case Cover Assembly
| Callout | Component Name |
|---|---|
| 1 | Automatic Transmission Case Cover |
| 2 | Drive Motor Position Sensor Stator |
| 3 | Drive Motor Position Sensor Stator Bolt (Qty: 3) |
| 4 | Automatic Transmission Fluid Filter |
| 5 | Automatic Transmission Fluid Filter Bolt |
| 6 | Automatic Transmission Control Wiring Harness |
| 7 | Wiring Harness Electrical Connector |
| 8 | Transmission Fluid Drain Plug |
| 9 | Transmission Oil Level Check Plug |
| 10 | Front Wheel Drive Shaft Oil Seal (LHS) |
