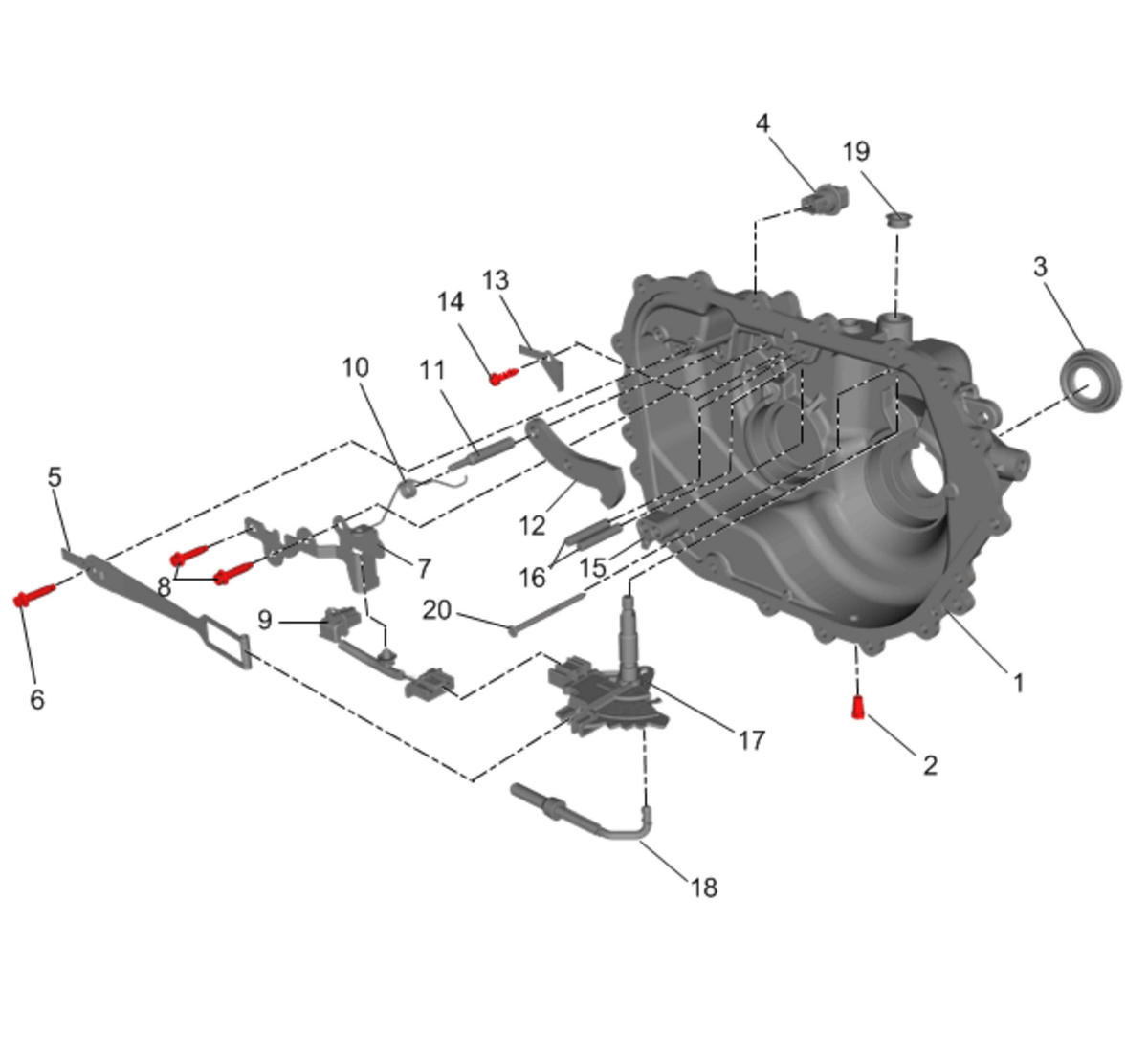

| 1 |
Automatic Transmission Case |
| 2 |
Transmission Fluid Drain Plug |
| 3 |
Front Wheel Drive Shaft Oil Seal (RHS) |
| 4 |
Wiring Harness Electrical Connector |
| 5 |
Manual Shift Detent Lever Spring |
| 6 |
Manual Shift Detent Lever Spring Bolt |
| 7 |
Park Pawl Actuator Bracket |
| 8 |
Park Pawl Actuator Bracket Bolt (Qty: 2) |
| 9 |
Automatic Transmission Control Wiring Harness |
| 10 |
Park Pawl Spring |
| 11 |
Park Pawl Shaft |
| 12 |
Park Pawl Shaft |
| 13 |
Park Pawl Actuator Bracket |
| 14 |
Park Pawl Actuator Bracket Bolt |
| 15 |
Park Pawl Actuator Guide |
| 16 |
Park Pawl Actuator Guide Pin (Qty: 2) |
| 17 |
Manual Shift Shaft Position Switch |
| 18 |
Park Pawl Actuator |
| 19 |
Manual Shift Shaft Seal |
| 20 |
Manual Shift Shaft Pin |
