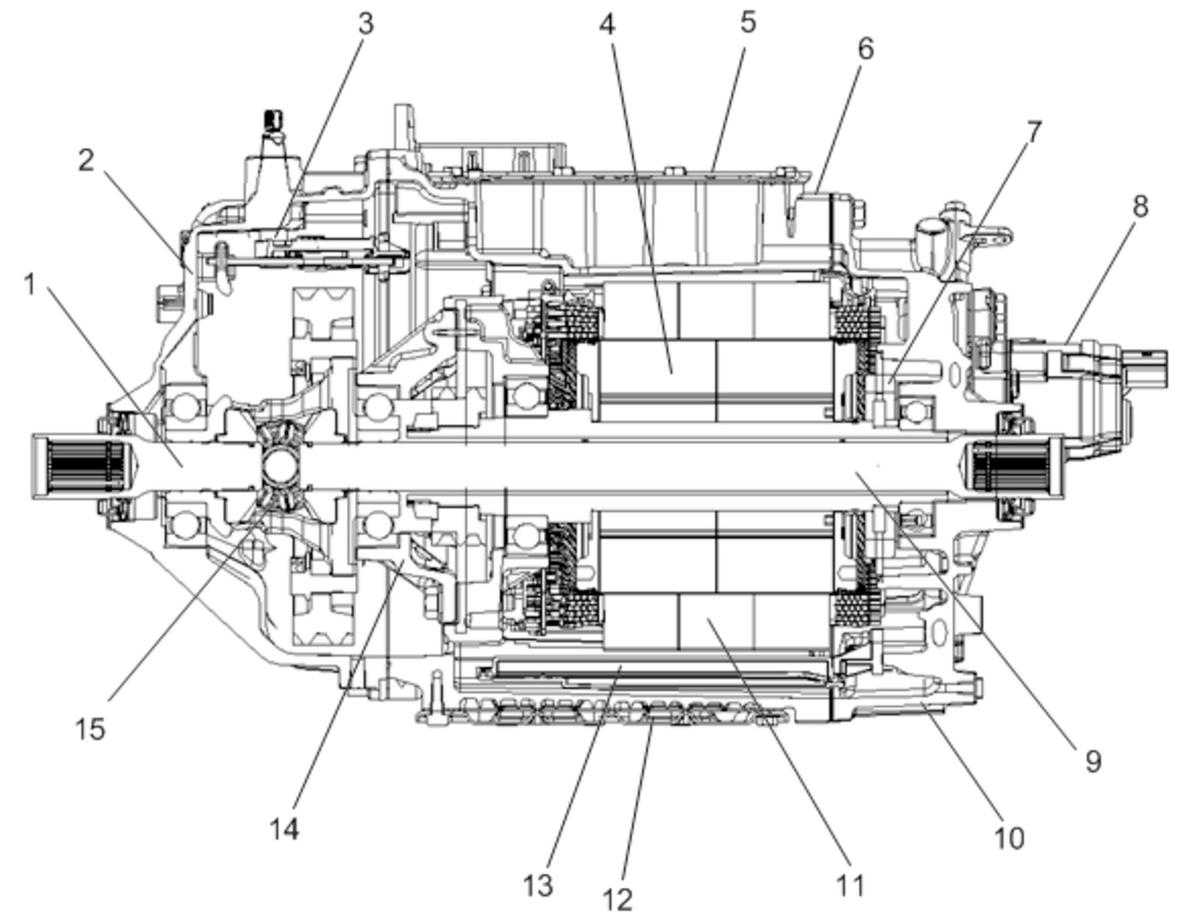

| 1 |
Output Shaft Assembly (RHS) |
| 2 |
Automatic Transmission Case |
| 3 |
Manual Shift Shaft Position Switch Assembly |
| 4 |
Drive Motor Rotor Assembly |
| 5 |
Shift Shaft Cover (Oil Sump) |
| 6 |
Drive Motor Housing |
| 7 |
Drive Motor Position Sensor Stator Assembly |
| 8 |
Automatic Transmission Fluid Pump Assembly |
| 9 |
Output Shaft Assembly (LHS) |
| 10 |
Automatic Transmission Case Cover |
| 11 |
Drive Motor Stator Assembly |
| 12 |
Shift Shaft Cover (Coolant Sump) |
| 13 |
Automatic Transmission Fluid Filter Assembly |
| 14 |
Center Support |
| 15 |
Front Differential Assembly |
