Installation Procedure

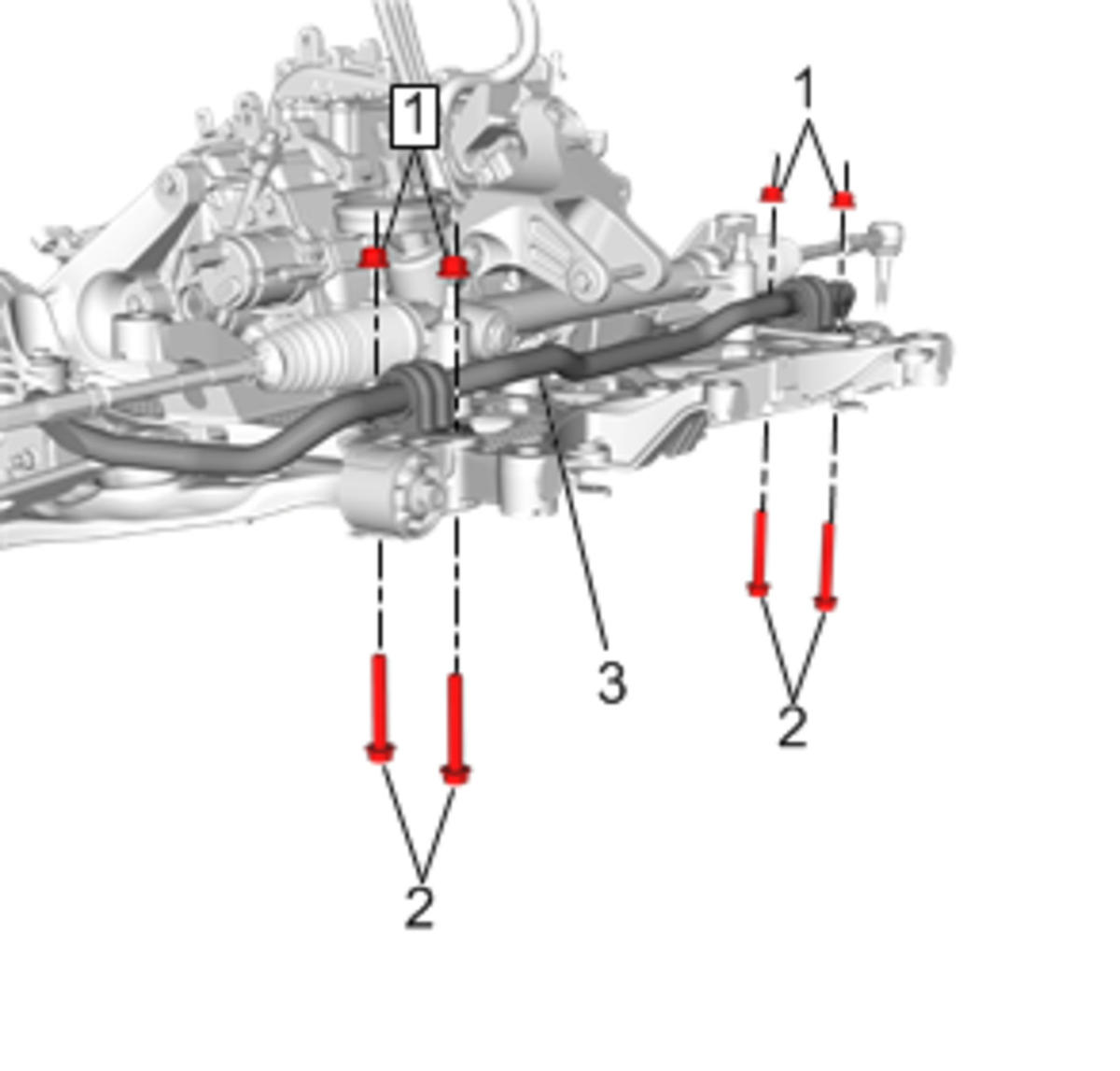

    Fig 1: Front Lower Control Arm Rear Nuts, Bolts And Front Stabilizer Shaft
    GM4544139Courtesy of GENERAL MOTORS COMPANY
  1. Install Front Stabilizer Shaft (3) @ Drivetrain and Front Suspension Crossmember
  2. Install Front Lower Control Arm Rear Bolts (2) (Qty: 4)
    3. CAUTION:

    Refer to Fastener Caution

  3. Install and tighten Front Lower Control Arm Rear Nuts (1) (Qty: 4) to 100 N.m (74 lb ft)
    4. Fig 2: Drive Motor Rear Mount
    GM4538569Courtesy of GENERAL MOTORS COMPANY
  4. Install Drive Motor Rear Mount (1). Refer to Drive Motor Rear Mount Replacement
    5. Fig 3: Automatic Transmission and Drivetrain and Front Suspension Frame Assembly
    GM4532514Courtesy of GENERAL MOTORS COMPANY
  5. Install Automatic Transmission and Drivetrain and Front Suspension Frame Assembly (1). Refer to Drivetrain and Front Suspension Frame Removal and Installation
