Installation Procedure

    Fig 1: Steering Column Support Bracket Nuts
    GM4539435Courtesy of GENERAL MOTORS COMPANY
  1. Steering Column at Vehicle - Install
    2. CAUTION:

    Refer to Fastener Caution .

  2. Steering Column Upper Support Bracket Nut - Install and tighten to 22 N.m (16 lb ft)
    3. Fig 2: Steering Column Lower Support Bracket Bolt
    GM4539424Courtesy of GENERAL MOTORS COMPANY
  3. Steering Column Lower Support Bracket Bolt - Install and tighten to 22 N.m (16 lb ft)
  4. Install the instrument panel wiring harness clips to the steering column.
  5. Connect the electric connectors to the steering column.

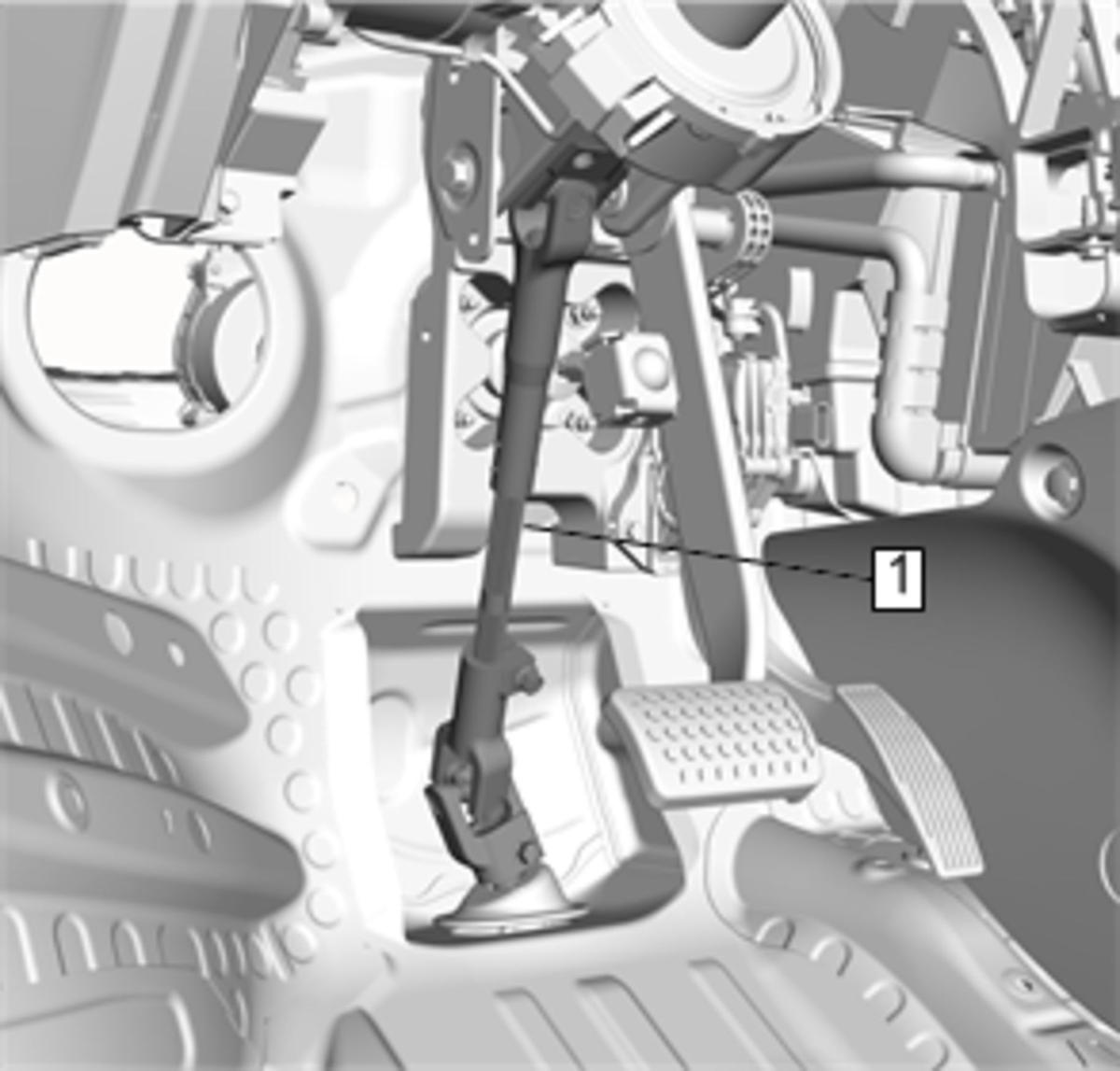

    6. Fig 3: Intermediate Steering Shaft
    GM4539422Courtesy of GENERAL MOTORS COMPANY
  6. Intermediate Steering Shaft - Install - Intermediate Steering Shaft Replacement
    7. Fig 4: Floor Front Air Outlet Duct - Left Side
    GM4539405Courtesy of GENERAL MOTORS COMPANY
  7. Floor Front Air Outlet Duct - Left Side - Install - Floor Front Air Outlet Duct Replacement - Left Side
    8. Fig 5: Instrument Panel Lower Airbag and Bracket Assembly
    GM4530372Courtesy of GENERAL MOTORS COMPANY
  8. Instrument Panel Lower Airbag and Bracket Assembly - Install - Instrument Panel Lower Airbag Bracket Replacement
    9. Fig 6: Instrument Panel Knee Bolster
    GM4539373Courtesy of GENERAL MOTORS COMPANY
  9. Instrument Panel Knee Bolster - Install - Instrument Panel Knee Bolster Replacement
    10. Fig 7: Turn Signal Switch Bracket
    GM4539445Courtesy of GENERAL MOTORS COMPANY
  10. Turn Signal Switch Bracket - Install - Turn Signal Switch Bracket Replacement
    11. Fig 8: Steering Column Lower Trim Cover
    GM4539371Courtesy of GENERAL MOTORS COMPANY
  11. Steering Column Lower Trim Cover - Install - Steering Column Lower Trim Cover Replacement
  12. Steering Column Upper Trim Cover at Steering Column Lower Trim Cover - Install - Steering Column Upper Trim Cover Replacement
  13. Steering Wheel - Install - Steering Wheel Replacement
  14. Steering Wheel Airbag - Install - Steering Wheel Airbag Replacement
  15. Enable the SIR System. SIR Disabling and Enabling
  16. Program the electronic power steering control module. Control Module References
  17. Calibrate the steering angle sensor. Steering Wheel Angle Sensor Centering
