Engine Compartment Top

Engine Compartment Top

Items
1: K20 Engine Control Module K20 Engine Control Module X1K20 Engine Control Module X2K20 Engine Control Module X3
2: K1 14V Power Module K1 14V Power Module X1K1 14V Power Module X2K1 14V Power Module X3K1 14V Power Module X4
3: G35 Hybrid/EV Electronics Coolant Pump G35 Hybrid/EV Electronics Coolant Pump
4: T24 Battery Charger - DC T24 Battery Charger - DC X1T24 Battery Charger - DC X2T24 Battery Charger - DC X3T24 Battery Charger - DC X4T24 Battery Charger - DC X5T24 Battery Charger - DC X6T24 Battery Charger - DC X7T24 Battery Charger - DC X8T24 Battery Charger - DC X9 (-CBT)
5: G37 Hybrid/EV Battery Pack Coolant Pump G37 Hybrid/EV Battery Pack Coolant Pump
6: G36 Auxiliary Heater Coolant Pump G36 Auxiliary Heater Coolant Pump

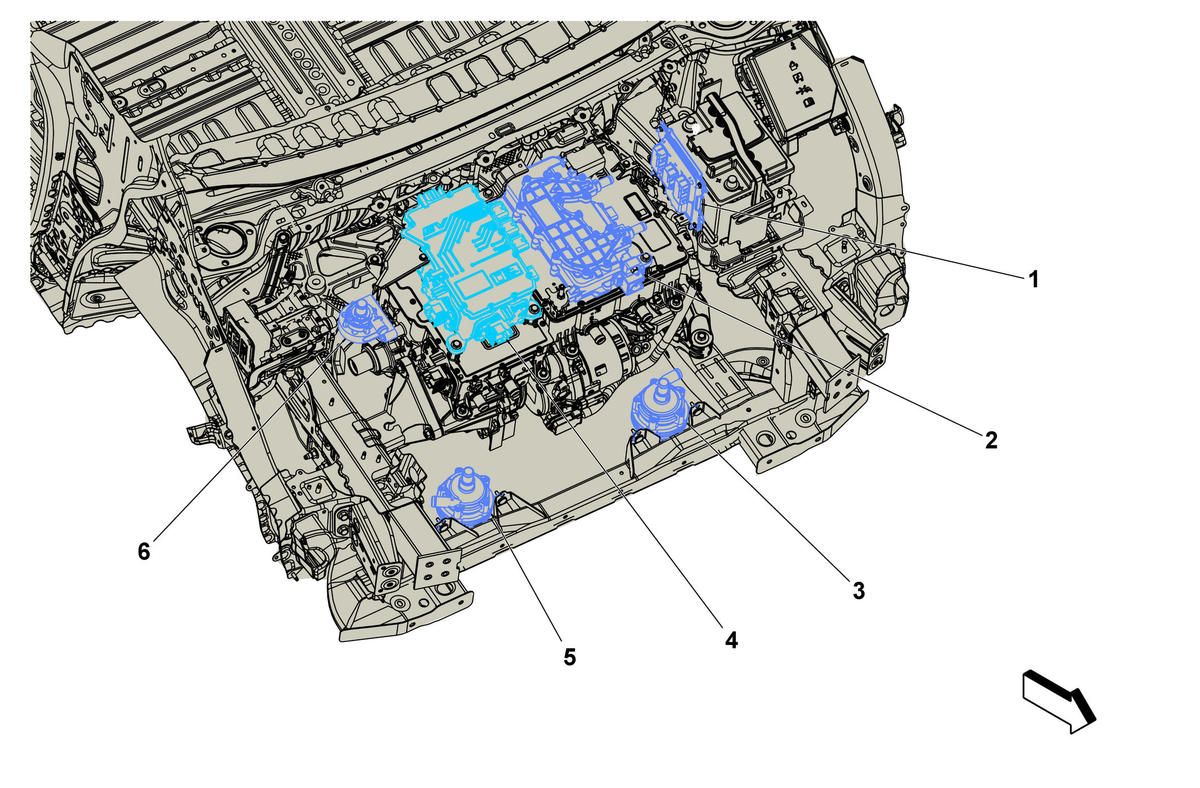

Fig 1: Engine Compartment Top
GM4539838Courtesy of GENERAL MOTORS COMPANY
