Radiator Protector Replacement

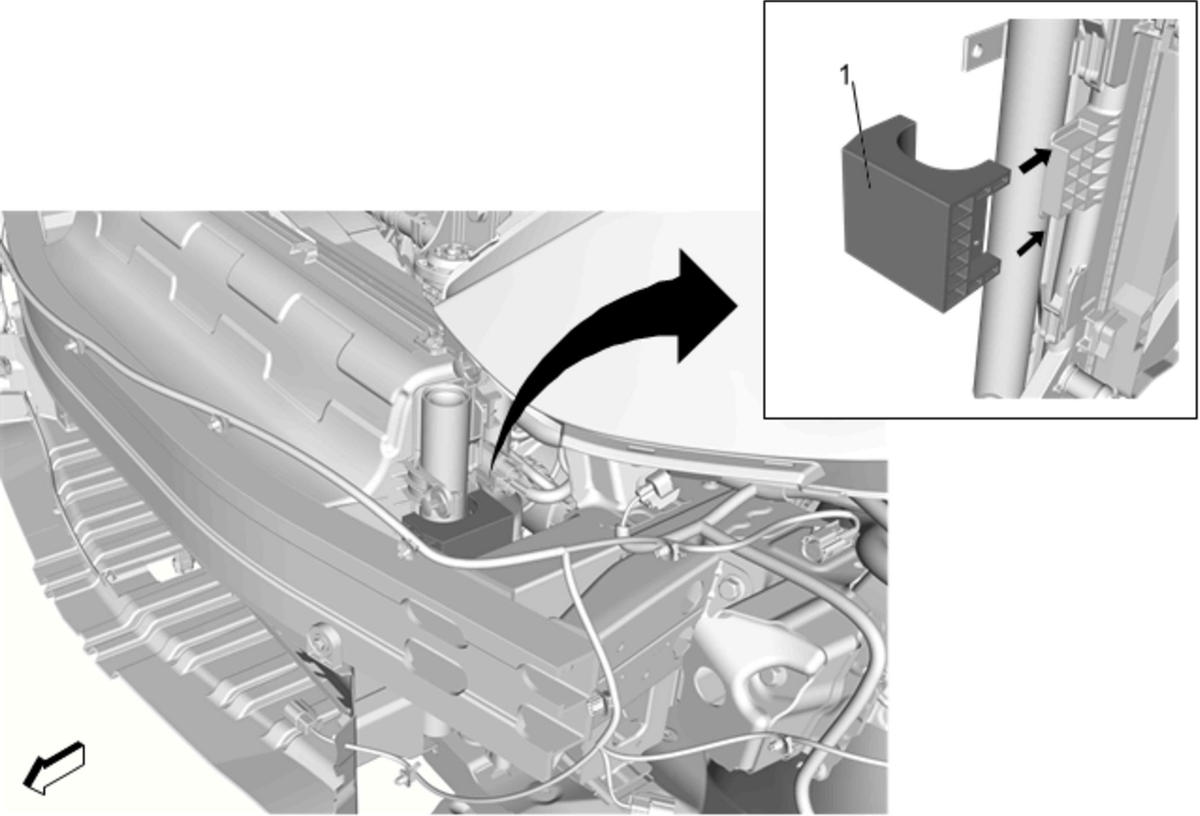

Fig 1: Radiator Protector
GM4503277Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove Front Bumper Fascia. Refer to Front Bumper Fascia Replacement (North America)Front Bumper Fascia Replacement (Europe, Korea)
1 Radiator Protector
Procedure
Using a flat bladed tool, work the protector off of the radiator towards the drivers slide of the vehicle. Reposition the radiator as necessary.
