Radiator Lower Insulator Replacement
Radiator Lower Insulator Replacement

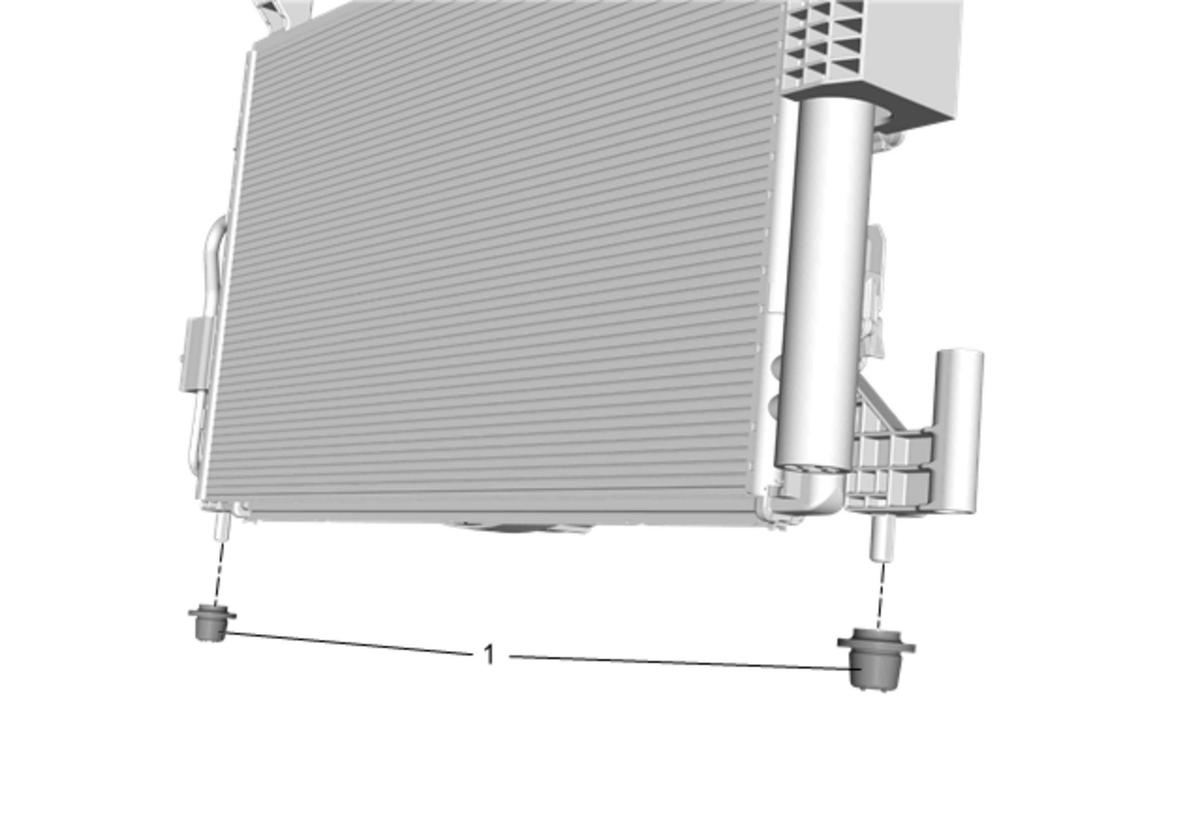

Fig 1: Radiator Lower Insulator
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Remove Front Bumper Fascia. Refer to
Front Bumper Fascia Replacement (North America)
Front Bumper Fascia Replacement (Europe, Korea)
Remove Radiator Upper Bracket. Refer to
Radiator Upper Bracket Replacement
1
Radiator Lower Insulator
