Removal Procedure
WARNING:
Before conducting any repair to this high voltage cooling system, it is necessary to determine/verify whether no high-voltage system faults exist. If high-voltage faults exist, follow published DTC diagnostics/repair procedures prior to performing any cooling system repairs. Failure to correct High Voltage Faults before working on the high voltage cooling system could result in personal injury or death.
- Turn vehicle power OFF and remove all keyless entry transmitters from the vehicle and secure in a place outside the vehicle.
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
- Drain the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
- Remove Front Compartment Front Sight Shield. Refer to Front Compartment Front Sight Shield Replacement
- Remove Drive Motor Battery Radiator Surge Tank Bracket Bolt (1)
- Position aside drive motor battery radiator surge tank (2).

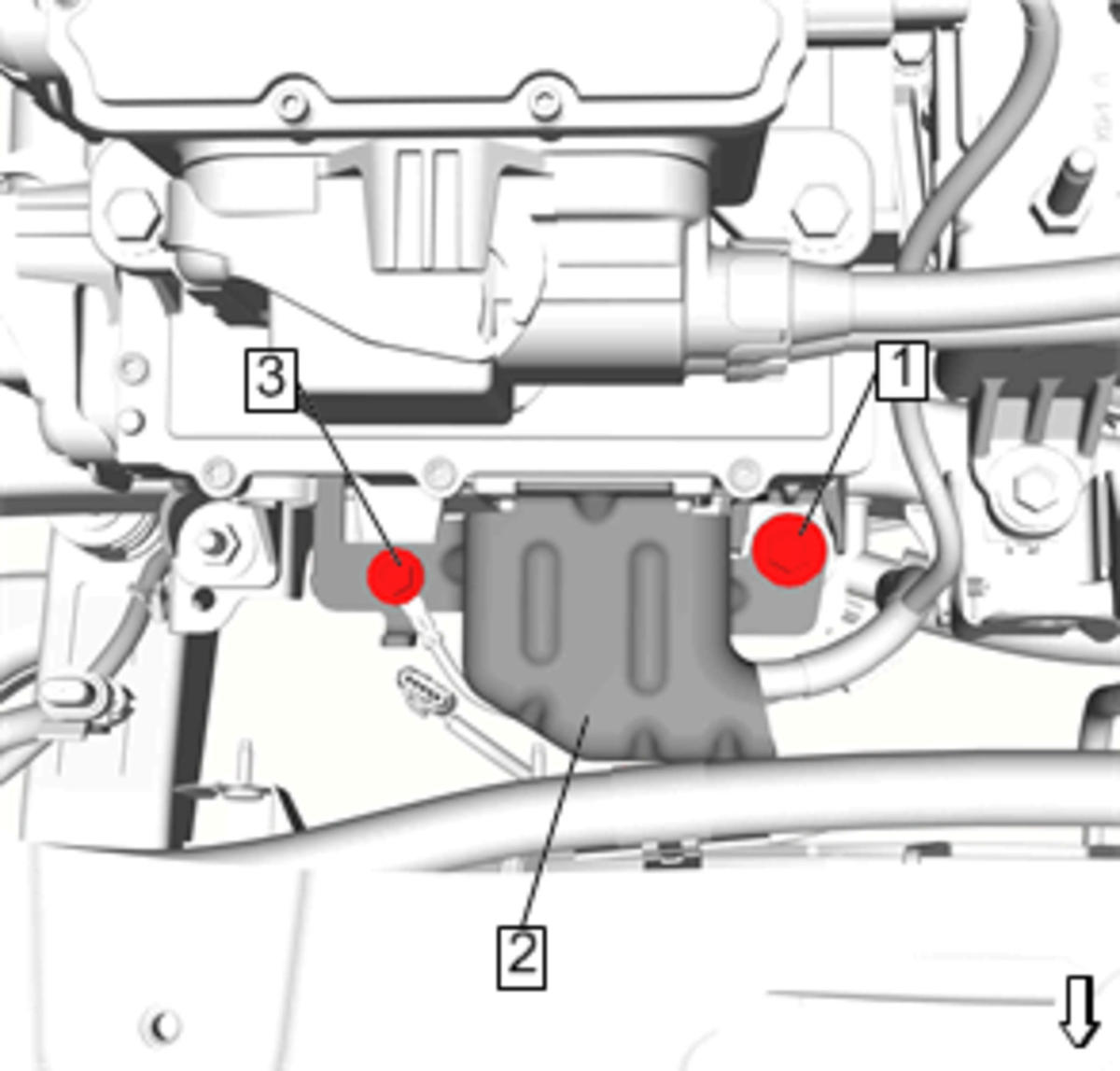

- Remove Drive Motor Power Inverter Module Shield Bolt (1)
- Remove Ground Cable Bolt (3) @ Drive Motor Power Inverter Module
- Remove Drive Motor Power Inverter Module Shield (2)

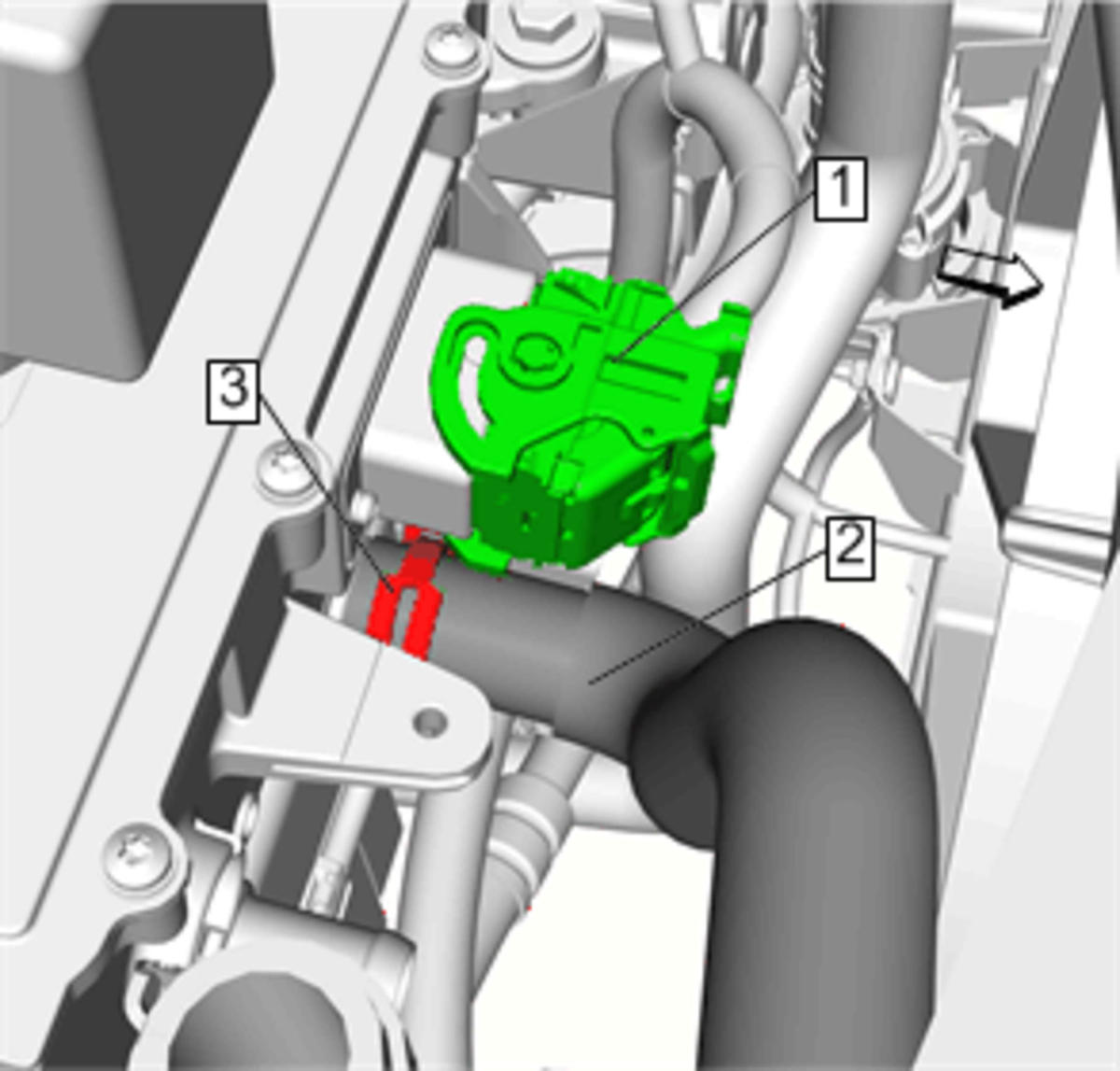

- Disconnect Electrical Connector (1)
- Disengage Clamp (3). Refer to Hose Clamp Replacement Guidelines - Spring Type
- Remove Drive Motor Generator Control Module Radiator Outlet Hose (2)
- Disengage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
- Remove Drive Motor Generator Control Module Radiator Outlet Hose (2)
