Installation Procedure

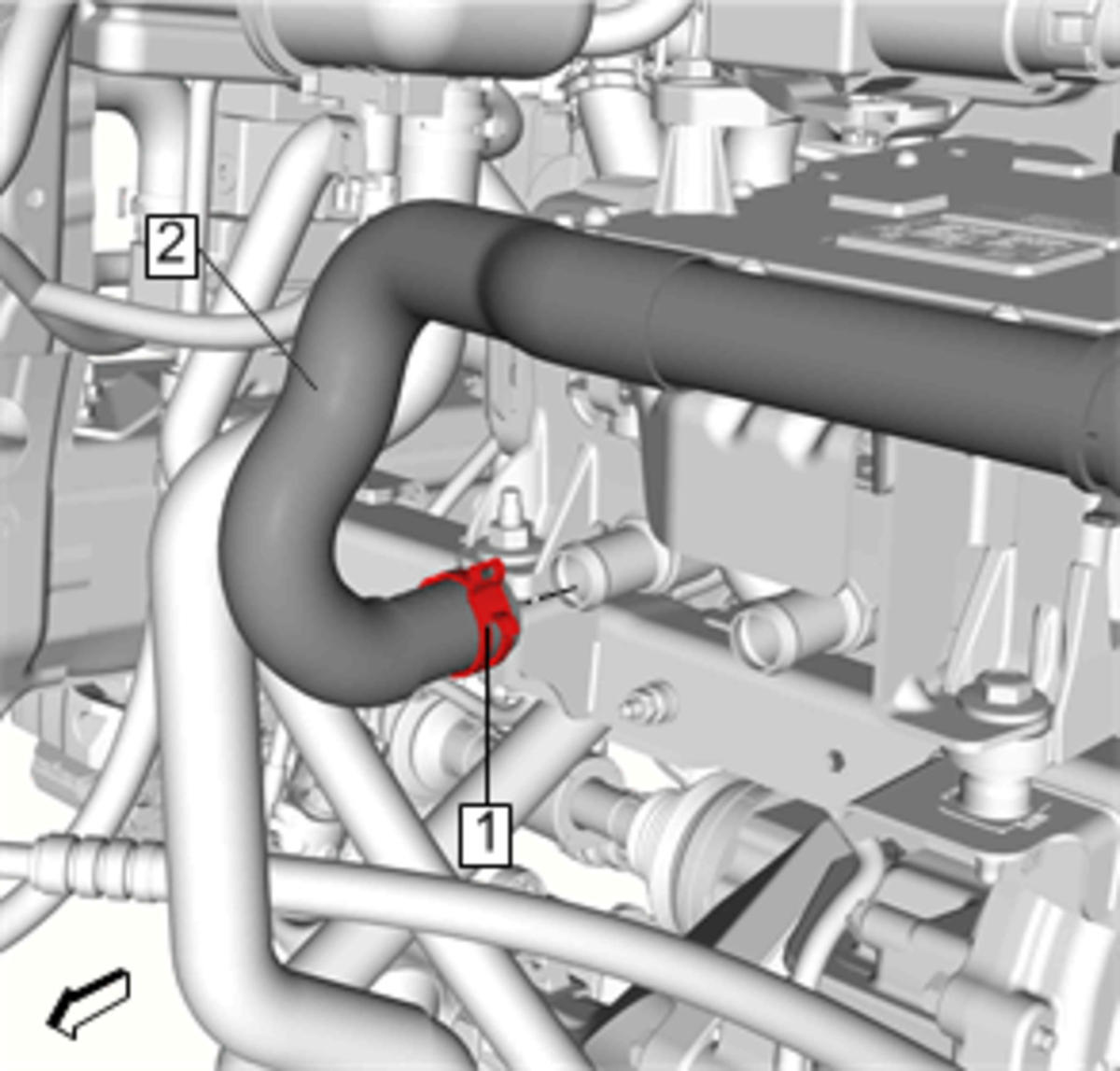

    Fig 1: Drive Motor Generator Control Module Cooling Outlet Hose And Clamp
    GM4497435Courtesy of GENERAL MOTORS COMPANY
  1. Install Drive Motor Generator Control Module Cooling Outlet Hose (2)
  2. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  3. Position the surge tank and install the RESS surge tank bracket. Refer to Radiator Surge Tank Support Bracket Replacement (RESS)

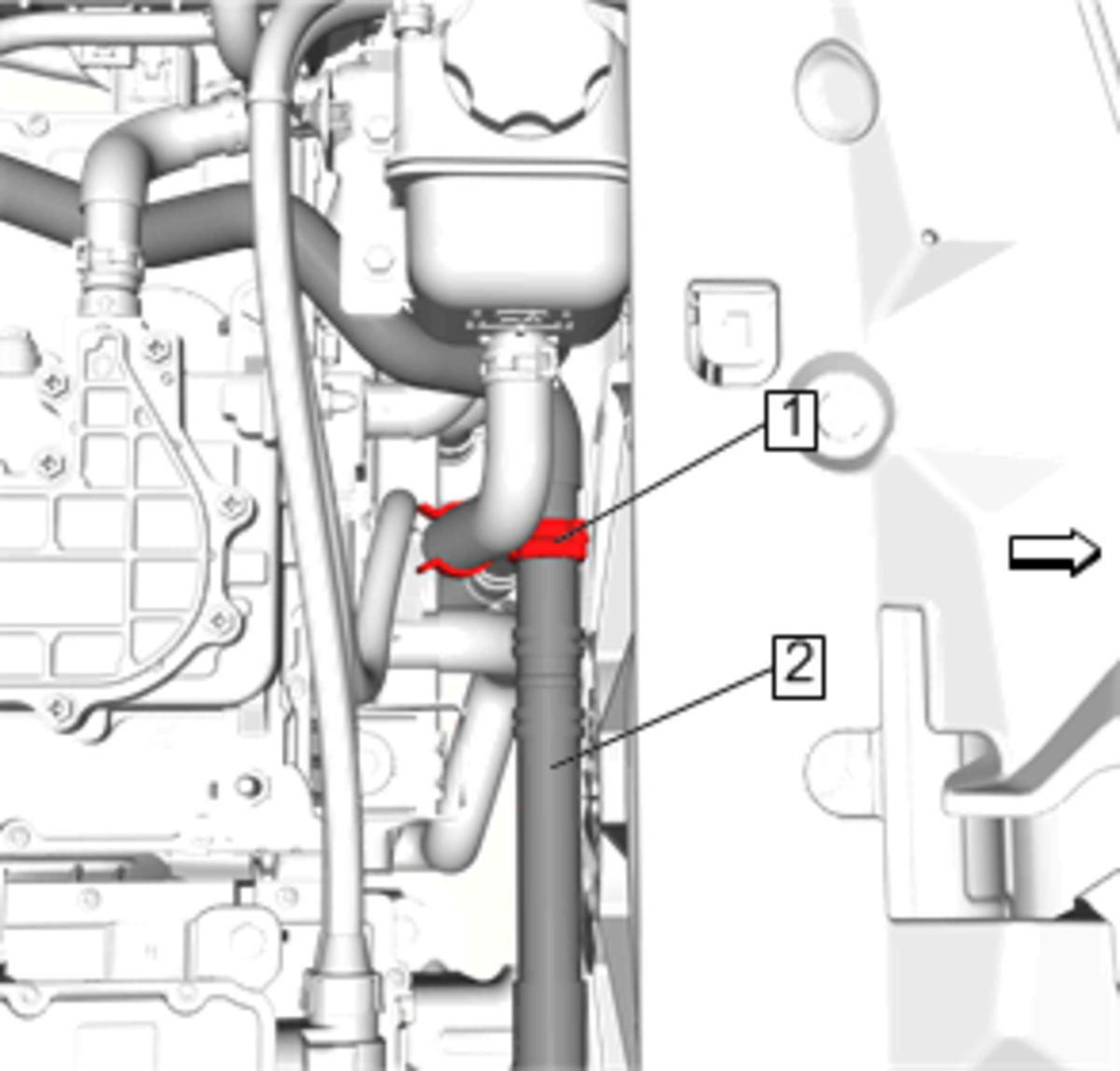

    4. Fig 2: Drive Motor Generator Control Module Cooling Outlet Hose And Retainer
    GM4497434Courtesy of GENERAL MOTORS COMPANY
  4. Install Retainer (1)
  5. Install Drive Motor Generator Control Module Cooling Outlet Hose (2)

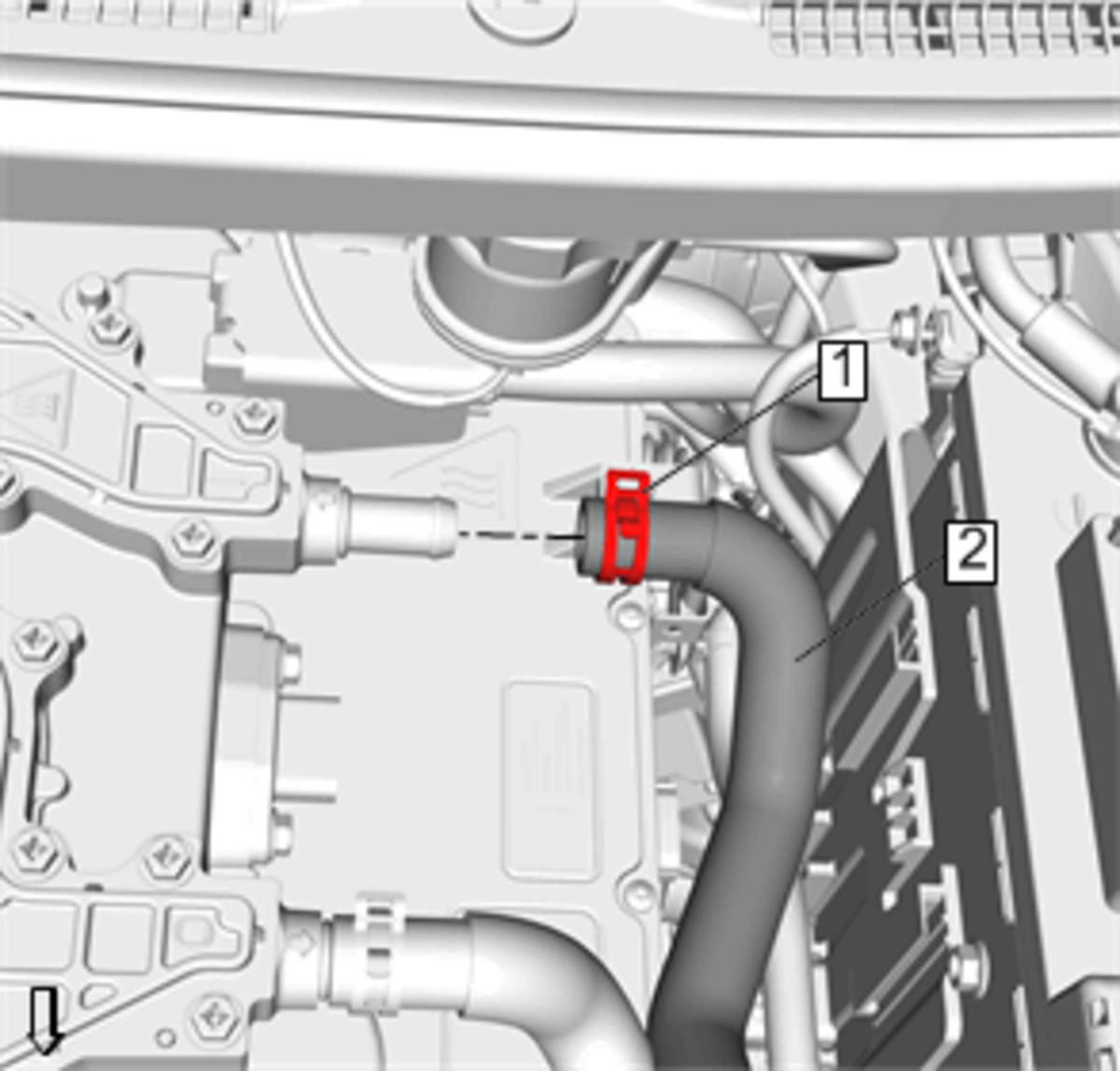

    6. Fig 3: Drive Motor Generator Control Module Cooling Outlet Hose
    GM4497433Courtesy of GENERAL MOTORS COMPANY
  6. Install Drive Motor Generator Control Module Cooling Outlet Hose (2)
  7. Engage Clamp (1). Refer to Hose Clamp Replacement Guidelines - Spring Type
  8. Fill the drive motor generator power inverter module cooling system. Refer to Drive Motor Generator Power Inverter Module Cooling System Draining and Filling
  9. Check the cooling system for leaks.
