Drive Motor Battery Coolant Level Sensor Replacement
Drive Motor Battery Coolant Level Sensor Replacement

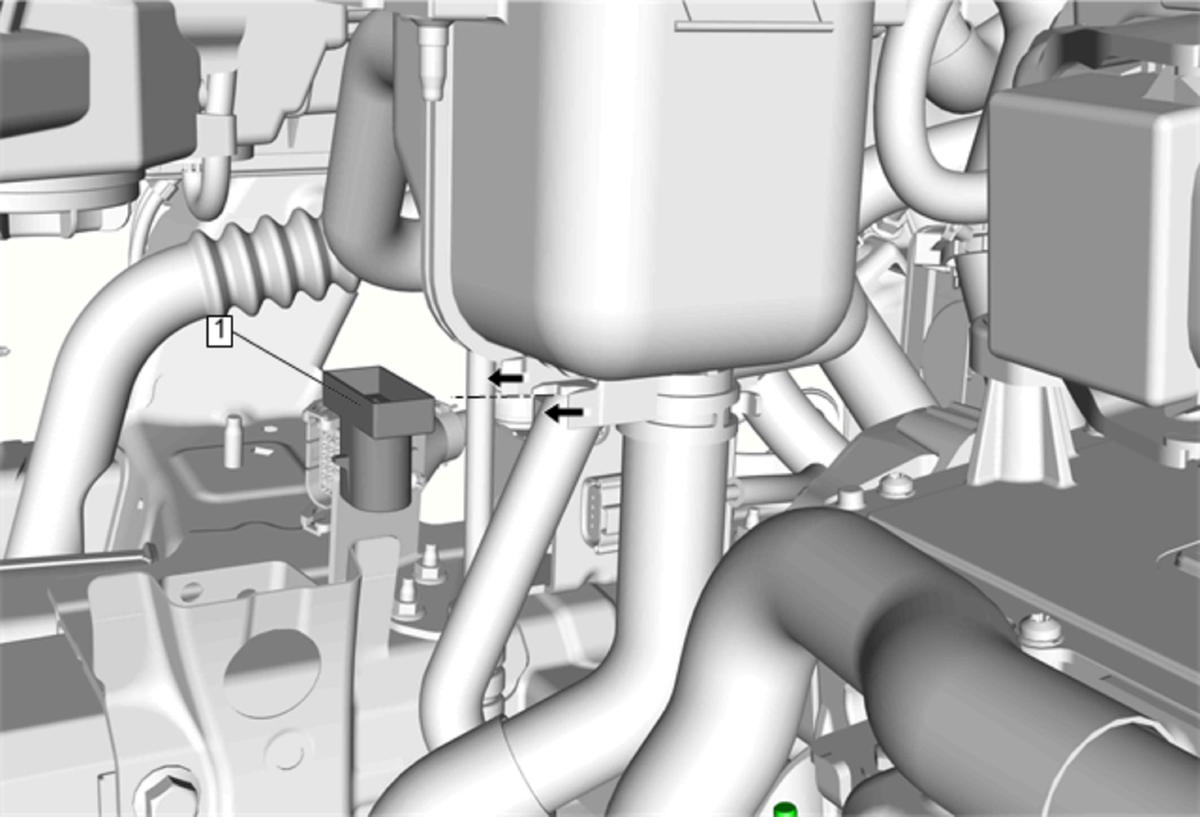

Fig 1: Drive Motor Battery Coolant Level Sensor
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedures
Disconnect the electrical connector from the coolant level sensor.
1
Drive Motor Battery Coolant Level Sensor
