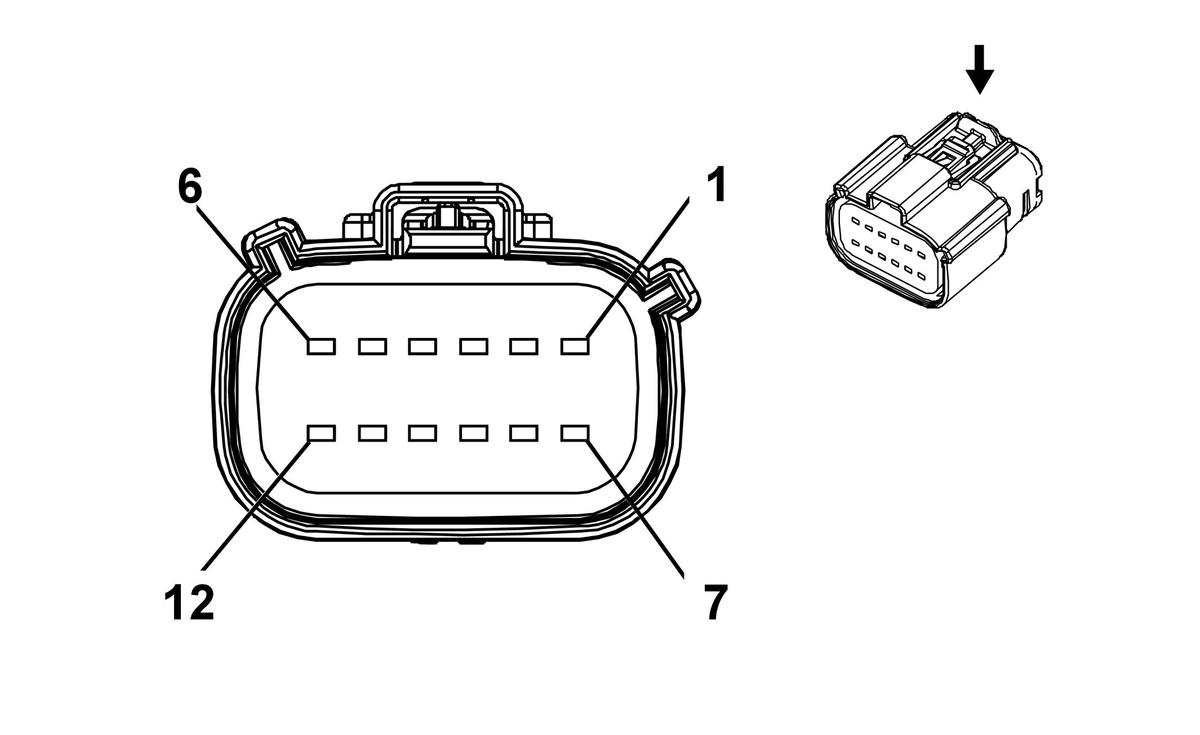

K190 Power Line Communication Module X2 (CBT)
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 33472-1259
- Service Connector: 19333239
- Description: 12-Way F 150 MX Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
19300635 |
J-35616-2A (GY) |
J-38125-217 |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BU/BN |
3787 |
High Voltage Energy Management Communication Control |
I |
CBT |
| 2 |
0.5 |
WH |
3832 |
High Speed GMLAN Serial Data (-) 6 |
I |
CBT |
| 3 |
0.5 |
WH |
3832 |
High Speed GMLAN Serial Data (-) 6 |
I |
CBT |
| 4 |
0.5 |
YE |
3831 |
High Speed GMLAN Serial Data (+) 6 |
I |
CBT |
| 5 |
0.5 |
YE |
3831 |
High Speed GMLAN Serial Data (+) 6 |
I |
CBT |
| 6 - 7 |
- |
- |
- |
Not Occupied |
- |
- |
| 8 |
0.5 |
GY/GN |
3954 |
Control Pilot Signal 1 |
I |
CBT |
| 9 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
