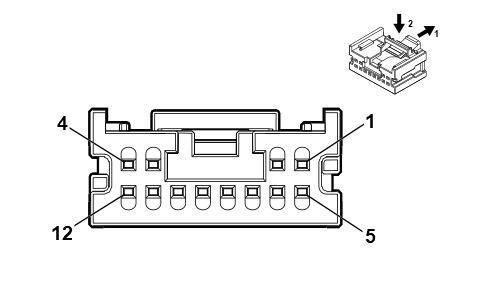

A20 Radio/HVAC Controls
|
|
Connector Part Information
- Harness Type: Instrument Panel
- OEM Connector: 34824-5125
- Service Connector: 13507122
- Description: 12-Way F Mini 50 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray Name |
Core Crimp |
Insulation Crimp |
| I |
13575568 |
J35616-65B (LT BU) |
J-38125-12A |
Not Available |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
GN/BK |
2805 |
Radio Keypad Ground Return |
I |
- |
| 2 |
0.35 |
BU/GY |
2808 |
Radio Keypad Dimming Control |
I |
- |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
GN/WH |
7530 |
Local Interconnect Network Serial Data Bus 8 |
I |
- |
| 5 |
0.35 |
BN/WH |
2809 |
Radio Keypad Power Signal |
I |
- |
| 6 |
0.35 |
VT/WH |
2810 |
Radio Keypad Button Signal |
I |
- |
| 7 |
0.35 |
BU |
4315 |
Radio Volume Up Signal |
I |
- |
| 8 |
0.35 |
GY/BN |
4314 |
Radio Volume Down Signal |
I |
- |
| 9 |
0.35 |
BU/RD |
2807 |
Radio Keypad Voltage Reference |
I |
- |
| 10 |
0.35 |
BK/YE |
2806 |
Radio Keypad Low Reference |
I |
- |
| 11 |
0.35 |
BK/WH |
551 |
Signal Ground |
I |
- |
| 12 |
- |
- |
- |
Not Occupied |
- |
- |
