Hybrid/EV Energy Storage System - Component Locator - Disassembled Views
>>
Disassembled Views
>>
Battery Harness Module Assembly
Battery Harness Module Assembly

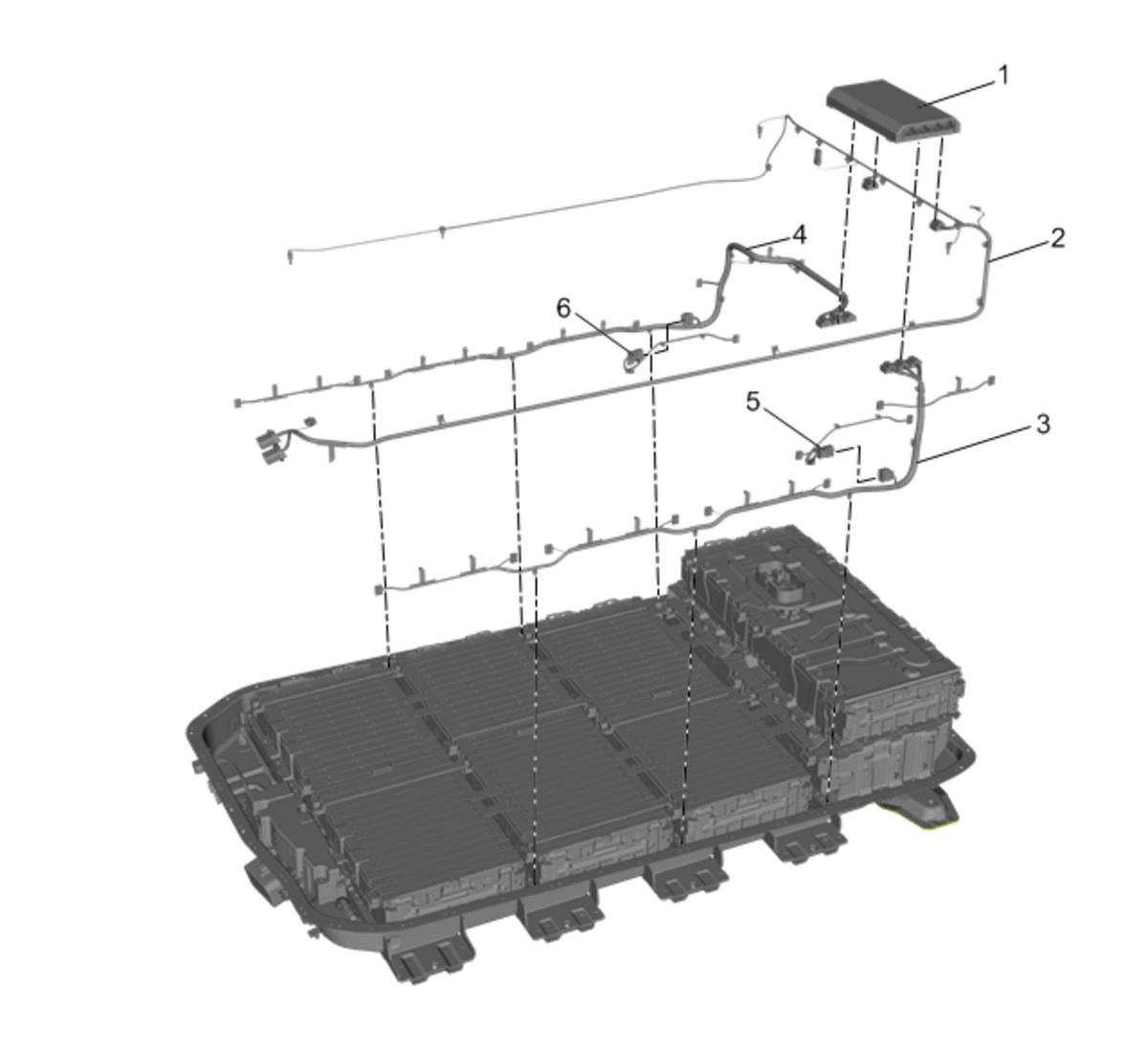

Fig 1: Battery Harness Module
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Battery Energy Control Module
2
Wiring Control Harness Assembly
3
Wiring Sensing Harness Assembly-Left
4
Wiring Sensing Harness Assembly-Right
5
Wiring Sensing Harness Assembly-Left Sub
6
Wiring Sensing Harness Assembly-Right Sub
