Hybrid/EV Energy Storage System - Component Locator - Disassembled Views
>>
Disassembled Views
>>
Battery Cover Assembly
Battery Cover Assembly

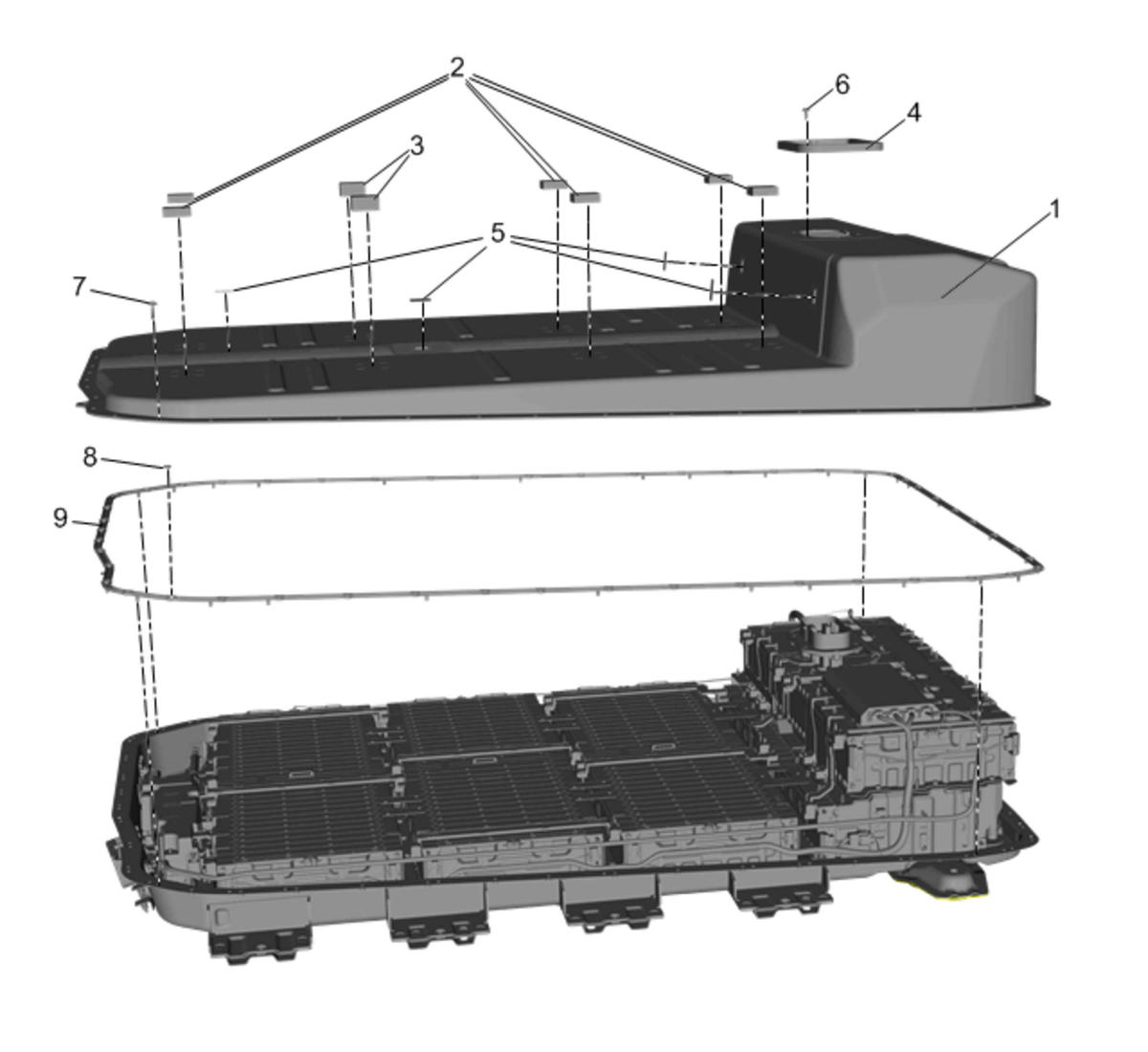

Fig 1: Battery Cover
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
High Voltage Battery Cover
2
Snubber Type 1
3
Snubber Type 2
4
Manual Disconnect Insulator
5
Valve Vent
6
Bolt
7
Bolt
8
Sealing Gasket Washer
9
Battery Sealing Gasket
