Battery Cooling Assembly

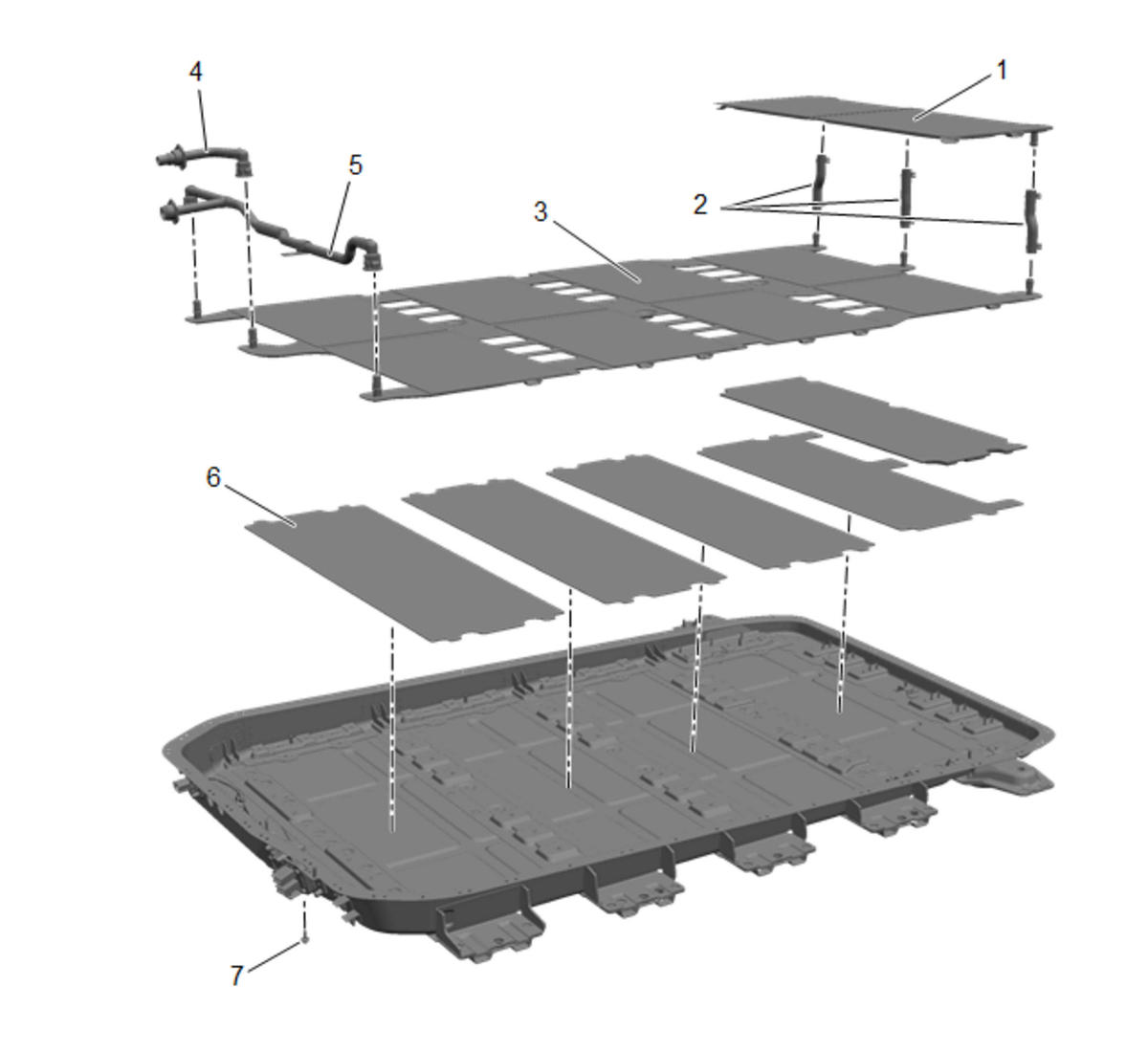

Fig 1: Battery Cooling
GM4584155Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Cooling Plate-Upper
2 Cooling Hose
3 Cooling Plate-Lower
4 Cell Battery Cooling Manifold Assembly-Outlet
5 Cell Battery Cooling Manifold Assembly-Inlet
6 Insulation Pad
