Hybrid/EV Energy Storage System - Component Locator - Disassembled Views
>>
Disassembled Views
>>
Battery Connector Assembly
Battery Connector Assembly

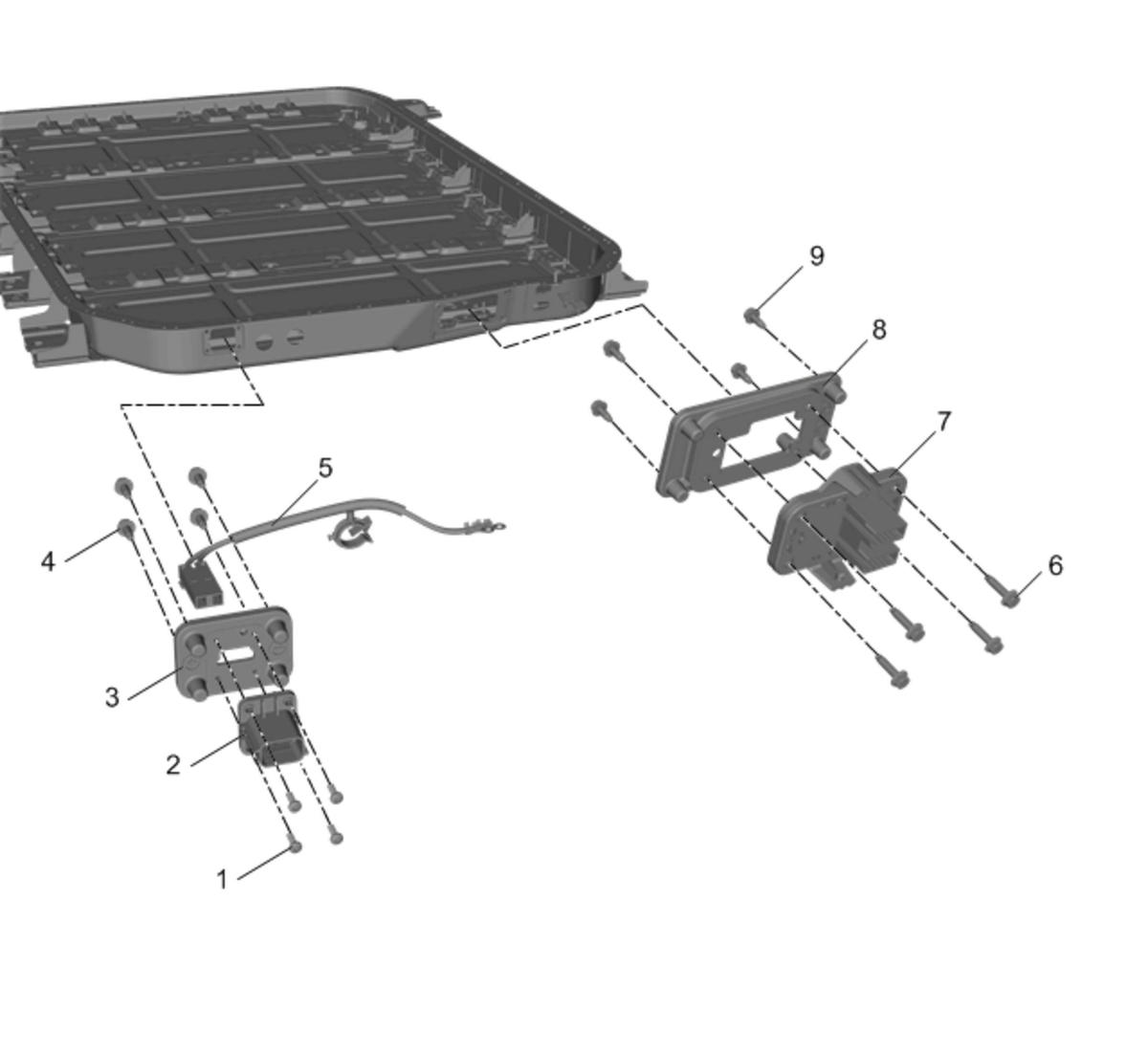

Fig 1: Battery Connector
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Bolt
2
High Voltage X4 Connector Header
3
High Voltage X4 Connector Block Assembly
4
Bolt
5
High Voltage X4 Connector Cable Assembly
6
Bolt
7
High Voltage X3 Connector Assembly
8
High Voltage X3 Connector Block Assembly
9
Bolt
