Hybrid/EV Energy Storage System - Component Locator - Disassembled Views
>>
Disassembled Views
>>
Battery Cell Assembly
Battery Cell Assembly

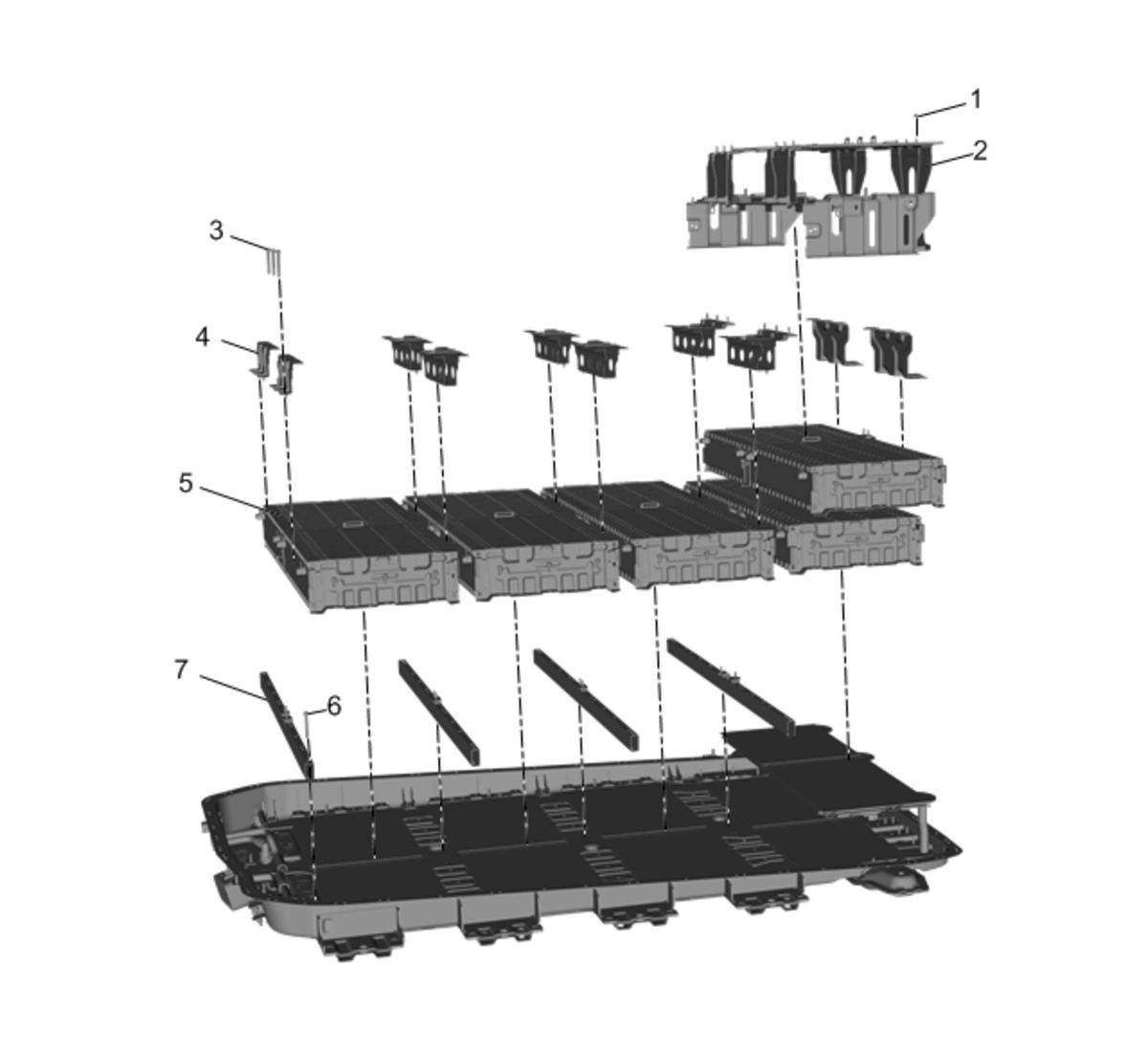

Fig 1: Battery Cell
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Bolt
2
Cell Bracket Assembly
3
Bolt
4
Cell Battery Frame Plate Assembly
5
High Voltage Battery Cell Module
6
Bolt
7
High Voltage Battery Cell Module Reinforcement
