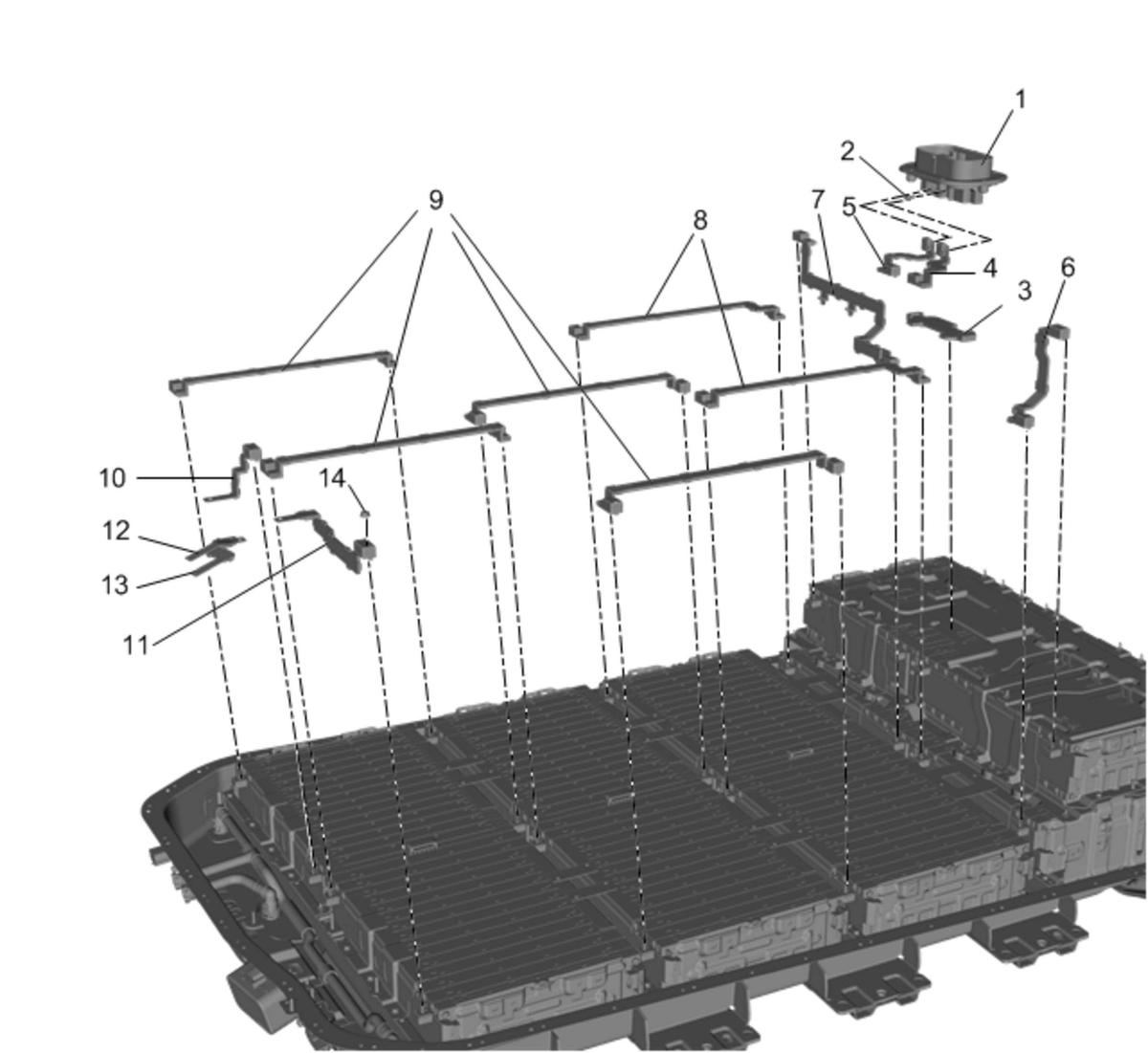

| 1 |
Manual Disconnect Base |
| 2 |
Bolt |
| 3 |
Insulation Pad-Manual Disconnect |
| 4 |
High Voltage Battery Disconnect Negative Cable Assembly |
| 5 |
High Voltage Battery Disconnect Positive Cable Assembly |
| 6 |
High Voltage Battery Positive and Negative Cable Assembly |
| 7 |
High Voltage Battery Positive and Negative Cable Assembly |
| 8 |
High Voltage Battery Positive and Negative Cable Assembly |
| 9 |
High Voltage Battery Positive and Negative Cable Assembly |
| 10 |
High Voltage Battery to Disconnect Relay Negative Cable Assembly |
| 11 |
High Voltage Battery to Disconnect Relay Positive Cable Assembly |
| 12 |
High Voltage Battery Negative Cable Assembly |
| 13 |
High Voltage Battery Positive Cable Assembly |
| 14 |
Nut |
