Removal Procedure
- Rear Compartment Lid - Open
- Battery Negative Cable - Disconnect - Battery Negative Cable Disconnection and Connection

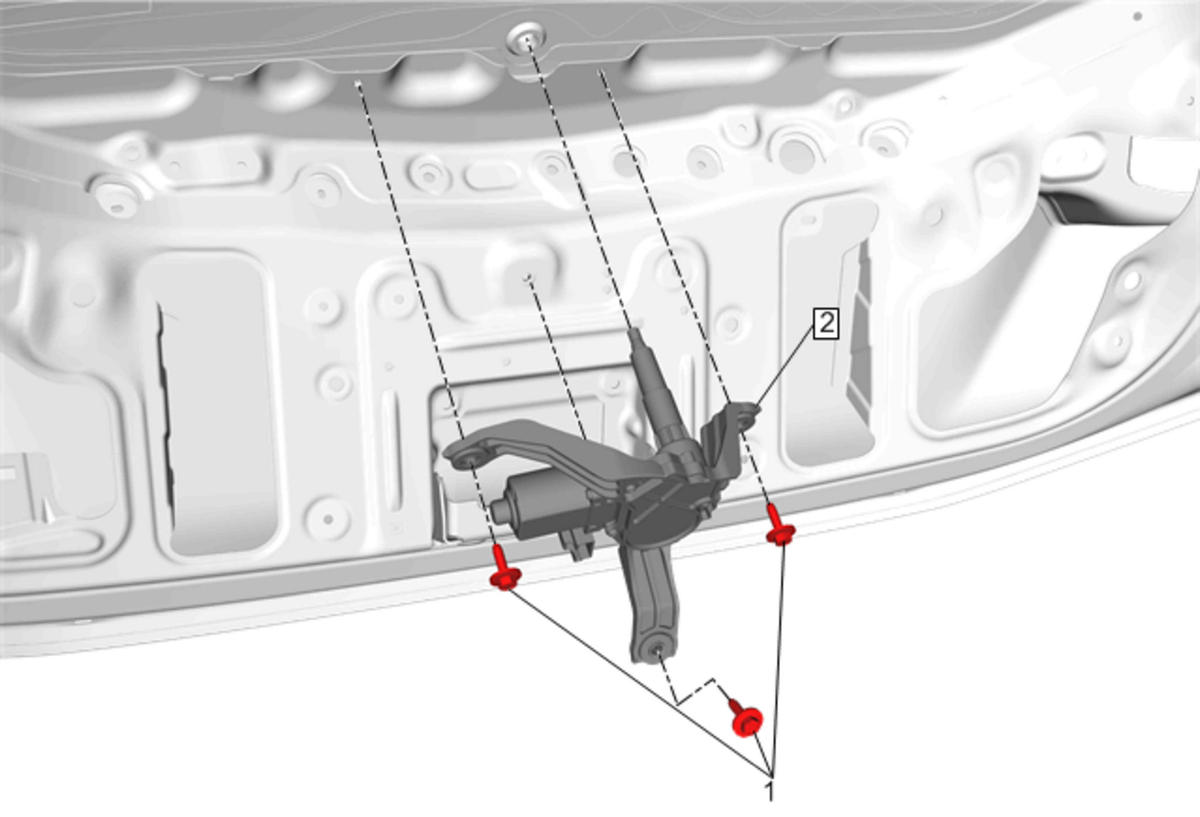

- Rear Window Wiper Motor - Remove - Rear Window Wiper Motor Replacement

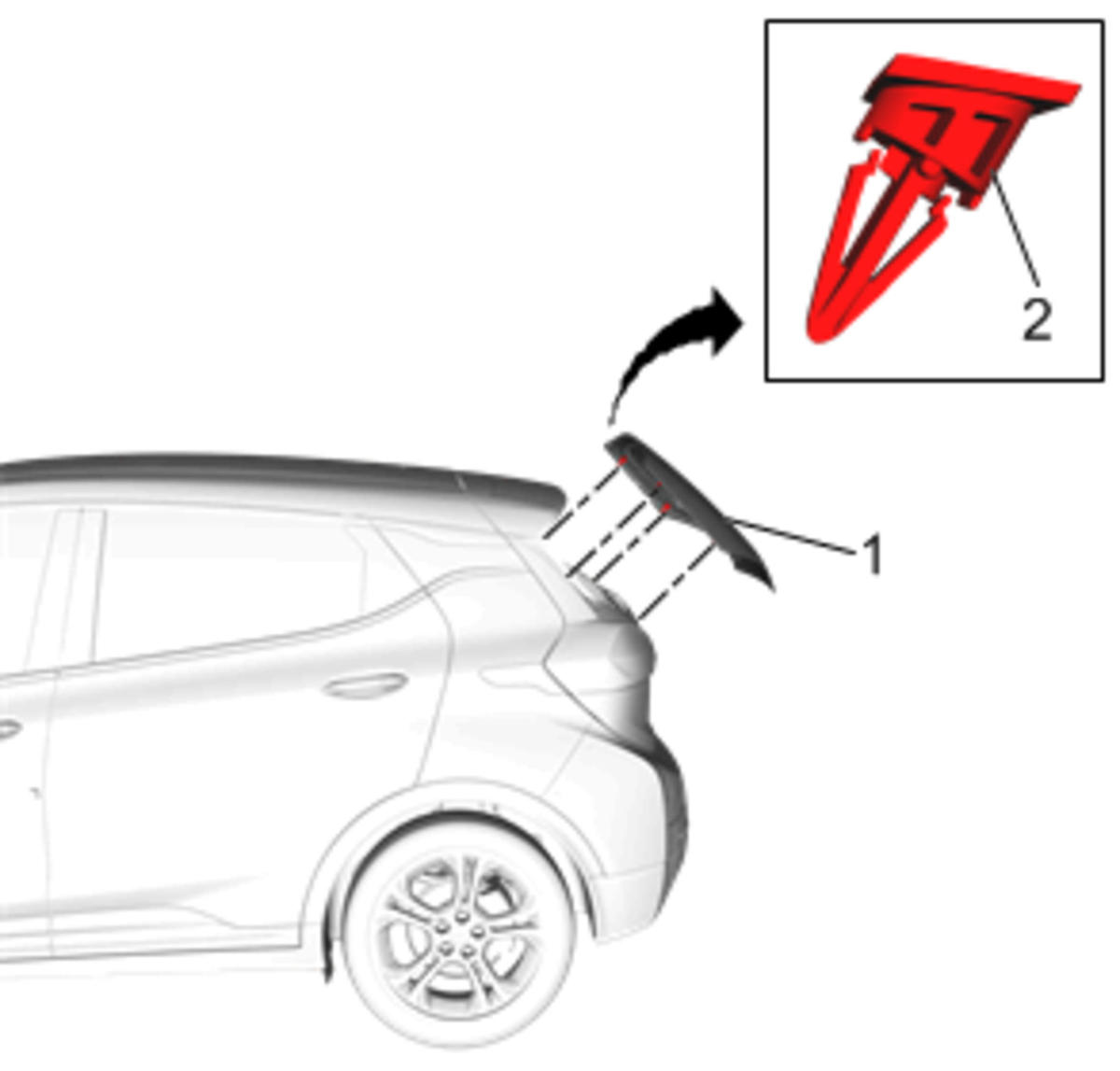

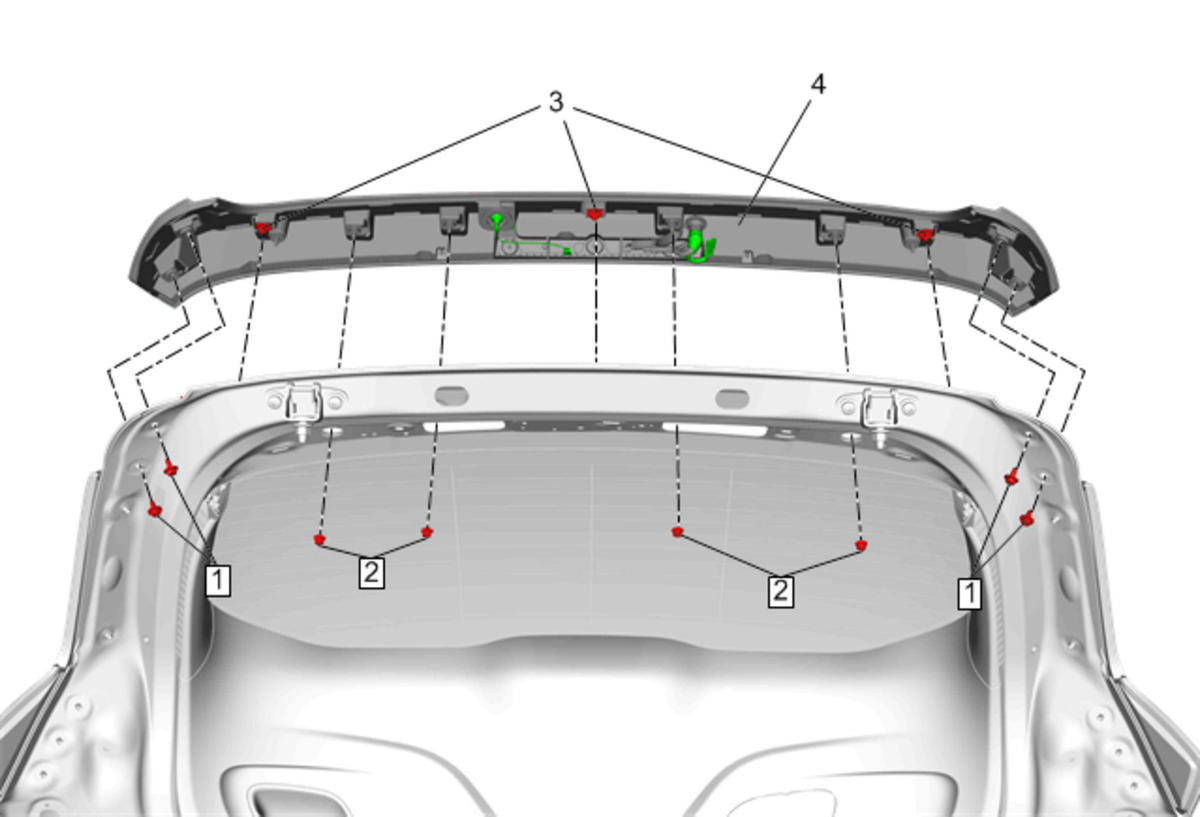

- Rear End Spoiler - Remove - Rear End Spoiler Replacement

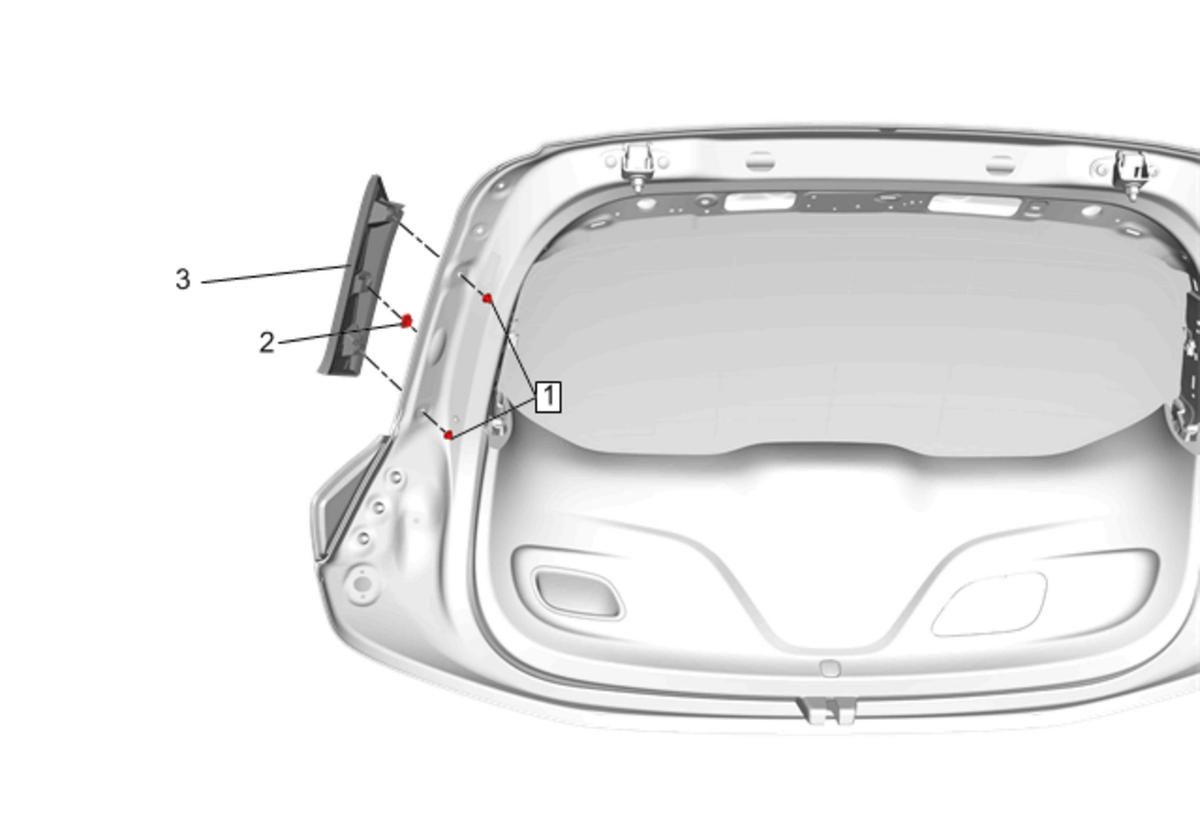

- Body Side Upper Rear Applique - Remove - Body Side Upper Rear Applique Replacement

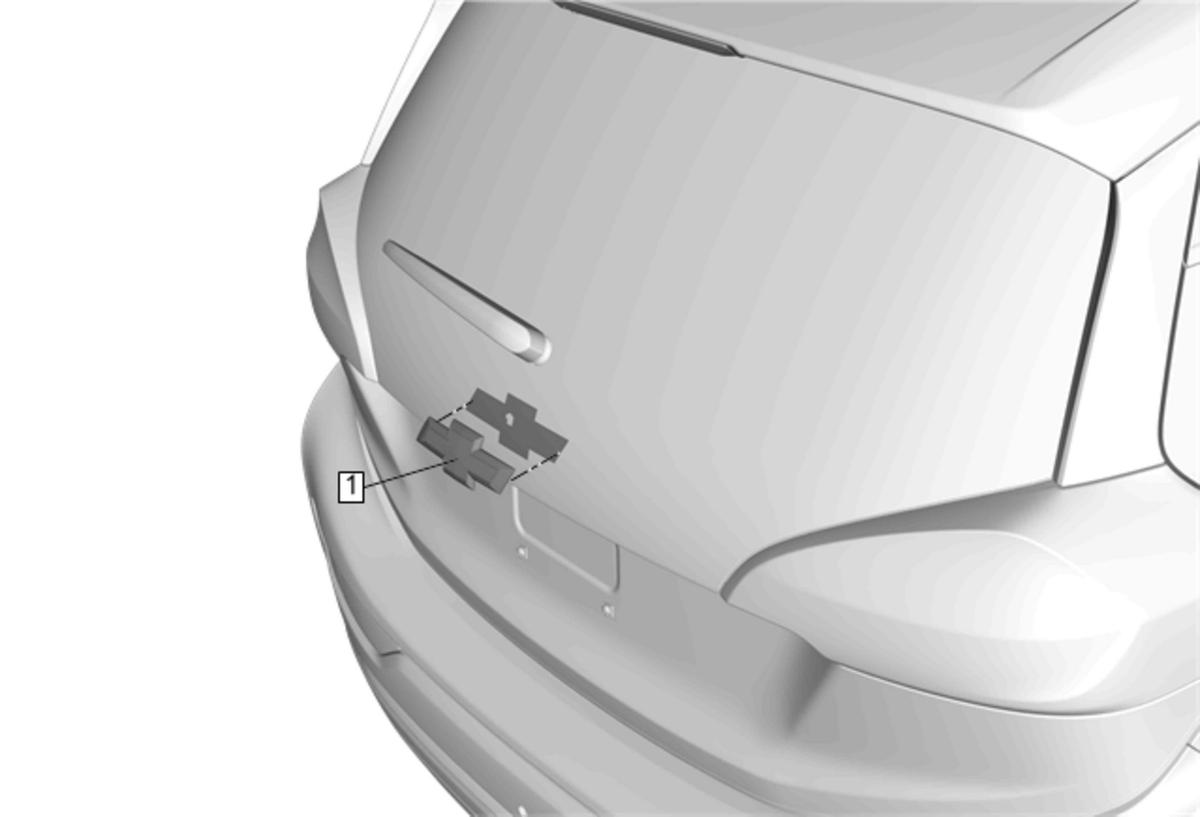

- Liftgate Emblem/Nameplate - Remove -
Liftgate Emblem/Nameplate Replacement (Emblem)Liftgate Emblem/Nameplate Replacement (Nameplate)
- Disconnect the rear window grid electrical connectors.
- Cover to protect the following parts from broken glass:
- Seats and carpeting
- Using the appropriate tool, carefully cut around the lace, start in the center working from side to side of the window to access the urethane adhesive bead, if equipped.
- This will allow the urethane adhesive to be separated from the window.
- Leave a base of urethane on the pinchweld flange.
- The only suitable lubrication is clear water.
- BO-24402-A Glass Sealant Remover (Cold Knife).
- BO-39032 Stationary Glass Removal Tool, or equivalent in order to remove the window.
- With the aid of an assistant lift the rear window (1) and locating pin (2) from vehicle.
WARNING:
If a window is cracked but still intact, crisscross the window with masking tape in order to reduce the risk of damage or personal injury.
NOTE:
Before cutting out a stationary window, apply a double layer of masking tape around the perimeter of the painted surfaces and inner trim.
WARNING:
If broken glass falls into the defroster outlets, it can be blown into the passenger compartment and cause personal injury.
WARNING:
Refer to Glass and Sheet Metal Handling Warning .
NOTE:
Keep the cutting edge of the tool against the window.
