Outside Rearview Mirror Replacement

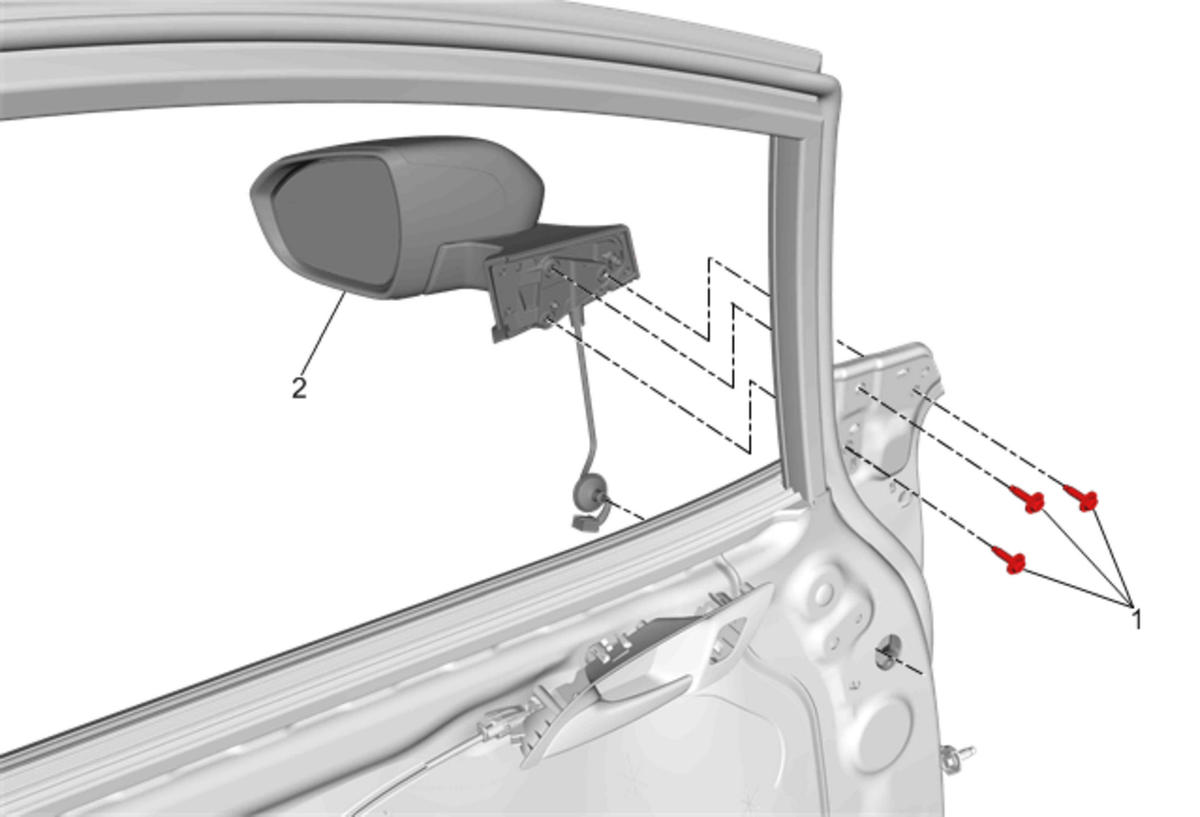

Fig 1: Outside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Front Side Door Trim Replacement Front Side Door Upper Trim Panel Replacement
1	Outside Rearview Mirror Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
2	Outside Rearview Mirror Procedure Disconnect the electrical connector. Release the mirror harness grommet and route the harness through the doors while removing the mirror.

Callout

Component Name

Preliminary Procedures

Outside Rearview Mirror Fastener (Qty: 3)

CAUTION:

Tighten
9 N.m (80 lb in)

Outside Rearview Mirror

Procedure

Disconnect the electrical connector.
Release the mirror harness grommet and route the harness through the doors while removing the mirror.
