Installation Procedure

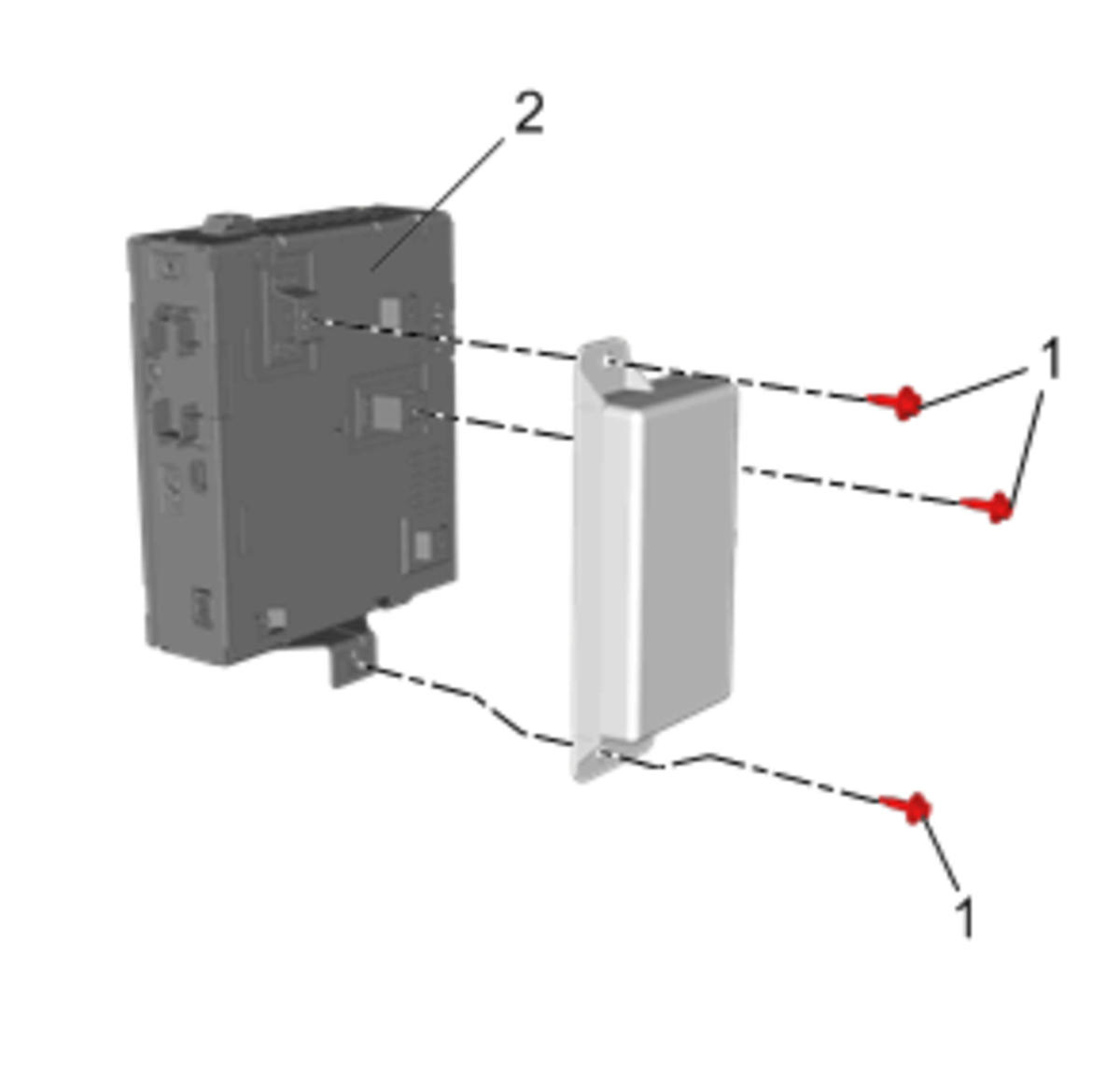

    Fig 1: Radio Assembly And Bolts
    GM4537385Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution

  1. Install Communication Interface Module Battery @ Radio Assembly (2)
  2. Install and tighten Radio Assembly Bolts (1) (Qty: 3) to 2.5 N.m (22 lb in)

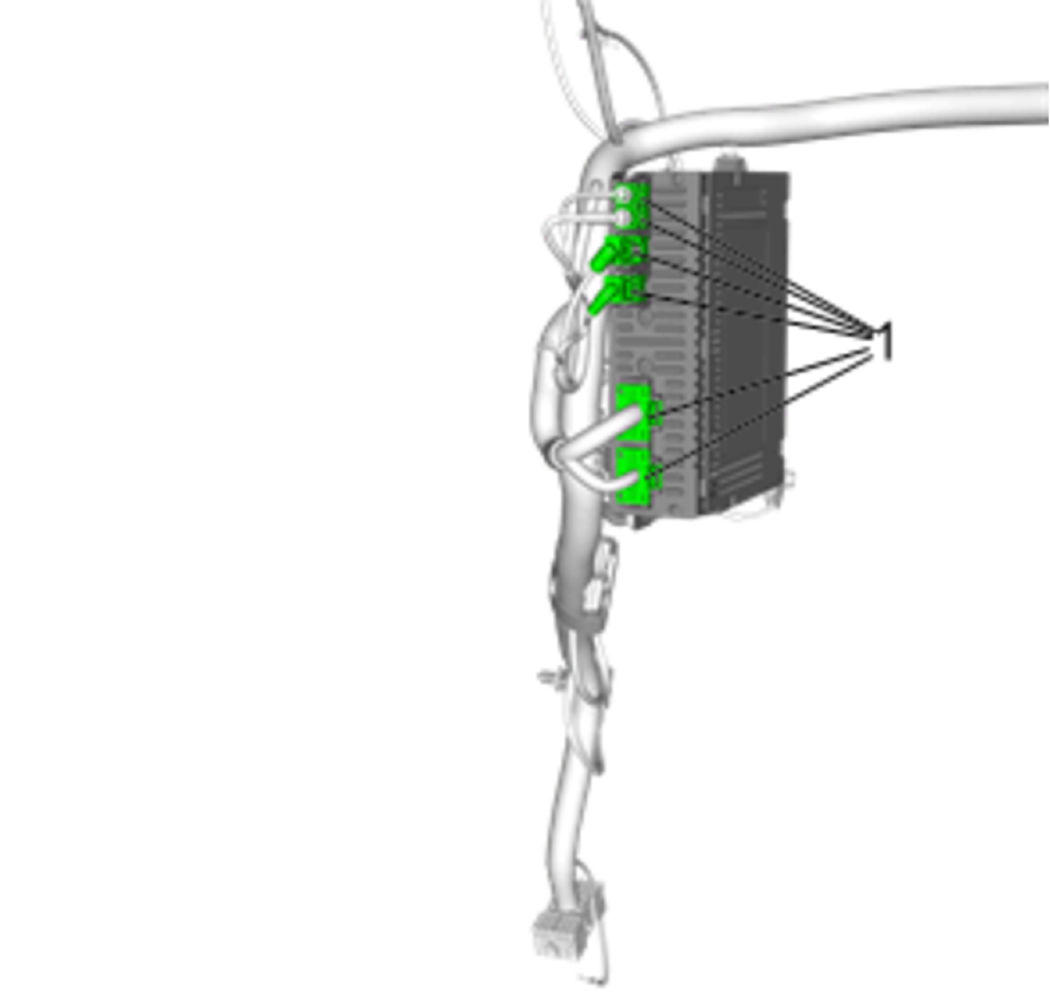

    3. Fig 2: Radio Assembly Connectors
    GM4648128Courtesy of GENERAL MOTORS COMPANY
  3. Connect the electrical connectors. (1)
  4. Attach the wiring harness securing clips.

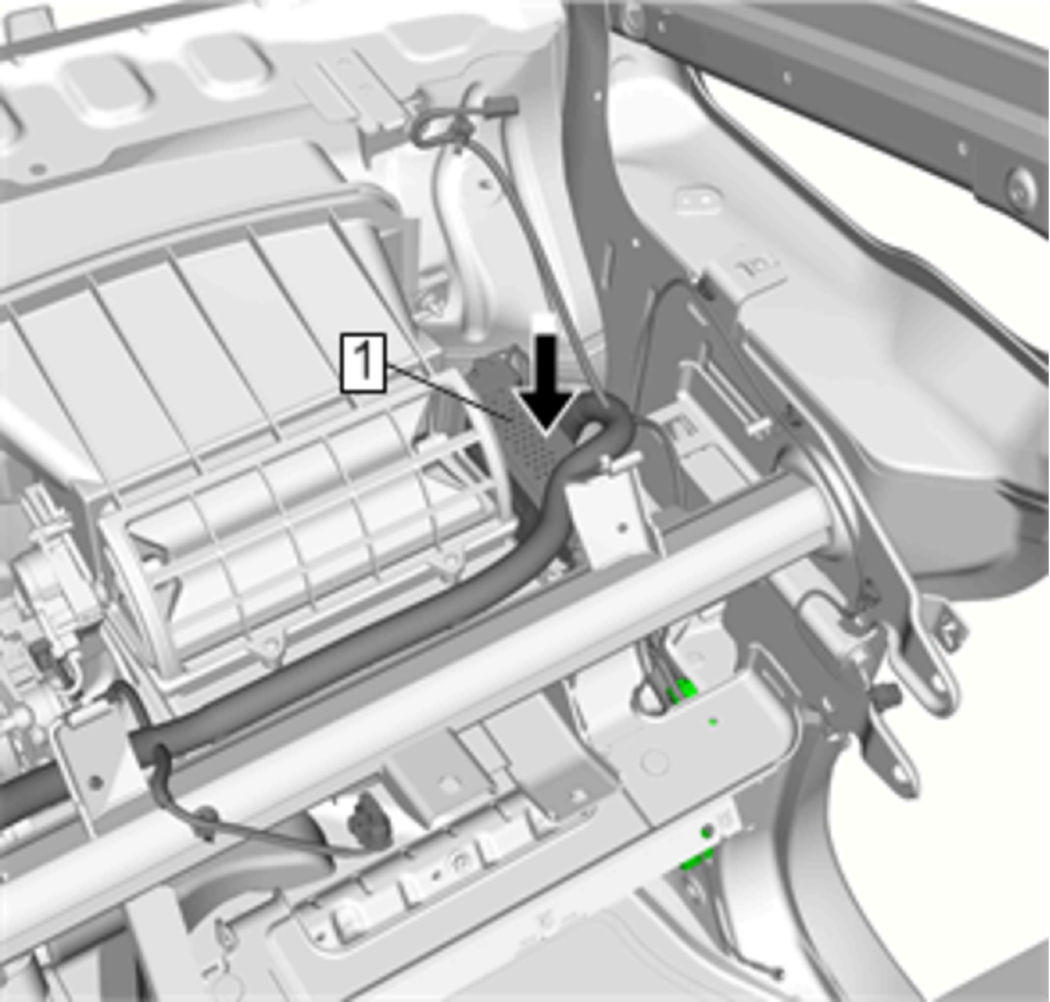

    5. Fig 3: Radio Module Assembly
    GM4648156Courtesy of GENERAL MOTORS COMPANY
  5. Position the radio module (1) and harness assembly into the bracket.

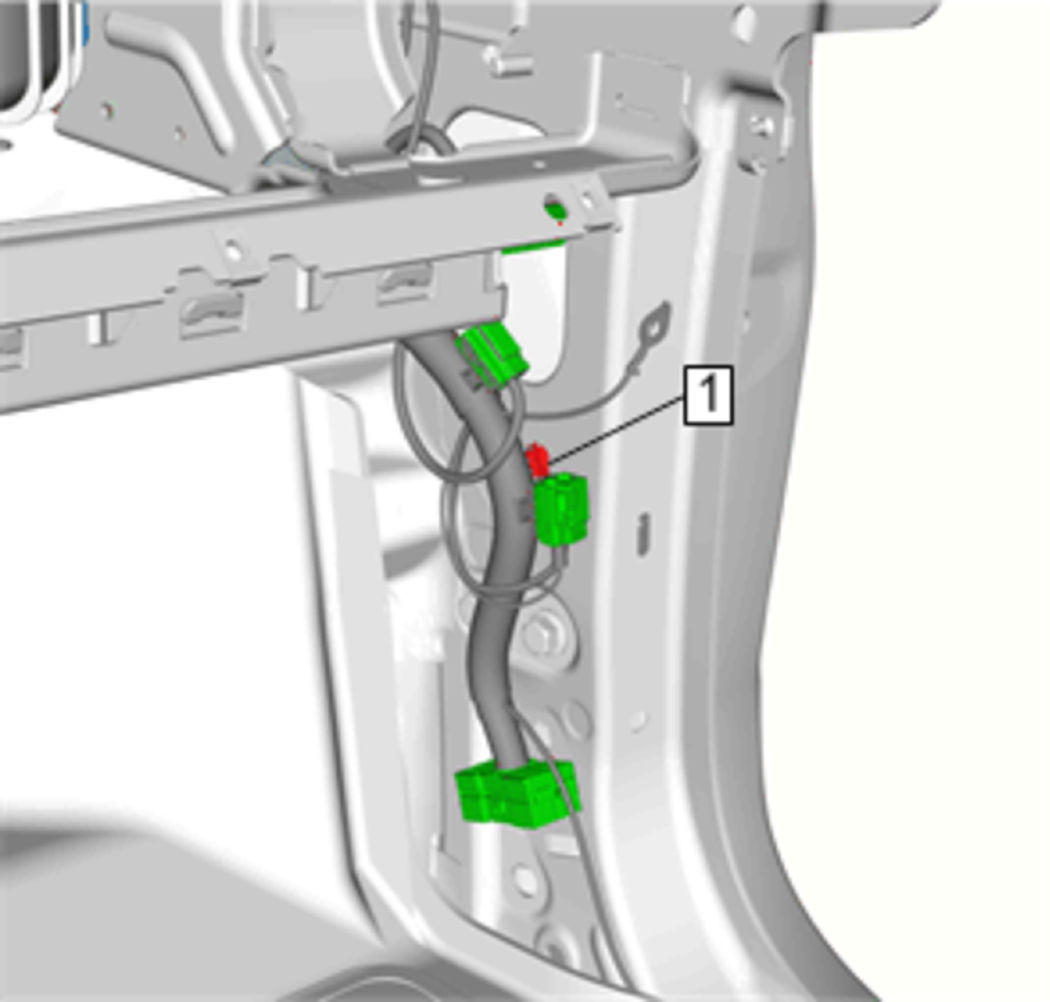

    6. Fig 4: Harness Retainer
    GM4648126Courtesy of GENERAL MOTORS COMPANY
  6. Clip the harness retainer (1).

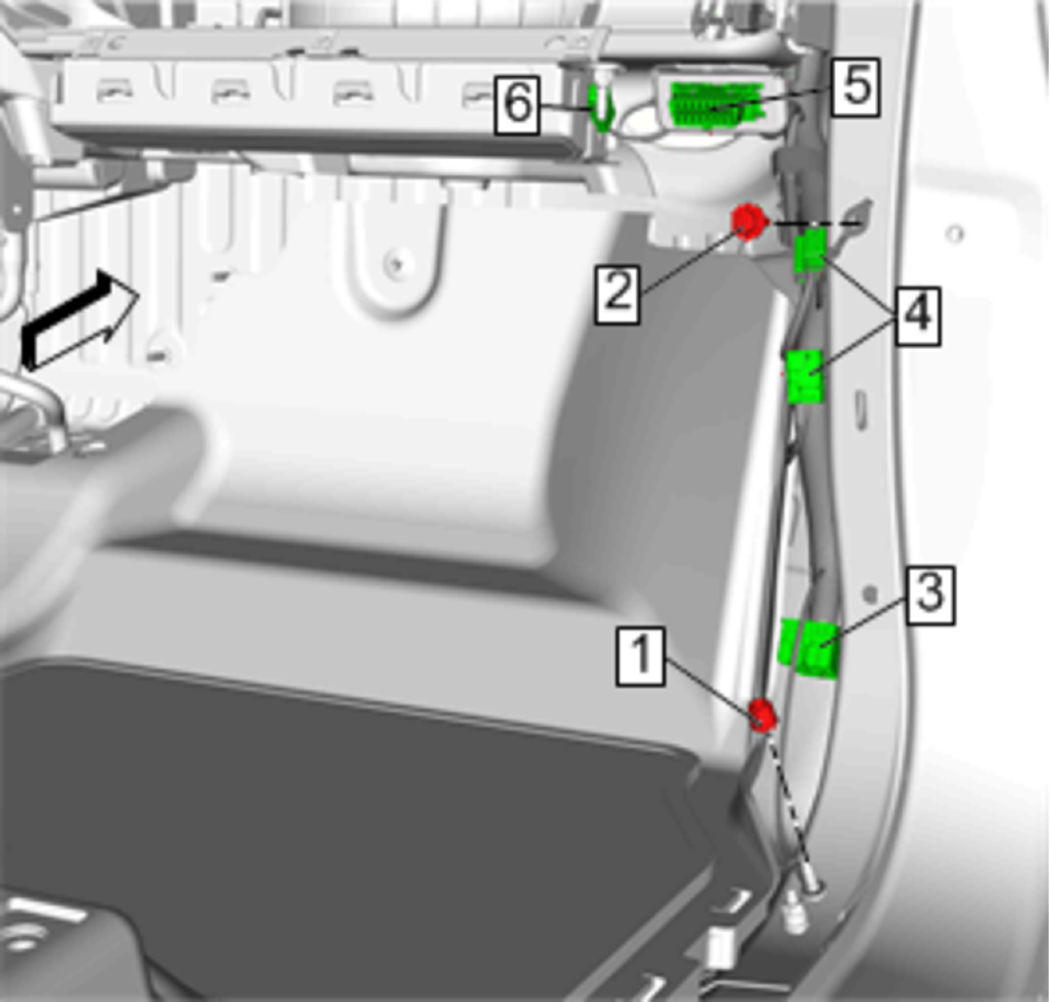

    7. Fig 5: Ground Nut, Bolt And Connectors
    GM4648125Courtesy of GENERAL MOTORS COMPANY
  7. Install the ground nut (1) and ground wire. Tighten the fastener to 9 N.m (80 lb in).
  8. Install the ground bolt (2) and ground wire. Tighten the fastener to 9 N.m (80 lb in).
  9. Clip and Connect the I/P main harness connector (3).
  10. Connect the coax antenna connectors (4).
  11. Clip the passenger side DLC connector (5).
  12. Connect the passenger side airbag connector (6).

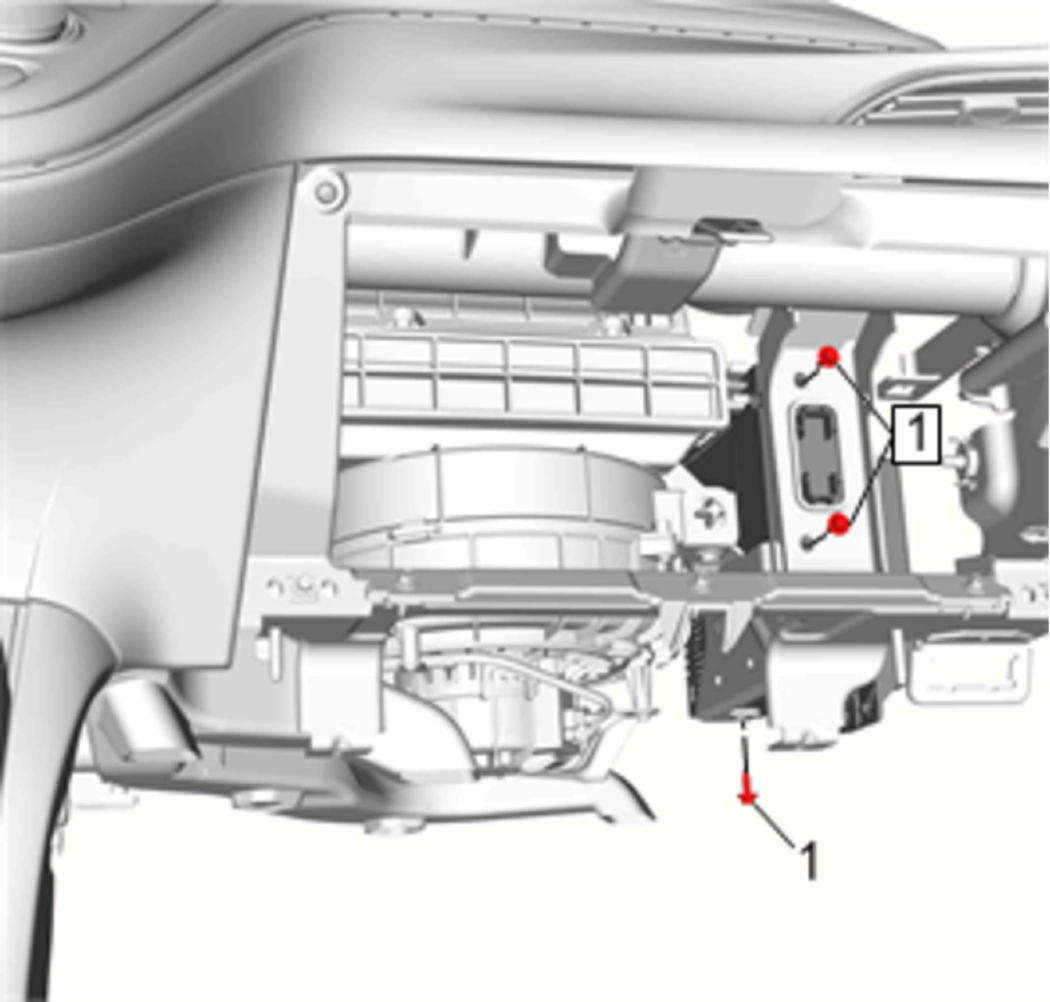

    13. Fig 6: Radio Assembly Bolts
    GM4537382Courtesy of GENERAL MOTORS COMPANY
  13. Install and tighten Radio Assembly Bolts (1) to 2.5 N.m (22 lb in)

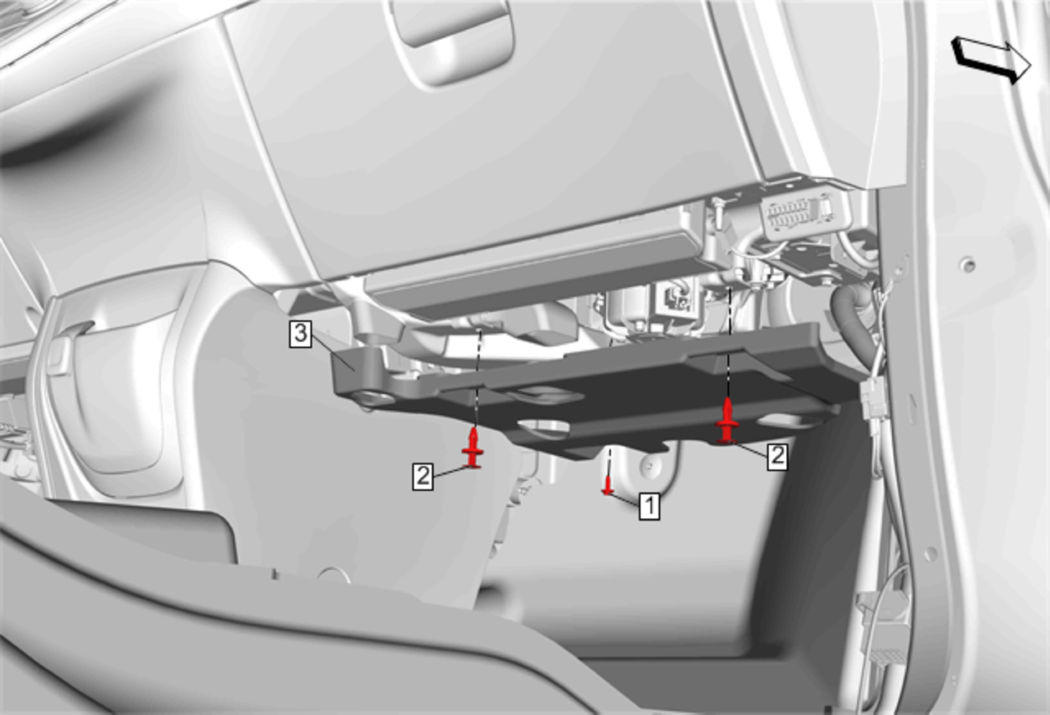

    14. Fig 7: Instrument Panel Lower Trim Panel Insulator
    GM4533275Courtesy of GENERAL MOTORS COMPANY
  14. Install Instrument Panel Lower Trim Panel Insulator (3). Refer to Instrument Panel Lower Trim Panel Insulator Replacement

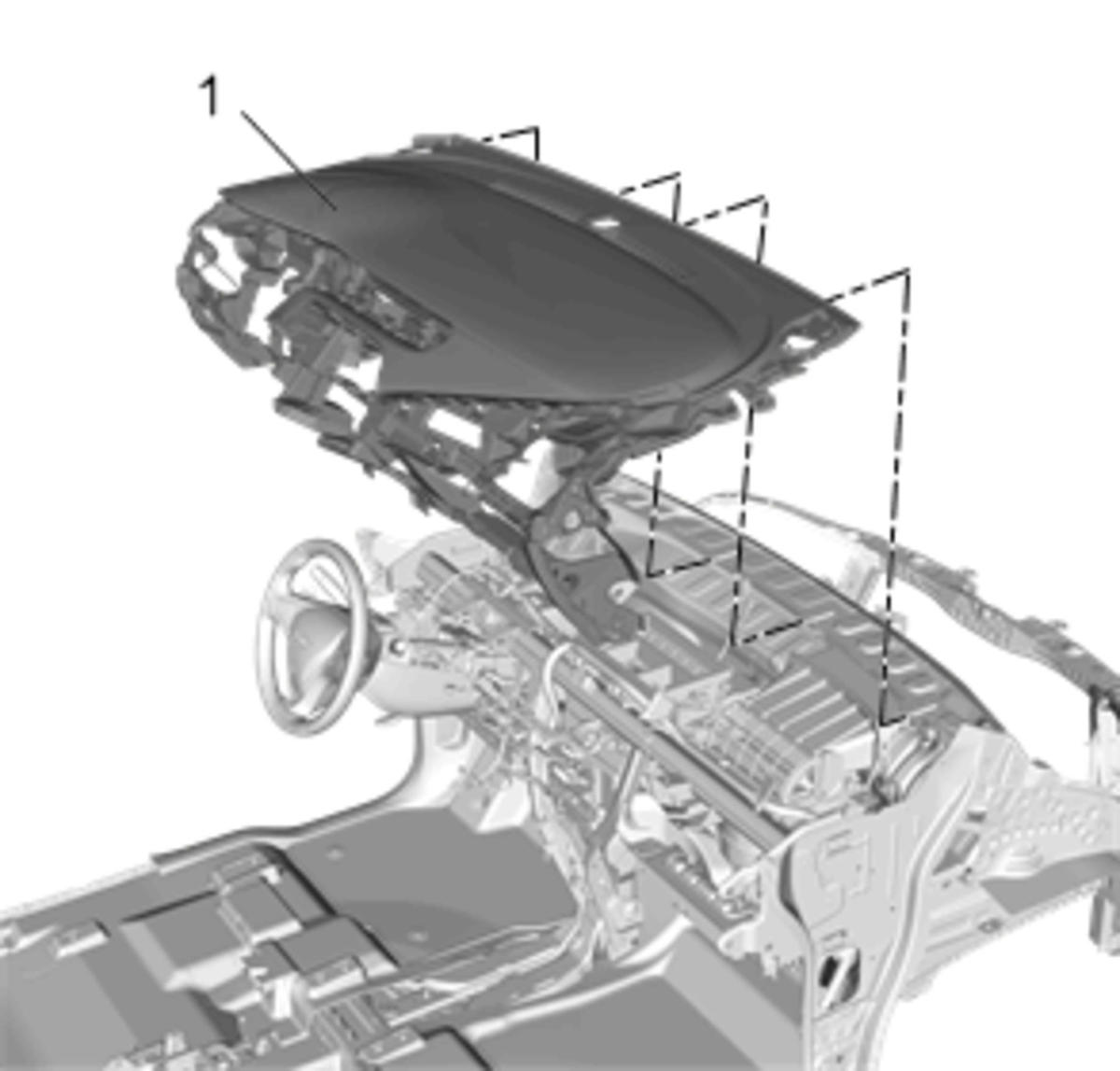

    15. Fig 8: Instrument Panel Assembly
    GM4542638Courtesy of GENERAL MOTORS COMPANY
  15. Install Instrument Panel Assembly (1). Refer to Instrument Panel Assembly Replacement
  16. Connect Battery Negative Cable. Refer to Battery Negative Cable Disconnection and Connection
